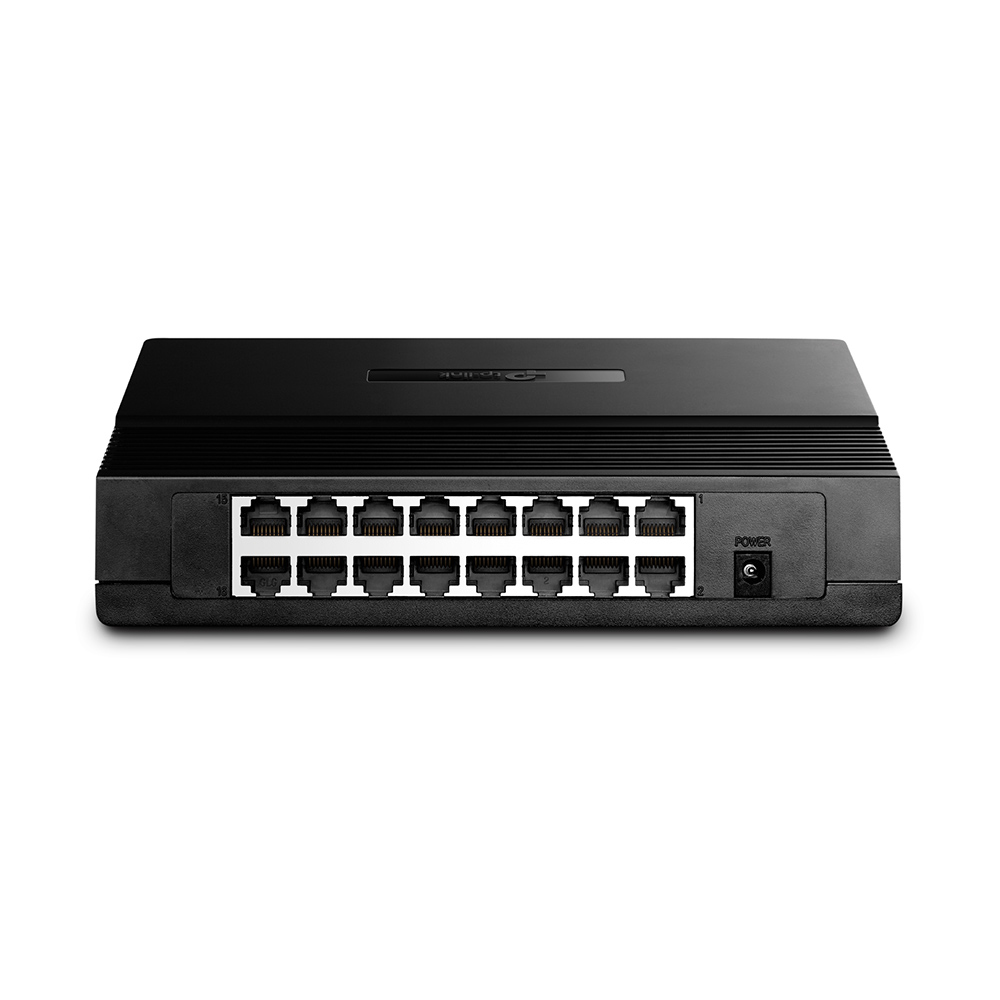

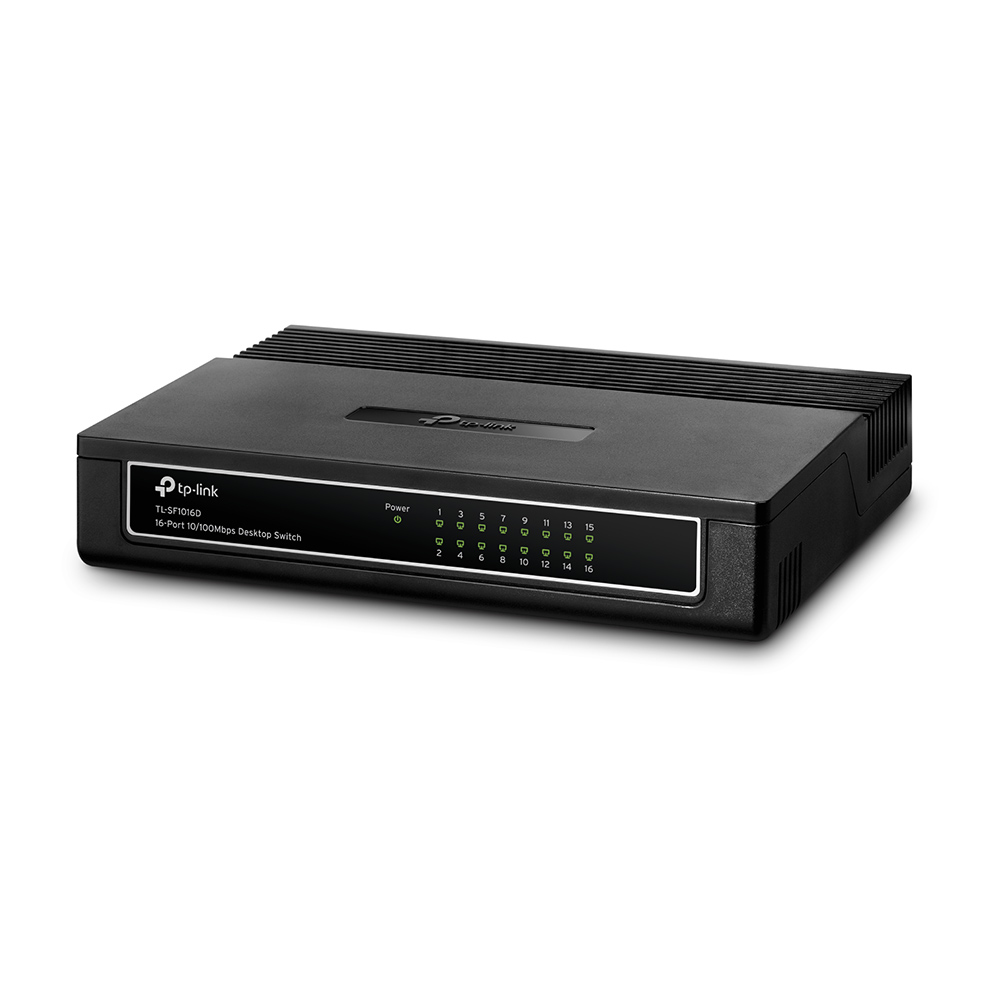

TP-Link 16-Port 10/100Mbps Desktop Switch
Model TL-SF1016DPart no. TL-SF1016D(UN)EAN 1210002616447
50 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Networking standardsIEEE 802.3u, IEEE 802.3x
- MAC address table2000 entries
- Rack mountingYes
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- MAC address table
- 2000 entries
- Rack mounting
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SF1016D
- Part numbers
- TL-SF1016D(UN), TL-SF1016D V7, TL-SF1016D
- EAN / UPC
- 1210002616447, 845973020293, 6935364020293, 041435197378 +13 more
- Also known as
- TP-Link 16-Port 10/100Mbps Desktop Switch
Specifications
50 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 3.2 Gbit/s |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (max) | 3.23 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 11.01 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 142 mm |
| Height | 40 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package type | Box |
| Package width | 223 mm |
| Package depth | 285 mm |
| Package height | 68 mm |
| Package weight | 674 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Compare TP-Link 16-Port 10/100Mbps Desktop Switch
Compare any products- TP-Link 16-Port 10/100Mbps Desktop Switch vsTP-Link 5-Port Gigabit Desktop Network SwitchCompare specs

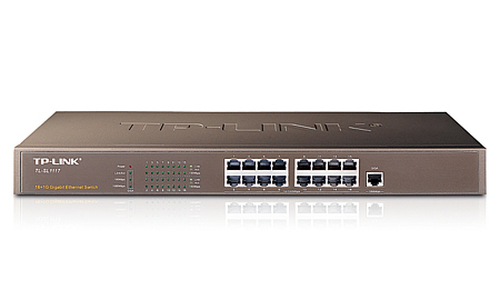

- TP-Link 16-Port 10/100Mbps Desktop Switch vsTP-Link 16-Port 10/100Mbps + 1-Port Gigabit SwitchCompare specs
- TP-Link 16-Port 10/100Mbps Desktop Switch vsTP-Link 8-Port 10/100Mbps Desktop Network SwitchCompare specs

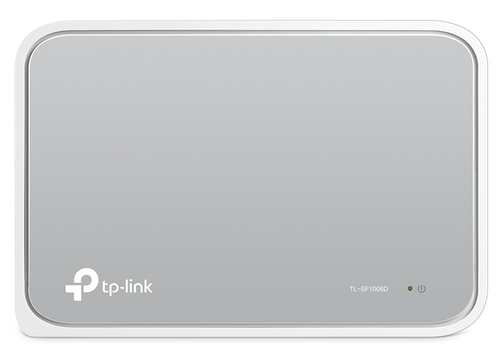

- TP-Link 16-Port 10/100Mbps Desktop Switch vsTP-Link 5-Port 10/100Mbps Desktop Network SwitchCompare specs

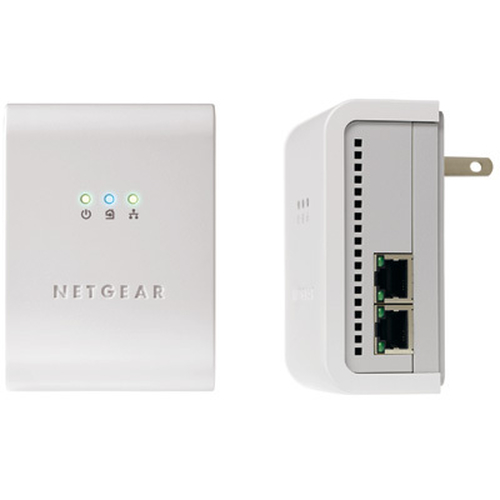

- TP-Link 16-Port 10/100Mbps Desktop Switch vsNETGEAR PowerLine Ethernet Switch KitCompare specs

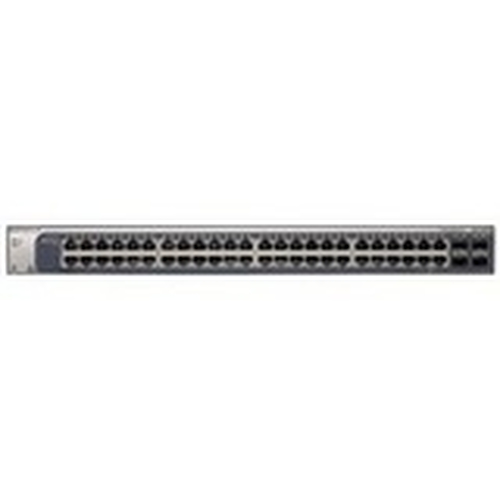

- TP-Link 16-Port 10/100Mbps Desktop Switch vsNETGEAR GS748TR-100NAS network switch ManagedCompare specs

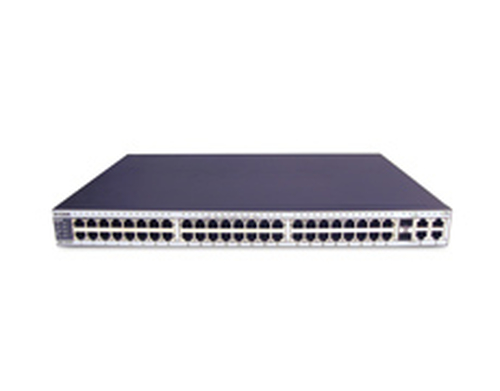

- TP-Link 16-Port 10/100Mbps Desktop Switch vsD-Link Web Smart 48-Port 10/100 PoE Switch, 4 Gigabit Copper Ports + 2 Combo SFP w/ ACL and RPS OptionCompare specs

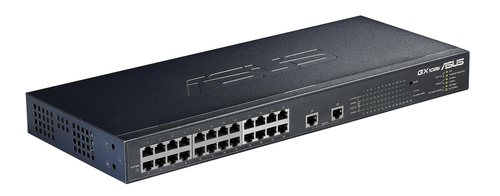

- TP-Link 16-Port 10/100Mbps Desktop Switch vsASUS GX1026i Unmanaged BlackCompare specs
