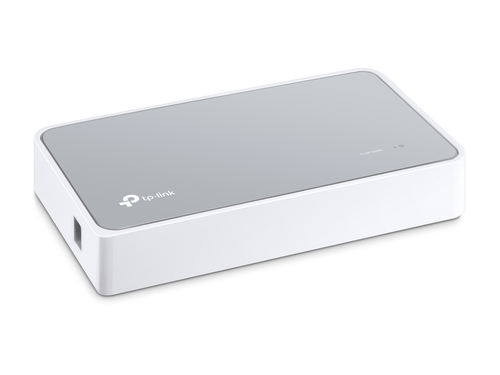

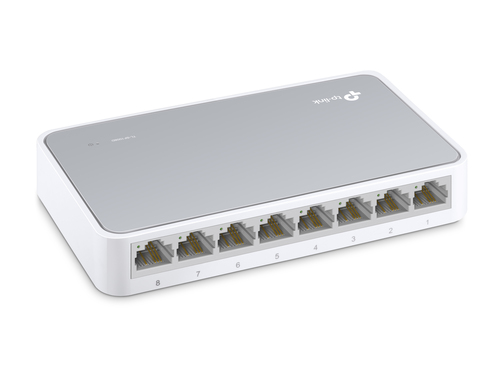

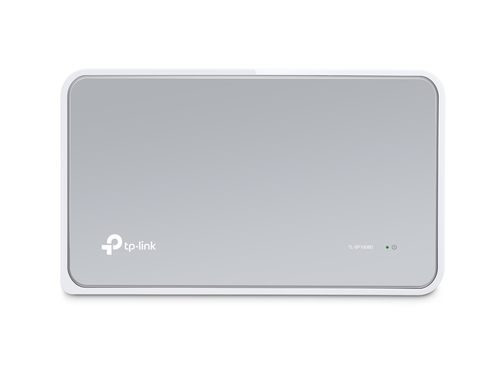

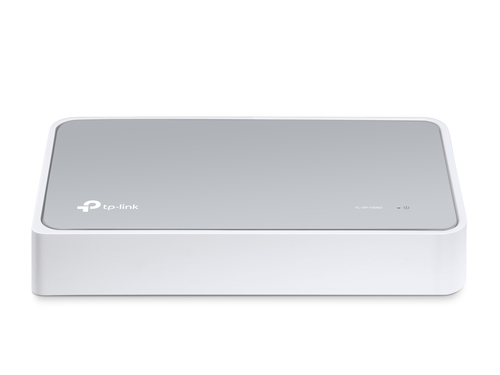

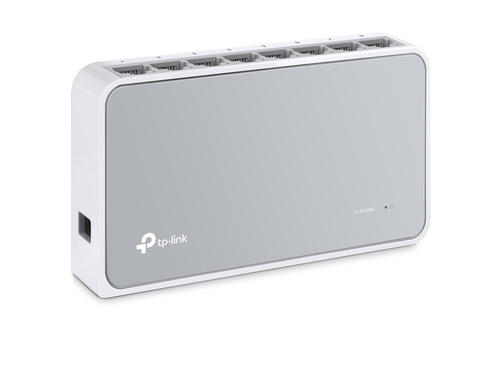

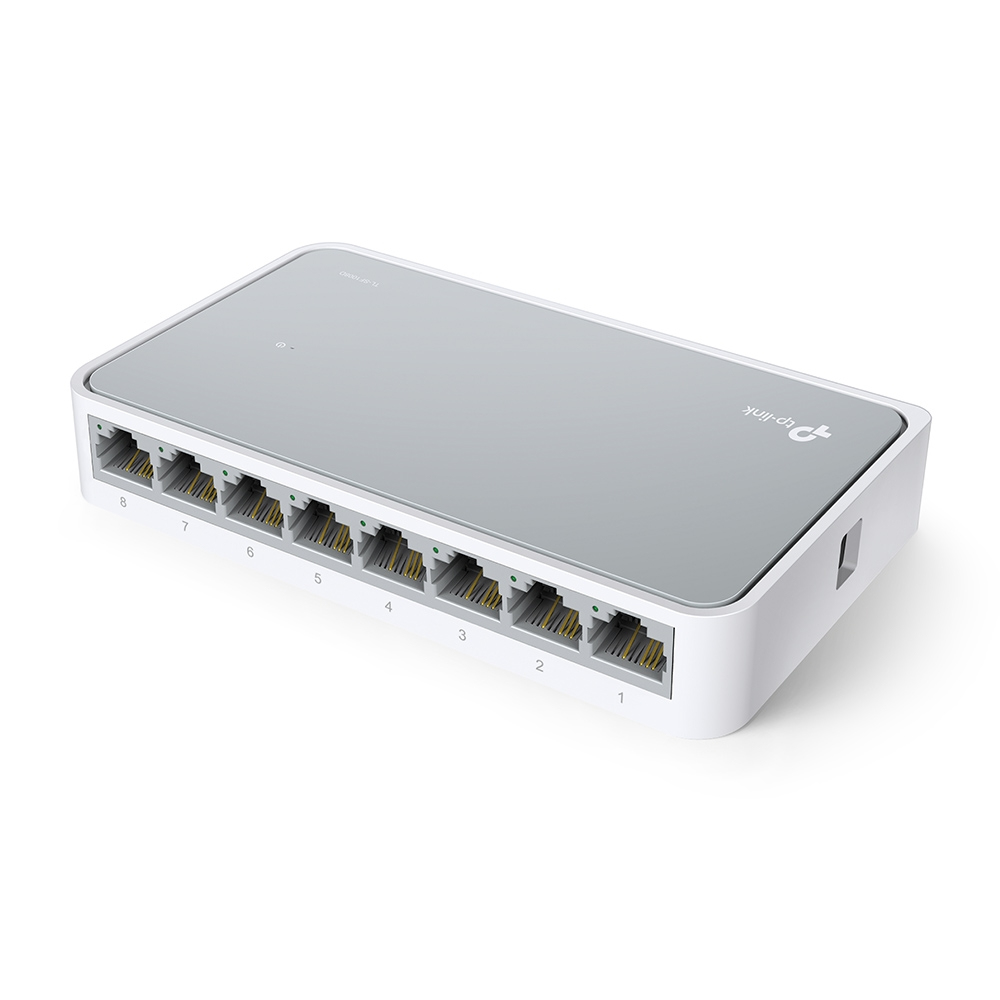

8-Port 10/100Mbps Desktop Network Switch
Model TL-SF1008DPart no. TL-SF1008D(UN)EAN 809385659861
45 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SF1008D
- Part numbers
- TL-SF1008D(UN), TL-SF1008D V1, TL-SF1008D V10, TL-SF1008D V11, TL-SF1008D
- EAN / UPC
- 809385659861, 080850499018, 587437683643, 696726100812 +27 more
- Also known as
- TP-Link 8-Port 10/100Mbps Desktop Network Switch
Specifications
45 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 2 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD, TCP/IP |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 2.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 87 x 27.5 mm |
| Connectivity technology | Wired |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 134 mm |
| Depth | 79 mm |
| Height | 23 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 139 mm |
| Package depth | 100 mm |
| Package height | 85 mm |
| Package weight | 240 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
