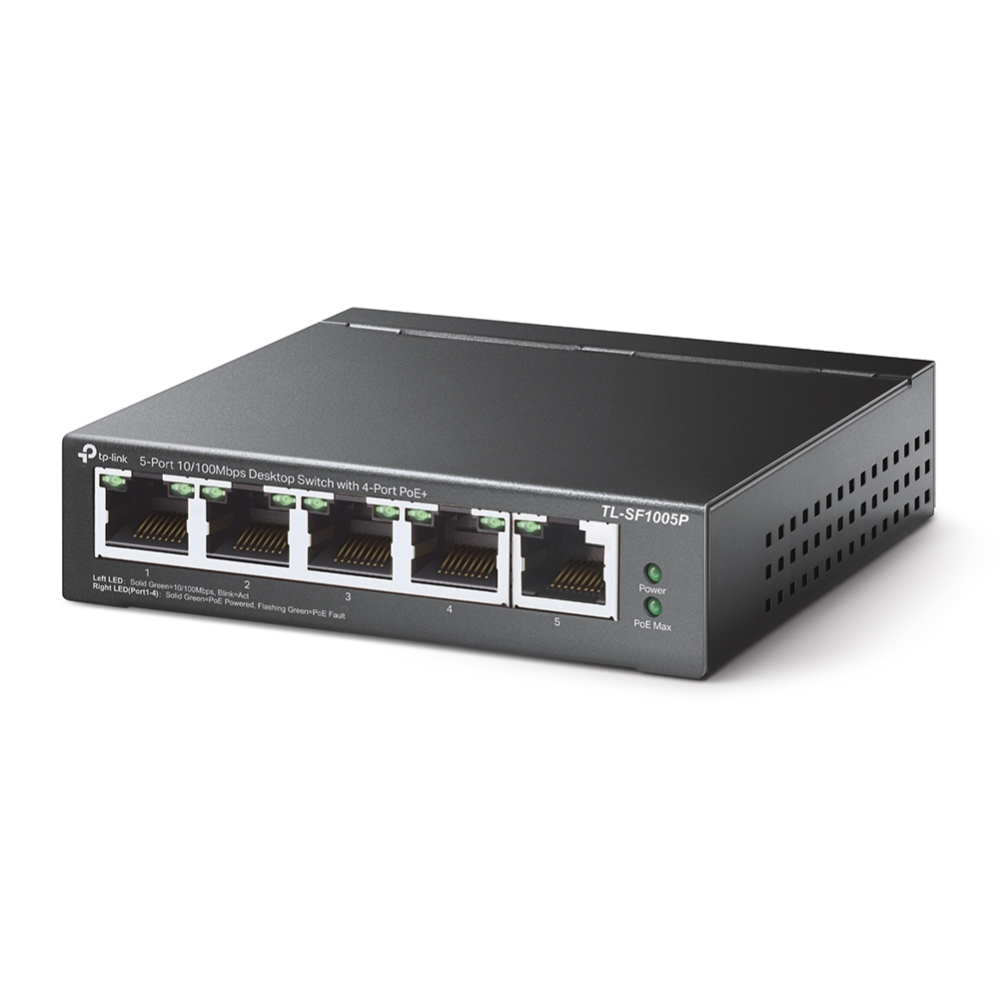

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port
Model TL-SF1005PPart no. TL-SF1005P(UN)EAN 1210002616300
56 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3af, IEEE 802.3x
- MAC address table2000 entries
- Rack mountingNo
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3af, IEEE 802.3x
- MAC address table
- 2000 entries
- Rack mounting
- No
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SF1005P
- Part numbers
- TL-SF1005P(UN), TL-SF1005P V1, TL-SF1005P
- EAN / UPC
- 1210002616300, 845973083199, 6935364083199, 6935364083205 +2 more
- Also known as
- TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port
Specifications
56 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.744 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum cable length | 100 m |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | No |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |

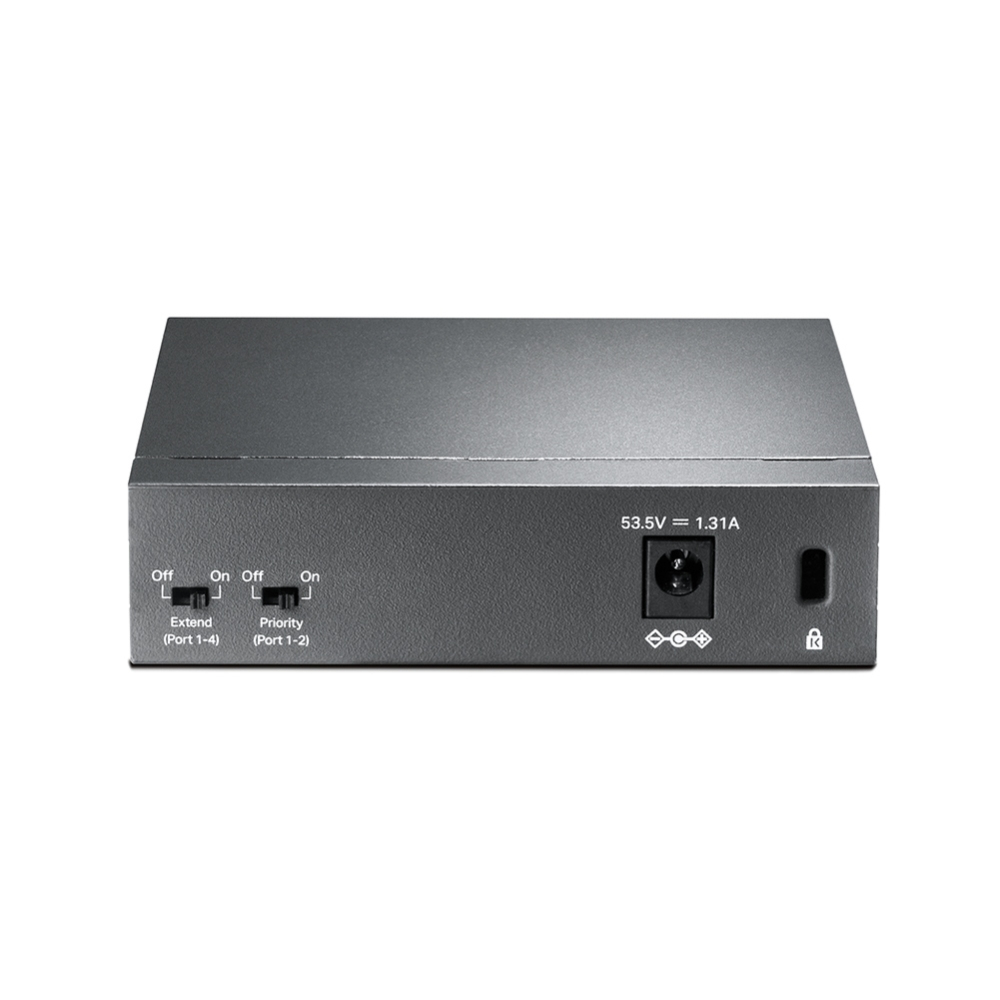

| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 74 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 67 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 252.34 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 760 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port
Compare any products- TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port vsTP-Link 5-Port Gigabit Desktop PoE Switch with 4-PortCompare specs
- TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port vsTP-Link T1500-28TC network switch Managed L2 Fast Ethernet (10/100) BlackCompare specs
- TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port vsTP-Link JetStream 52-Port Gigabit Stackable L3 Managed Network SwitchCompare specs

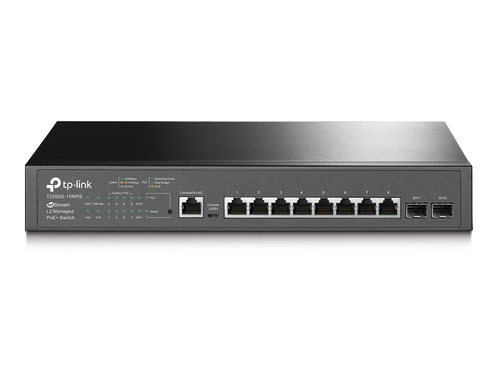

- TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port vsTP-Link JetStream T2500G-10MPSCompare specs
