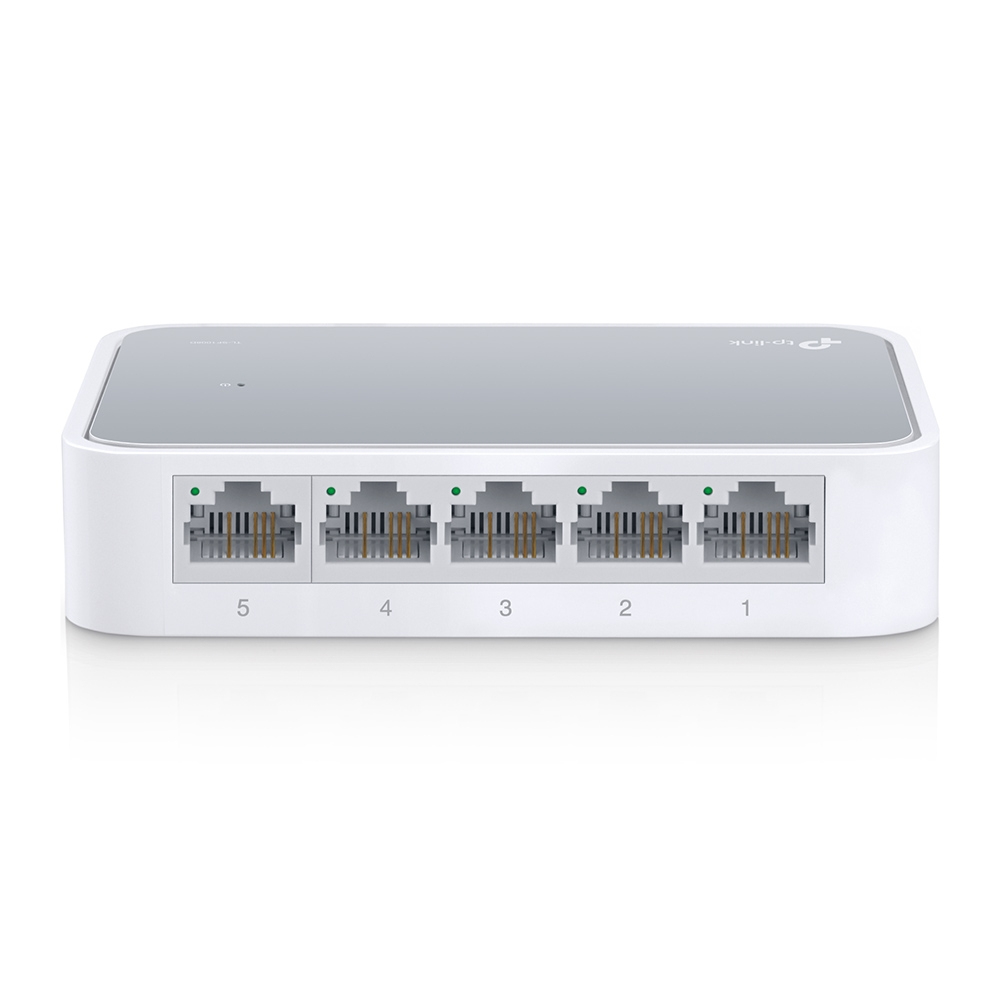

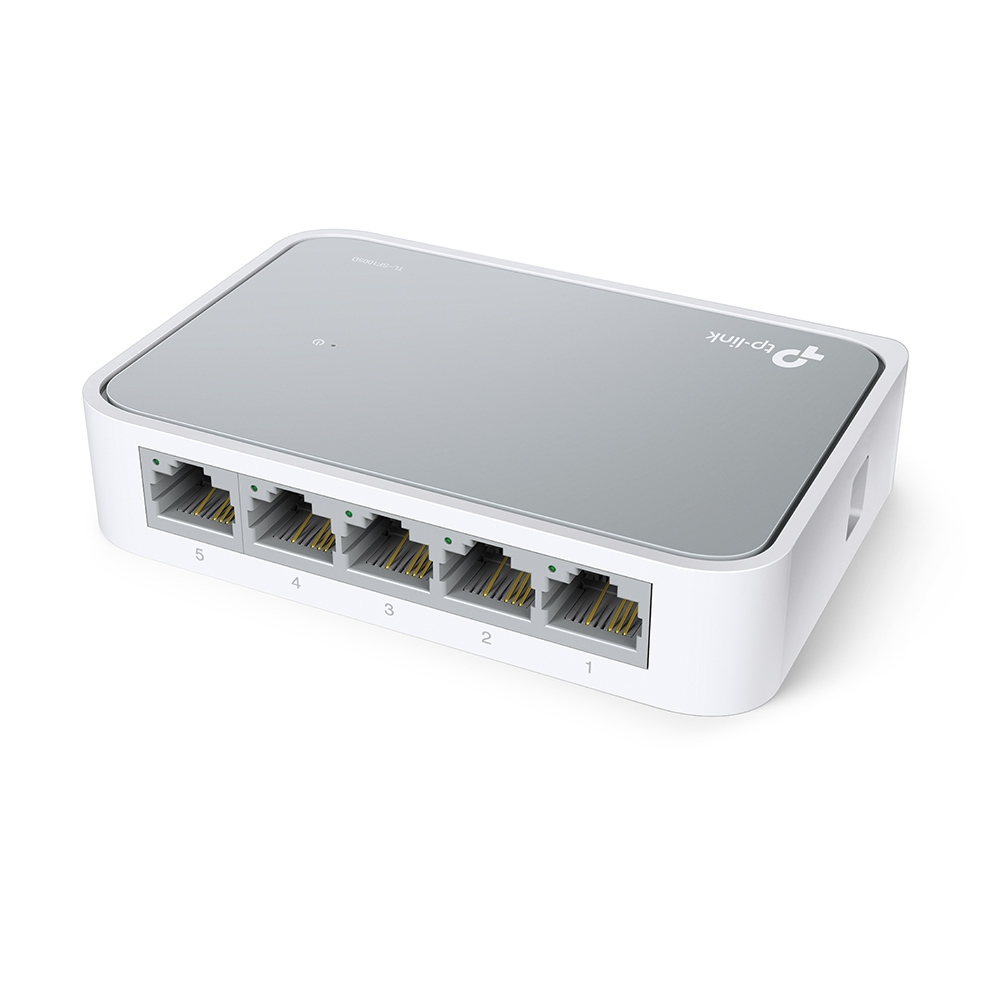

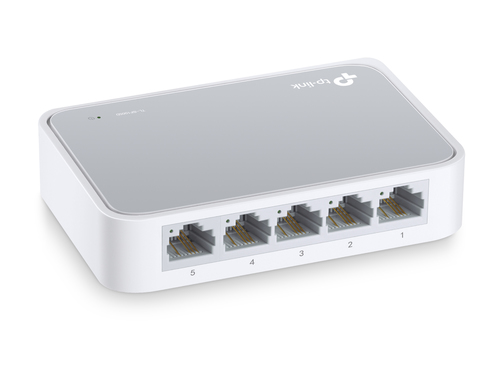

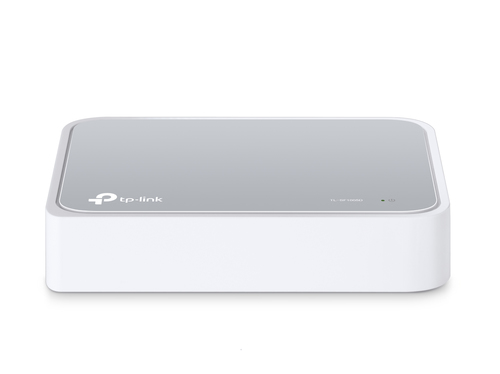

TP-Link 5-Port 10/100Mbps Desktop Network Switch

TP-Link 5-Port 10/100Mbps Desktop Network Switch

Model TL-SF1005DEAN 5052916493358

38 specifications
  • Speed0.1 Gbit/s
  • ColourWhite
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity5
  • Networking standardsIEEE 802.3u, IEEE 802.3x
  • MAC address table1000 entries
See all specifications

Overview

Speed
0.1 Gbit/s
Colour
White
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
5
Networking standards
IEEE 802.3u, IEEE 802.3x
MAC address table
1000 entries
Brand
TP-Link
Model
TL-SF1005D
Part numbers
TL-SF1005D, TL-SF1005D V1, TL-SF1005D V15
EAN / UPC
5052916493358, 000000059893, 031112826042, 084597302006 +19 more
Also known as
TP-Link 5-Port 10/100Mbps Desktop Network Switch

Specifications

38 specifications in 14 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology100BASE-TX, 10BASE-T
Full duplexYes
Auto MDI/MDI-XYes

Data transmission

MAC address table1000 entries
Supported data transfer rates10/100 Mbps
Switching capacity1 Gbit/s
Store-and-forwardYes
Maximum data transfer rate0.1 Gbit/s

Protocols

Supported network protocolsCSMA/CD, TCP/IP

Design

Rack mountingNo
StackableNo
Product colourWhite

Power

Power sourceDC
Power supply includedYes
Input current0.6 A
Input voltage5 V
Power consumption (max)1.48 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Connectivity LEDsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation6.38 BTU/h

Weight & dimensions

Width103.5 mm
Depth69.5 mm
Height22 mm

Packaging data

Package width108 mm
Package depth91 mm
Package height85 mm

Certificates

CertificationFCC, CE, RoHS

Logistics data

Harmonized System (HS) code85176990
