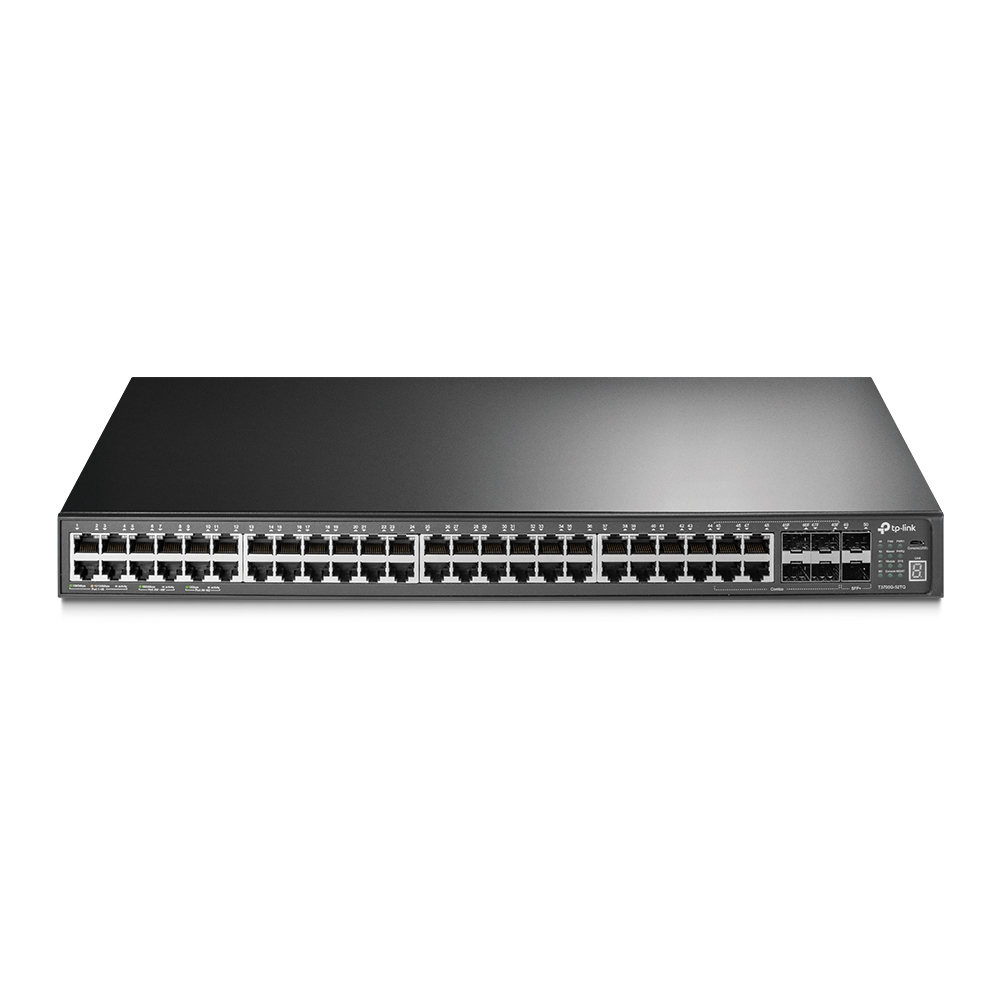

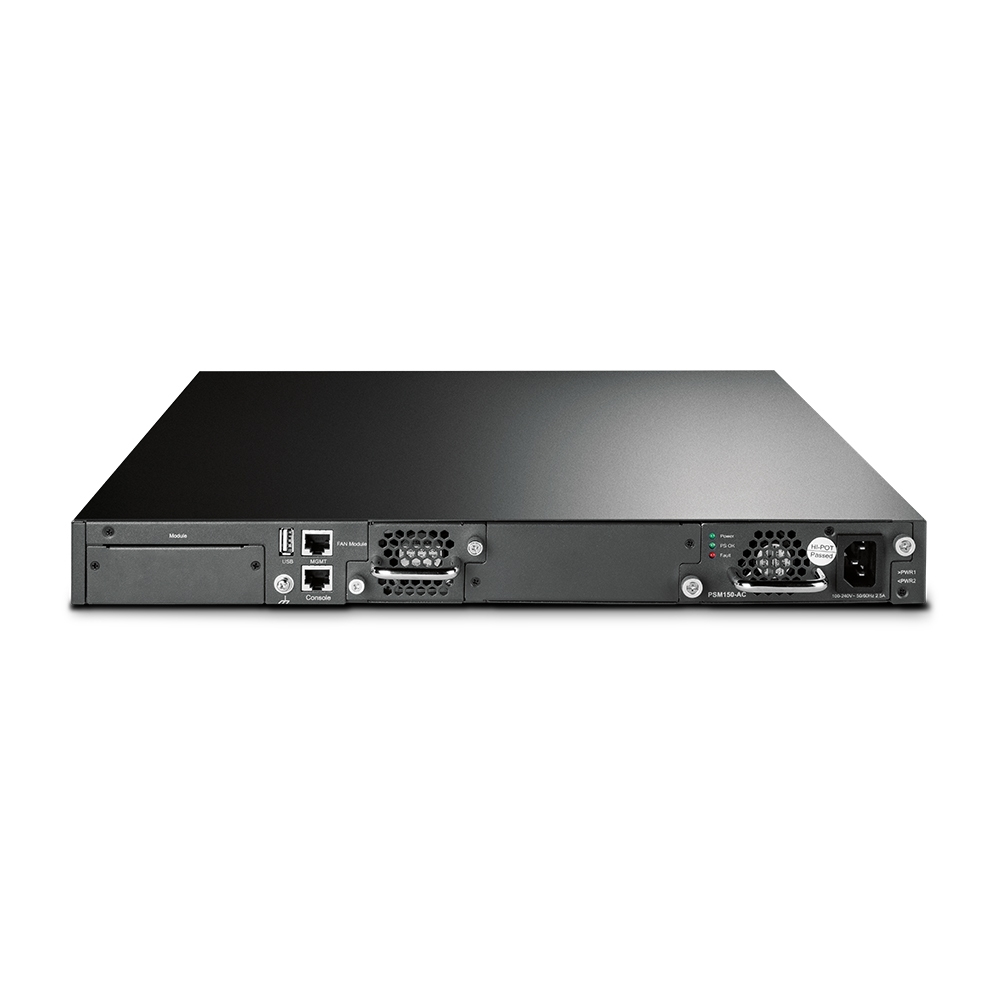

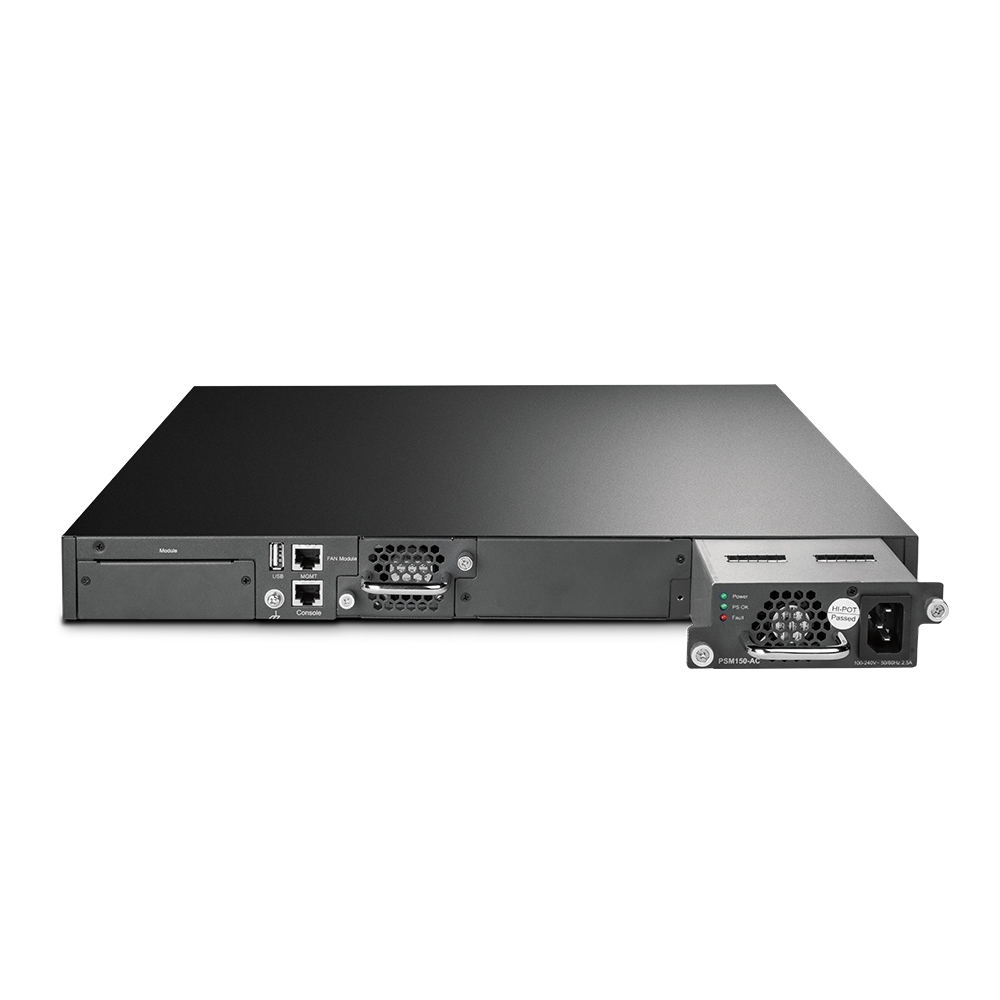

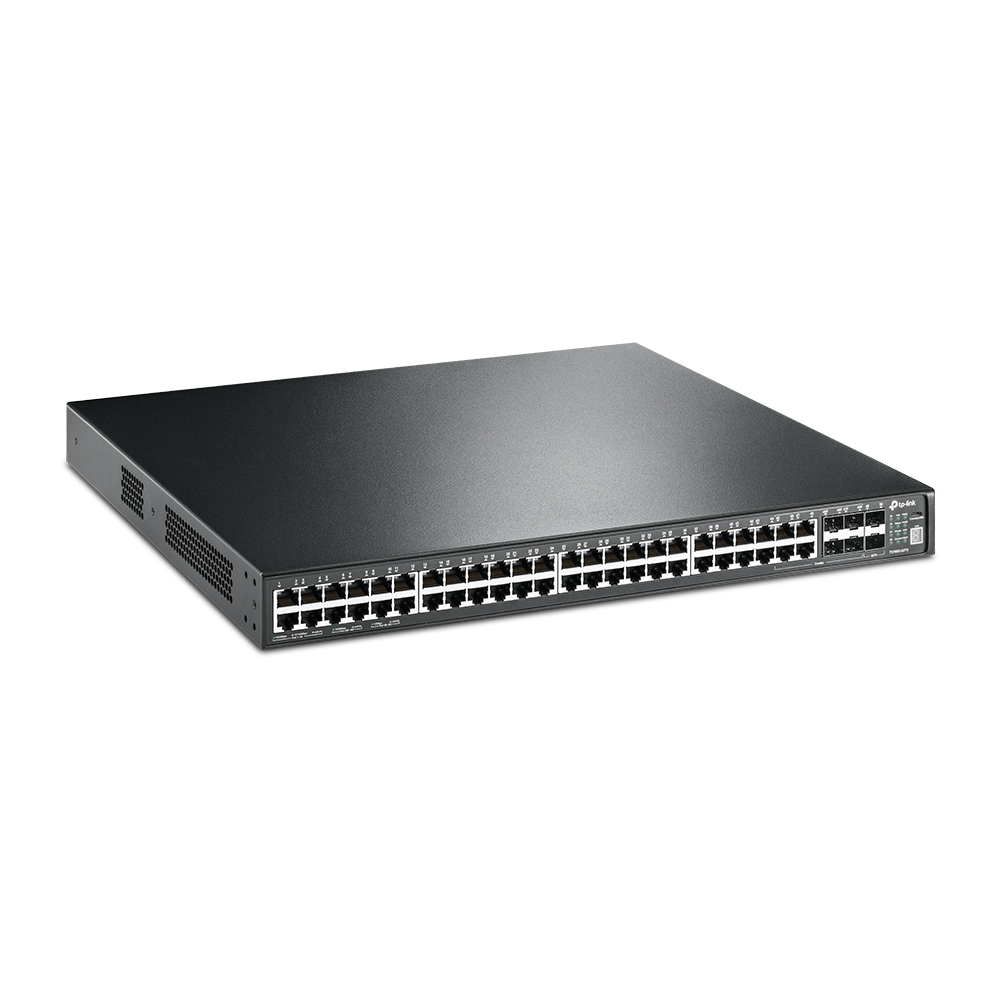

TP-Link JetStream 52-Port Gigabit Stackable L3 Managed Network Switch
Model T3700G-52TQPart no. T3700G-52TQ V1EAN 6935364097738
76 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
- MAC address table32000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- MAC address table
- 32000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- T3700G-52TQ
- Part number
- T3700G-52TQ V1
- EAN / UPC
- 6935364097738, 6935364097745
- Also known as
- TP-Link JetStream 52-Port Gigabit Stackable L3 Managed Network Switch
Specifications
76 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN |
| Number of VLANs | 4000 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 100BASE-FX, 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Security algorithms | SNMP, SNMPv3, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWar, UNIX, Linux |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 58.82 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 200.69 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Resource CD | Yes |
| Rubber feet | Yes |
| Package width | 580 mm |
| Package depth | 590 mm |
| Package height | 120 mm |
| Package weight | 8.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
