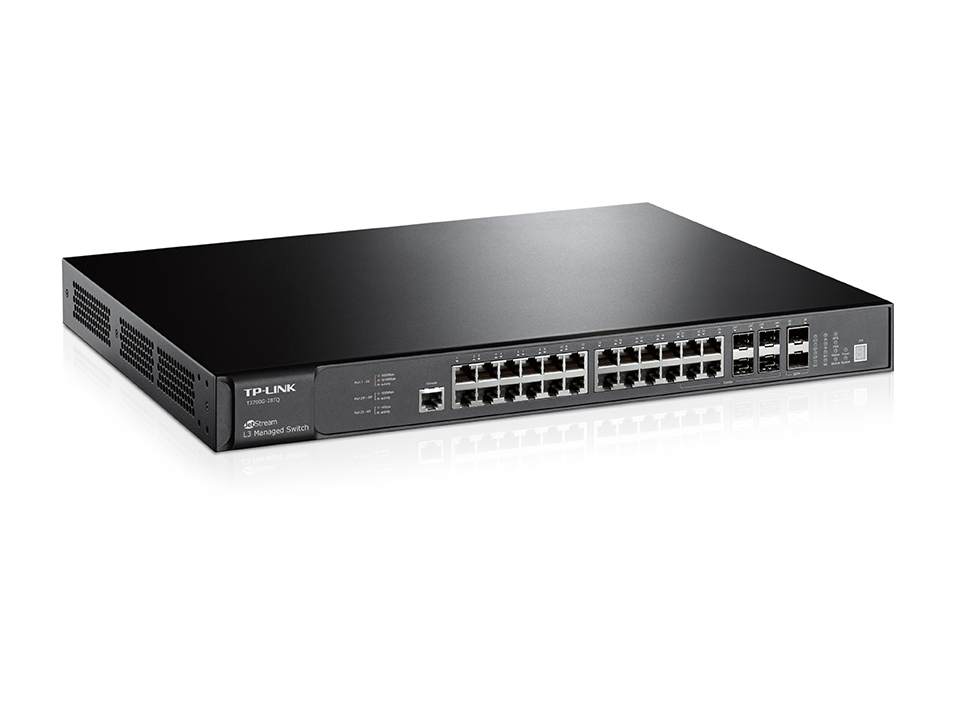

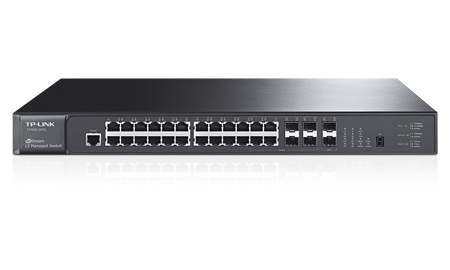

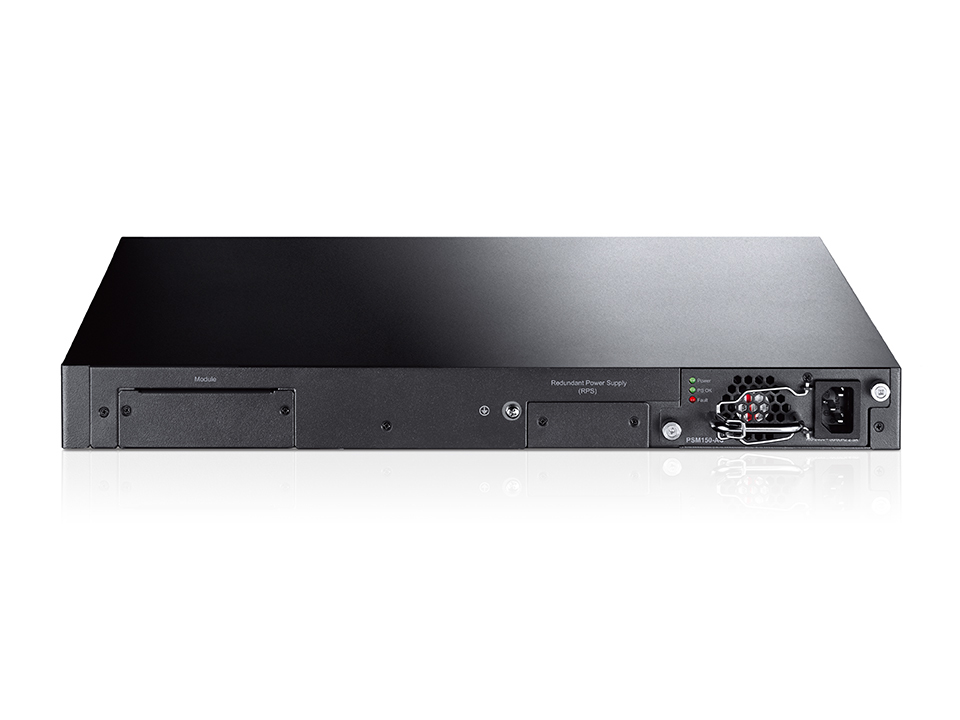

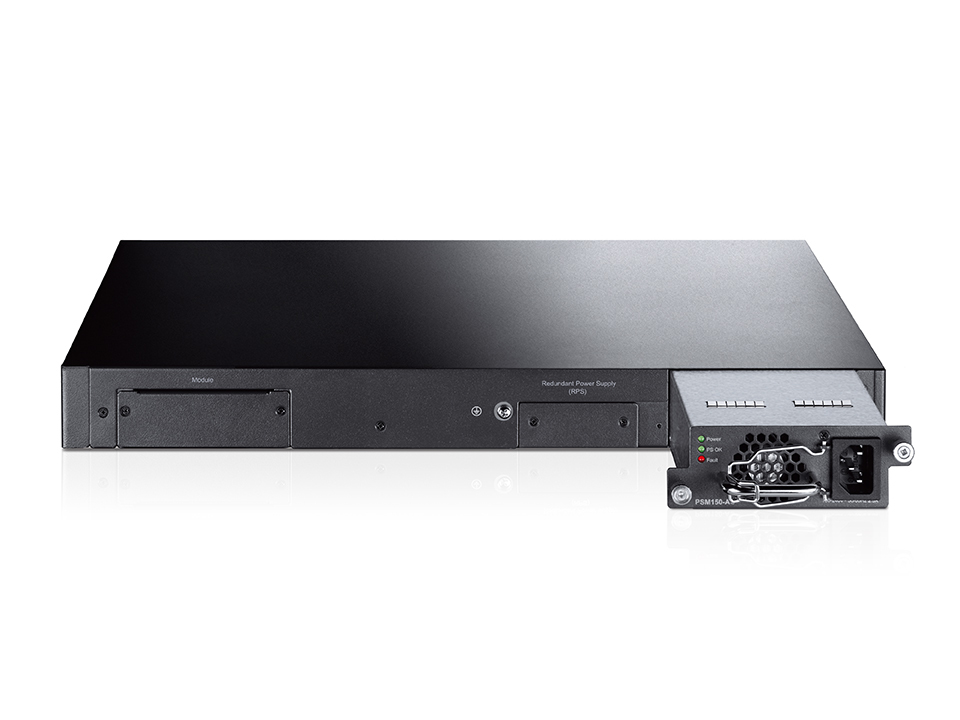

TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch
Model T3700G-28TQEAN 8459730218186
70 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table32000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 32000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- T3700G-28TQ
- Part numbers
- T3700G-28TQ, T3700G-28TQ V1
- EAN / UPC
- 8459730218186, 845973021818, 6935364021818, 6935364021825 +1 more
- Also known as
- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch
Specifications
70 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX, 10GBASE-LR, 10GBASE-SR |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Static route | Yes |
| Number of static routes | 256 |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, DHCP/BOOTP, DHCP Snooping, DHCP Option82, CPU, NDP/NTDP, TFTP, Web, VCT |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Fanless | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 63 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 214.96 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 580 mm |
| Package depth | 590 mm |
| Package height | 120 mm |
| Package weight | 8.23 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
What people say
Reviews & ratings
TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch
No reviews yet
Be the first to tell others how TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch
All network switch comparisons- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsTP-Link T1500-28PCT network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U BlackCompare specs
- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsTP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U BlackCompare specs
- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsTP-Link 5-Port Gigabit Easy Smart SwitchCompare specs
- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsTP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP SlotsCompare specs
- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsD-Link DGS-1100-26 network switch L2 Gigabit Ethernet (10/100/1000) Black, GreyCompare specs

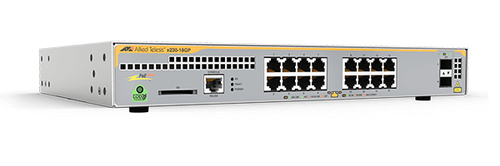

- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsAllied Telesis x230-18GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U GreyCompare specs

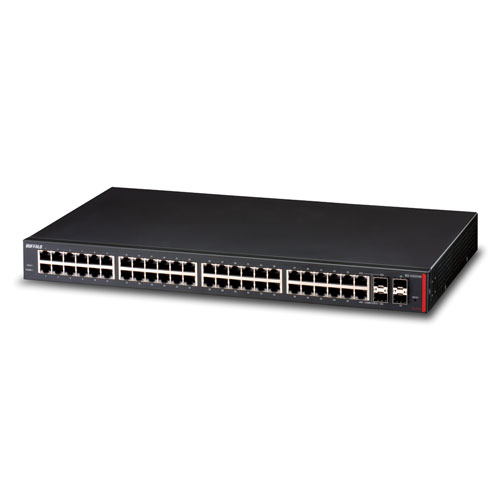

- TP-Link JetStream 28-Port Gigabit Stackable L3 Managed Network Switch vsBuffalo BS-GS2048 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) BlackCompare specs
