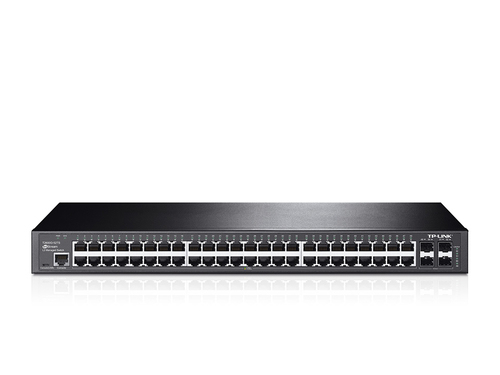

T2600G-52TS V3
Model T2600G-52TS V3EAN 6935364092511
63 specifications
- Type1U
- Weight4.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 4.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- Brand
- TP-Link
- Category
- Network Switch
- Model
- T2600G-52TS V3
- Part number
- T2600G-52TS V3
- EAN / UPC
- 6935364092511
- Also known as
- TP-Link JetStream 48-Port Gigabit L2 Managed Network Switch with 4 SFP Slots
Specifications
63 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 33.52 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 528 mm |
| Package depth | 336 mm |
| Package height | 100 mm |
