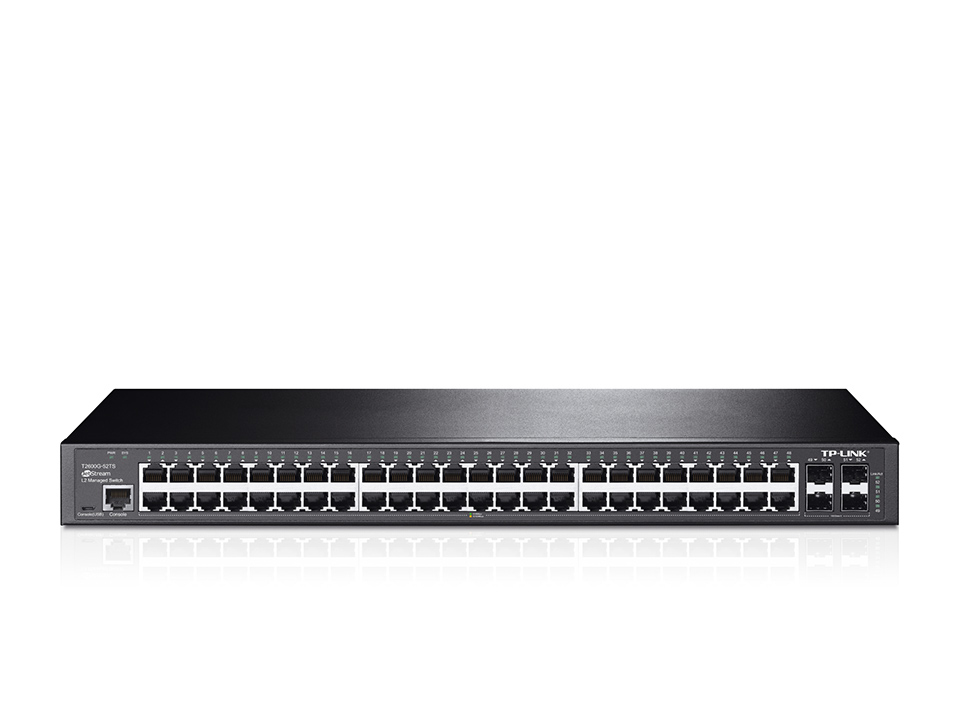

TP-Link T2600G-52TS (TL-SG3452)

TP-Link T2600G-52TS (TL-SG3452)

Model T2600G-52TS (TL-SG3452)Part no. T2600G-52TSEAN 845973092511

57 specifications
  • Type1U
  • Weight4.5 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • Cable types supportedCat5, Cat5e
See all specifications

Overview

Type
1U
Weight
4.5 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Cable types supported
Cat5, Cat5e
Brand
TP-Link
Model
T2600G-52TS (TL-SG3452)
Part number
T2600G-52TS
EAN / UPC
845973092511
Also known as
TP-Link T2600G-52TS (TL-SG3452) Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Specifications

57 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
SFP/SFP+ slots quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supportedCat5, Cat5e
Port mirroringYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN

Data transmission

MAC address table16000 entries
Switching capacity104 Gbit/s
Number of queues8
Jumbo frames9216
Packet forwarding rate (10 Mbps)77400000 pps

Security

DHCP featuresDHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS
Static port securityYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourBlack

Performance

Firmware upgradeableYes
Maximum cable length1 m

Power

Power supply includedYes
AC input voltage100 - 220 V
AC input frequency50 - 60 Hz
Power consumption (max)33.52 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth220 mm
Height44 mm
Weight4.5 kg

Packaging content

Cables includedAC
ManualYes
User guideYes

Packaging data

Mounting brackets includedYes
Rubber feetYes
