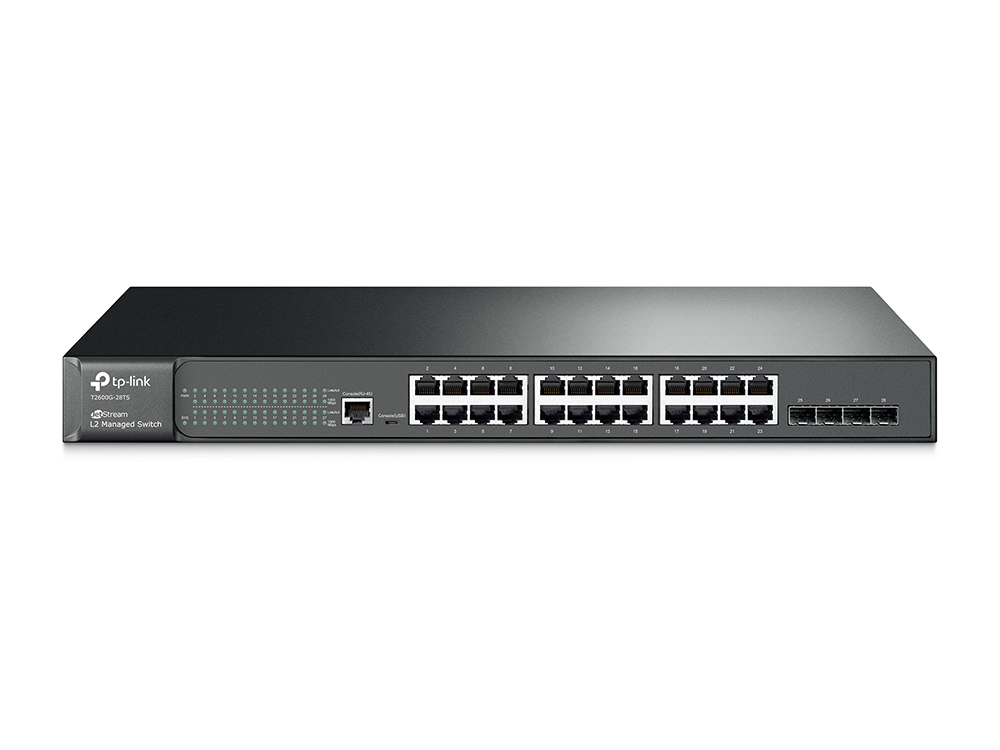

TP-Link JetStream 24-Port Gigabit L2 Managed Network Switch with 4 SFP Slots

TP-Link JetStream 24-Port Gigabit L2 Managed Network Switch with 4 SFP Slots

Model T2600G-28TS(TL-SG3424)Part no. T2600G-28TS(TL-SG3424) V2EAN 6935364020927

59 specifications
  • Type1U
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportNo
  • Fiber ethernet cabling technology1000Base-X
See all specifications

Overview

Type
1U
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
No
Fiber ethernet cabling technology
1000Base-X
Brand
TP-Link
Model
T2600G-28TS(TL-SG3424)
Part number
T2600G-28TS(TL-SG3424) V2
EAN / UPC
6935364020927, 6935364092504
Also known as
TP-Link JetStream 24-Port Gigabit L2 Managed Network Switch with 4 SFP Slots

Specifications

59 specifications in 16 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportSNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs, SYSLOG & Public MIBS

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP module slots quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.11d, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Port mirroringYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN

Optical fiber

Fiber ethernet cabling technology1000Base-X

Data transmission

MAC address table16000 entries
Switching capacity56 Gbit/s
Forwarding rate41.67 Mpps
Jumbo frames supportYes
Jumbo frames9216

Security

DHCP featuresDHCP server
IP-MAC-Port bindingYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsYes
On/off switchYes

Performance

Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.

Power

Power supply includedYes
AC input frequency50 - 60 Hz
Input voltage100 - 240 V
Power consumption (max)19.15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth220 mm
Height44 mm

Packaging content

Cables includedAC
Rack mount kitYes
User guideYes

Packaging data

Resource CDYes
Rubber feetYes
Package width528 mm
Package depth336 mm
Package height100 mm
Package weight3.7 kg

Certificates

CertificationCE, FCC, RoHS
