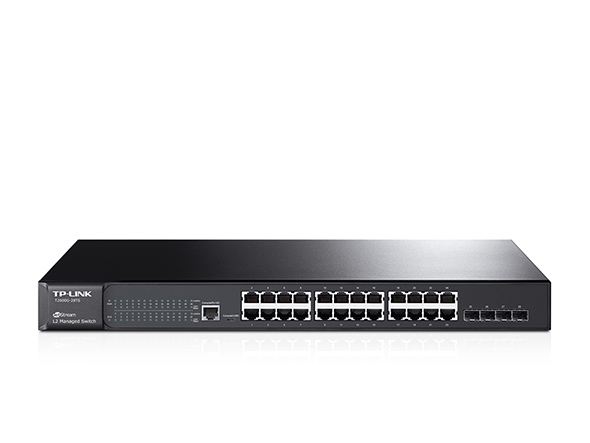

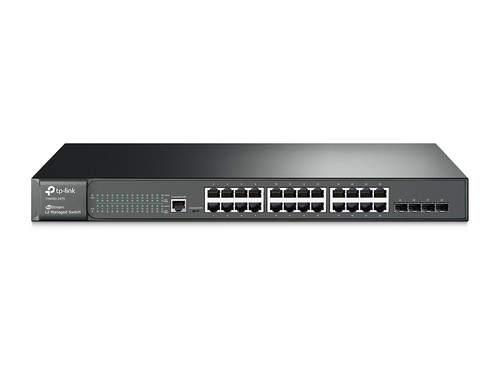

TP-Link T2600G-28TS network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link T2600G-28TS network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Model T2600G-28TSEAN 845973092498

50 specifications

ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
Cable types supportedCat3, Cat4, Cat5, Cat5e
Fiber ethernet cabling technology1000Base-X
MAC address table16000 entries

See all specifications

Overview

Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Fiber ethernet cabling technology: 1000Base-X
MAC address table: 16000 entries

Brand: TP-Link
Category: Network Switch
Model: T2600G-28TS
Part number: T2600G-28TS
EAN / UPC: 845973092498, 5054629990438, 5055205187112, 6935364092498
Also known as: TP-Link T2600G-28TS network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Specifications

50 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs, SYSLOG & Public MIBS

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.11d, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Link aggregation	Yes
Rate limiting	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000Base-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	41.67 Mpps
Jumbo frames support	Yes
Jumbo frames	9216
Path MTU discovery	Yes

Security

Specification	Value
DHCP features	DHCP server
IP-MAC-Port binding	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS

Multicast features

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Black
On/off switch	Yes

Power

Specification	Value
AC input frequency	50 - 60 Hz
Power consumption (max)	19.15 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	220 mm
Height	44 mm

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes
User guide	Yes

Packaging data

Specification	Value
Resource CD	Yes
Rubber feet	Yes
