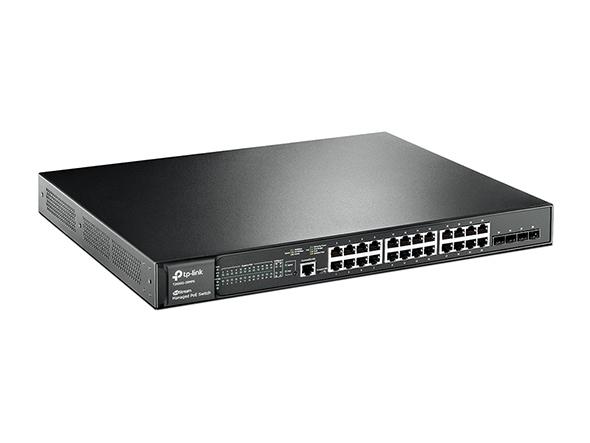

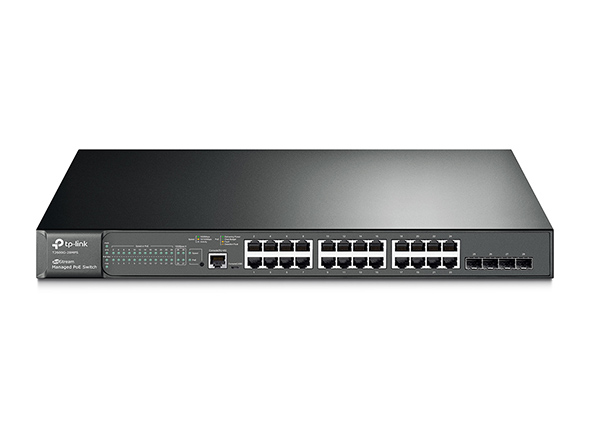

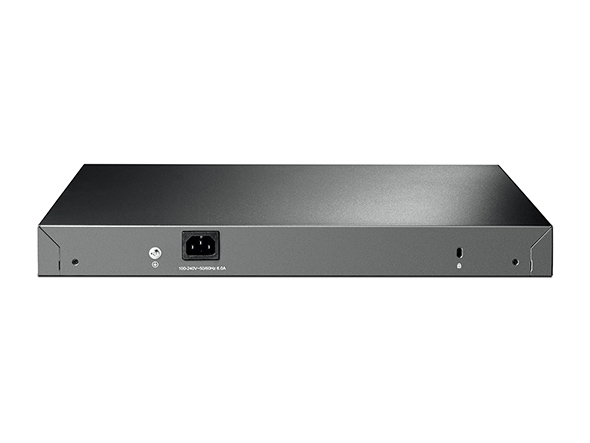

TP-Link T2600G-28MPS (TL-SG3424P)

TP-Link T2600G-28MPS (TL-SG3424P)

Model T2600G-28MPS (TL-SG3424P)Part no. T2600G-28MPS(TL-SG3424P)EAN 6935364097820

61 specifications

Type1U
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo
MAC address table16000 entries

See all specifications

Overview

Type: 1U
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No
MAC address table: 16000 entries

Brand: TP-Link
Category: Network Switch
Model: T2600G-28MPS (TL-SG3424P)
Part number: T2600G-28MPS(TL-SG3424P)
EAN / UPC: 6935364097820, 132018353110, 807030507000, 809385677629 +5 more
Also known as: TP-Link JetStream 24-Port Gigabit L2+ Managed PoE+ Switch with 4 SFP Slots

Specifications

61 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Console port	Micro-USB
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Flow control support	Yes
Rate limiting	Yes
VLAN support	Yes
Number of VLANs	4000

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	41.7 Mpps
Jumbo frames support	Yes
Jumbo frames	9000

Security

Specification	Value
DHCP features	DHCP server
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS
SSH/SSL support	Yes
Security algorithms	SSH, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)

Power

Specification	Value
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	468.7 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	384 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	330 mm
Height	44 mm

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Resource CD	Yes
Rubber feet	Yes
Package width	528 mm
Package depth	440 mm
Package height	100 mm

Certificates

Specification	Value
Certification	CE, FCC, RoHS
