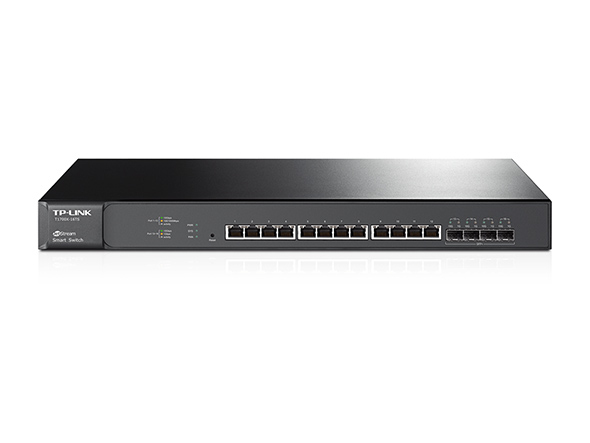

TP-Link JetStream 12-Port 10GBase-T Smart Network Switch with 4

10G SFP+ Slots

Model T1700X-16TSEAN 6935364094775

73 specifications

Type1U
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity12
10G supportYes
MAC address table16000 entries

See all specifications

Overview

Type: 1U
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 12
10G support: Yes
MAC address table: 16000 entries

Brand: TP-Link
Category: Network Switch
Model: T1700X-16TS
Part numbers: T1700X-16TS, T1700X-16TS V3
EAN / UPC: 6935364094775, 845973094768, 6935364094768, 5055309625251
Also known as: TP-Link JetStream 12-Port 10GBase-T Smart Network Switch with 4 10G SFP+ Slots

Specifications

73 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	12
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10GBASE-LR, 10GBASE-SR, 10GBASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Port mirroring	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN
Number of VLANs	4000

Optical fiber

Specification	Value
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-SR, 1000BASE-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	320 Gbit/s
Forwarding rate	238.1 Mpps
Number of queues	8
Number of static routes	32
Number of IP interfaces	16
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	2 MB

Security

Specification	Value
DHCP features	DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Port-based authentication
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSH-2, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/v2c/v3, Telnet, SNTP

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)

Performance

Specification	Value
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8/8.1, MAC OS, NetWare, UNIX, Linux.
Firmware upgradeable	Yes

Power

Specification	Value
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	227 mm
Height	44 mm

Packaging content

Specification	Value
Cables included	AC

Packaging data

Specification	Value
Resource CD	Yes
Package width	528 mm
Package depth	336 mm
Package height	100 mm
Package weight	4.36 kg

Certificates

Specification	Value
Certification	CE, FCC, RoHS
