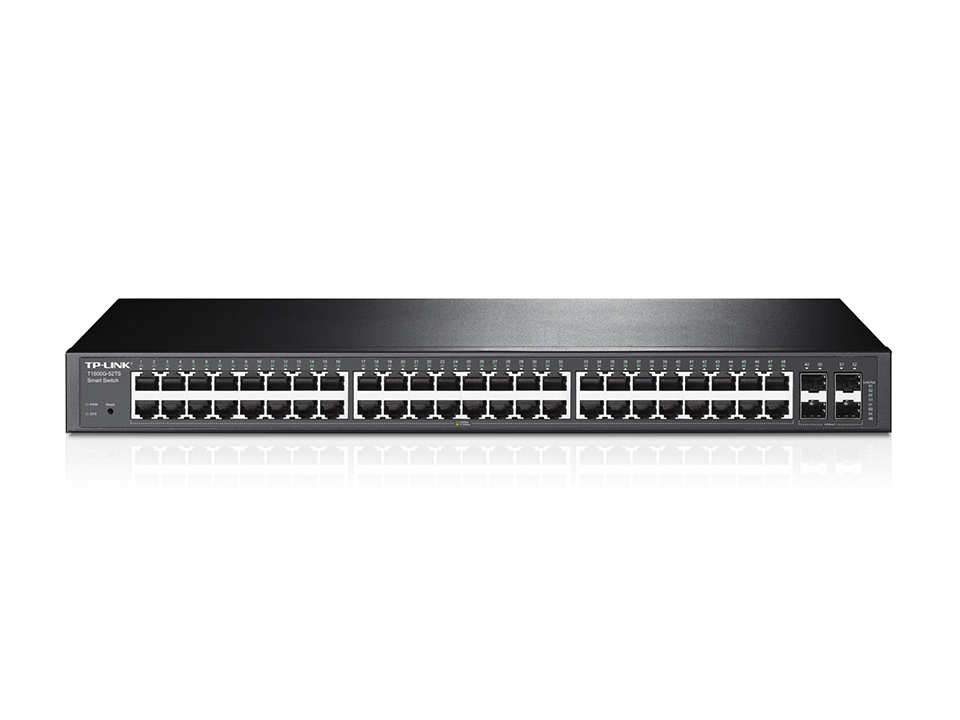

TP-Link T1600G-52TS (TL-SG2452)

TP-Link T1600G-52TS (TL-SG2452)

Model T1600G-52TS (TL-SG2452)Part no. T1600G-52TSEAN 845973021375

47 specifications
  • Type1U
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportNo
  • MAC address table16000 entries
See all specifications

Overview

Type
1U
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
10G support
No
MAC address table
16000 entries
Brand
TP-Link
Model
T1600G-52TS (TL-SG2452)
Part number
T1600G-52TS
EAN / UPC
845973021375, 568822068078, 733497129144, 4713147231911 +1 more
Also known as
TP-Link T1600G-52TS (TL-SG2452) Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Specifications

47 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2+
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP module slots quantity4
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes

Data transmission

MAC address table16000 entries
Switching capacity104 Gbit/s
Throughput77.4 Mpps
Jumbo frames supportYes
Jumbo frames9216

Security

IP-MAC-Port bindingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithmsSSH, SSL/TLS
Static port securityYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourBlack

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)32.8 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth220 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes
Rack mount kitYes
User guideYes

Packaging data

Mounting brackets includedYes
Resource CDYes
Rubber feetYes

Certificates

CertificationCE, FCC, RoHS
