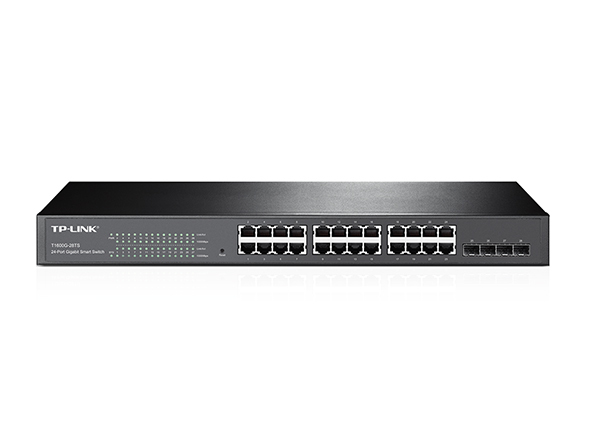

TP-Link T1600G-28TS (TL-SG2424)

TP-Link T1600G-28TS (TL-SG2424)

Model T1600G-28TS (TL-SG2424)Part no. T1600G-28TS(TL-SG2424)EAN 845973091972

32 specifications
  • Type1U
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • Auto MDI/MDI-XYes
  • MAC address table16000 entries
See all specifications

Overview

Type
1U
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Auto MDI/MDI-X
Yes
MAC address table
16000 entries
Brand
TP-Link
Model
T1600G-28TS (TL-SG2424)
Part number
T1600G-28TS(TL-SG2424)
EAN / UPC
845973091972
Also known as
TP-Link T1600G-28TS (TL-SG2424) Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Specifications

32 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-XYes
Spanning tree protocolYes

Data transmission

MAC address table16000 entries
Switching capacity56 Gbit/s
Throughput41.7 Mpps

Security

DHCP featuresDHCP client
IGMP snoopingYes

Protocols

Management protocolsSNMP, RMON, SNMP, SSH, SSL, ICMP, TFTP

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)23.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth180 mm
Height44 mm

Certificates

CertificationCE, FCC, RoHS
