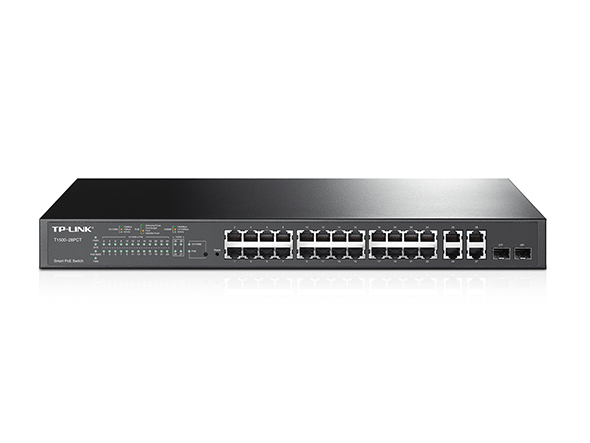

TP-Link T1500-28PCT network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

TP-Link T1500-28PCT network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

Model T1500-28PCTEAN 845973092597

55 specifications
  • Type1U
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportNo
  • MAC address table8000 entries
See all specifications

Overview

Type
1U
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
No
MAC address table
8000 entries
Brand
TP-Link
Model
T1500-28PCT
Part numbers
T1500-28PCT, T1500-28TC(TL-SL2428)
EAN / UPC
845973092597, 6935364092597, 7429500171196
Also known as
TP-Link T1500-28PCT network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

Specifications

55 specifications in 16 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity24
Gigabit Ethernet (copper) ports quantity4
Combo SFP ports quantity2

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supportedCat5, Cat5e
Port mirroringYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs512

Data transmission

MAC address table8000 entries
Switching capacity12.8 Gbit/s
Throughput9.5 Mpps
Number of queues4
Jumbo frames supportYes

Security

Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Security algorithmsSSH, SSH-2, SSL/TLS

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1/v2c/v3, RMON, SNTP, TFTP

Design

Rack mountingYes
Form factor1U
Product colourBlack
Number of fans2 fan(s)

Performance

Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeableYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)222.15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget180 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth220 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes

Certificates

CertificationCE, FCC, RoHS

Logistics data

Harmonized System (HS) code85176990
