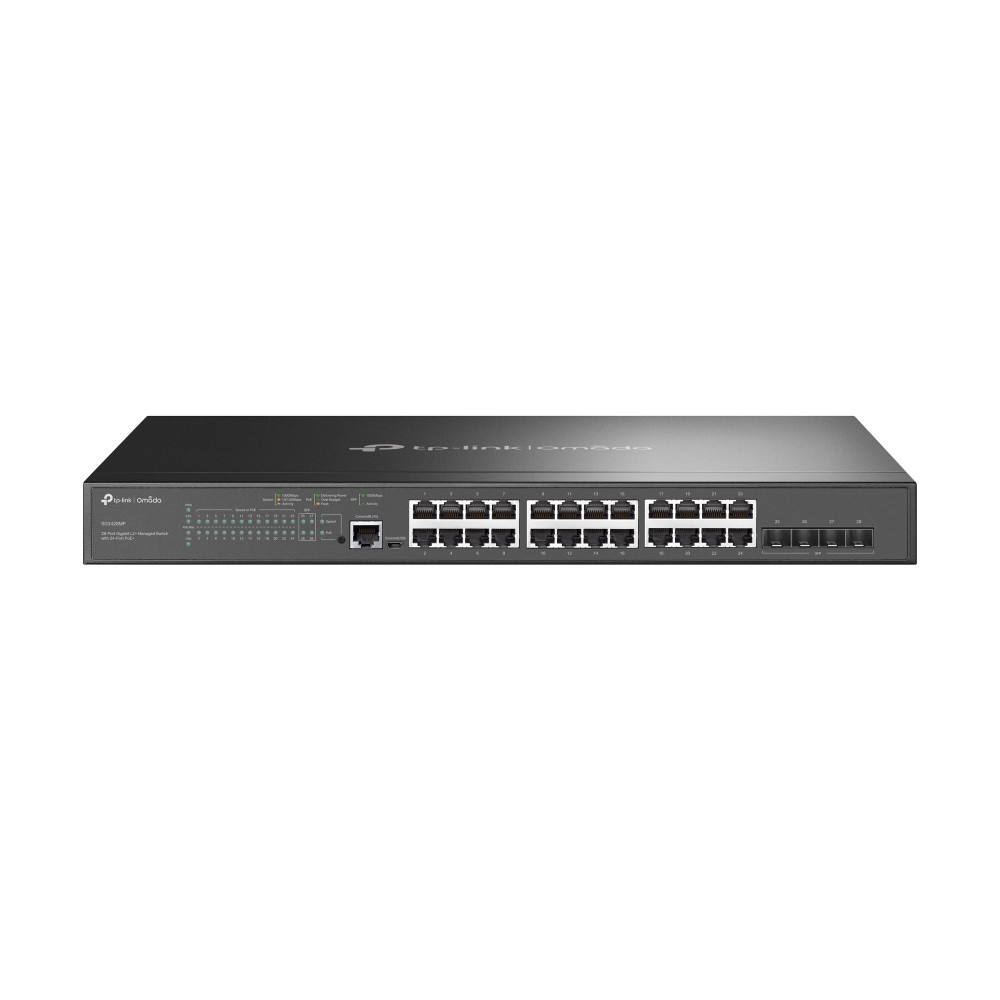

Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Model SG3428MPPart no. SG3428MP(UN)EAN 6935364010737
79 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table16000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- SG3428MP
- Part numbers
- SG3428MP(UN), SG3428MP
- EAN / UPC
- 6935364010737, 840460605120, 1210002611909, 1210002611916 +1 more
- Also known as
- TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Specifications
79 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2c/v3, LLDP/LLDP-MED |
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 480.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 384 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1637.14 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
