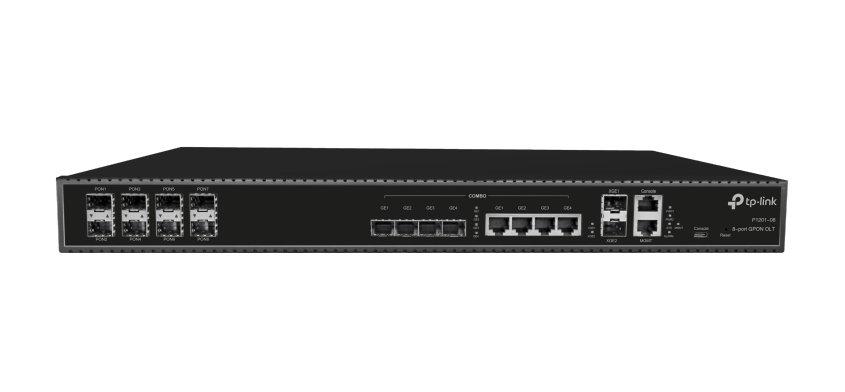

P1201-08 network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
Model P1201-08EAN 6935364005139
35 specifications
- Type1U
- Weight4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- P1201-08
- Part number
- P1201-08
- EAN / UPC
- 6935364005139
- Also known as
- TP-Link P1201-08 network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3x |
| 10G support | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Single-mode |
| Transmission distance (max) | 20 km |
| Wavelength | 1490 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 64000 entries |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 36 - 72 V |
| Power consumption (max) | 70 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 391 mm |
| Height | 44 mm |
| Weight | 4 kg |
