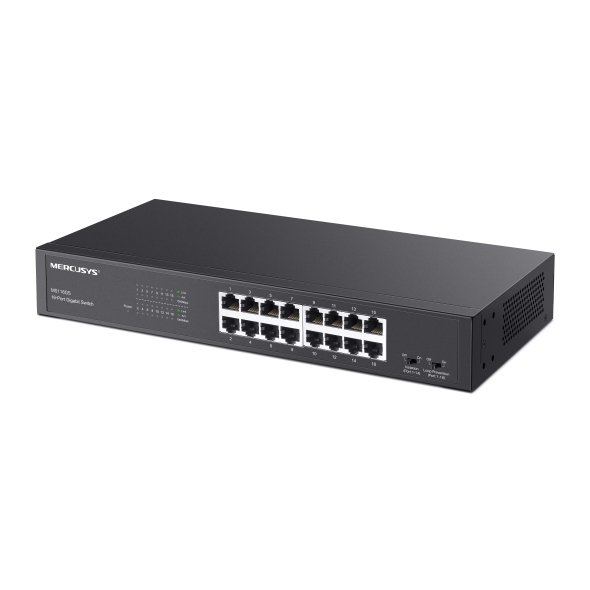

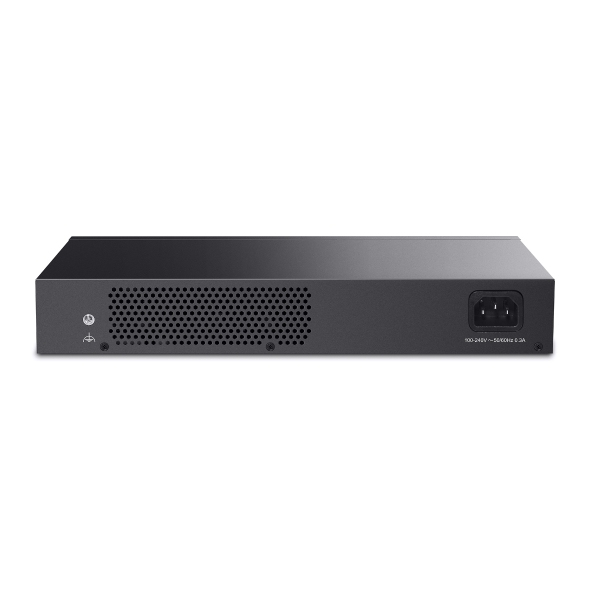

MS116GS network switch Gigabit Ethernet (10/100/1000) Black
Model MS116GSEAN 849439001994
23 specifications
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- Auto MDI/MDI-XYes
- MAC address table8000 entries
- Power sourceAC
- Power over Ethernet (PoE)No
Overview
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Auto MDI/MDI-X
- Yes
- MAC address table
- 8000 entries
- Power source
- AC
- Power over Ethernet (PoE)
- No
- Brand
- TP-Link
- Category
- Network Switch
- Model
- MS116GS
- Part number
- MS116GS
- EAN / UPC
- 849439001994, 6957939006891
- Also known as
- TP-Link MS116GS network switch Gigabit Ethernet (10/100/1000) Black
Specifications
23 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 294 mm |
| Depth | 140 mm |
| Height | 44 mm |
