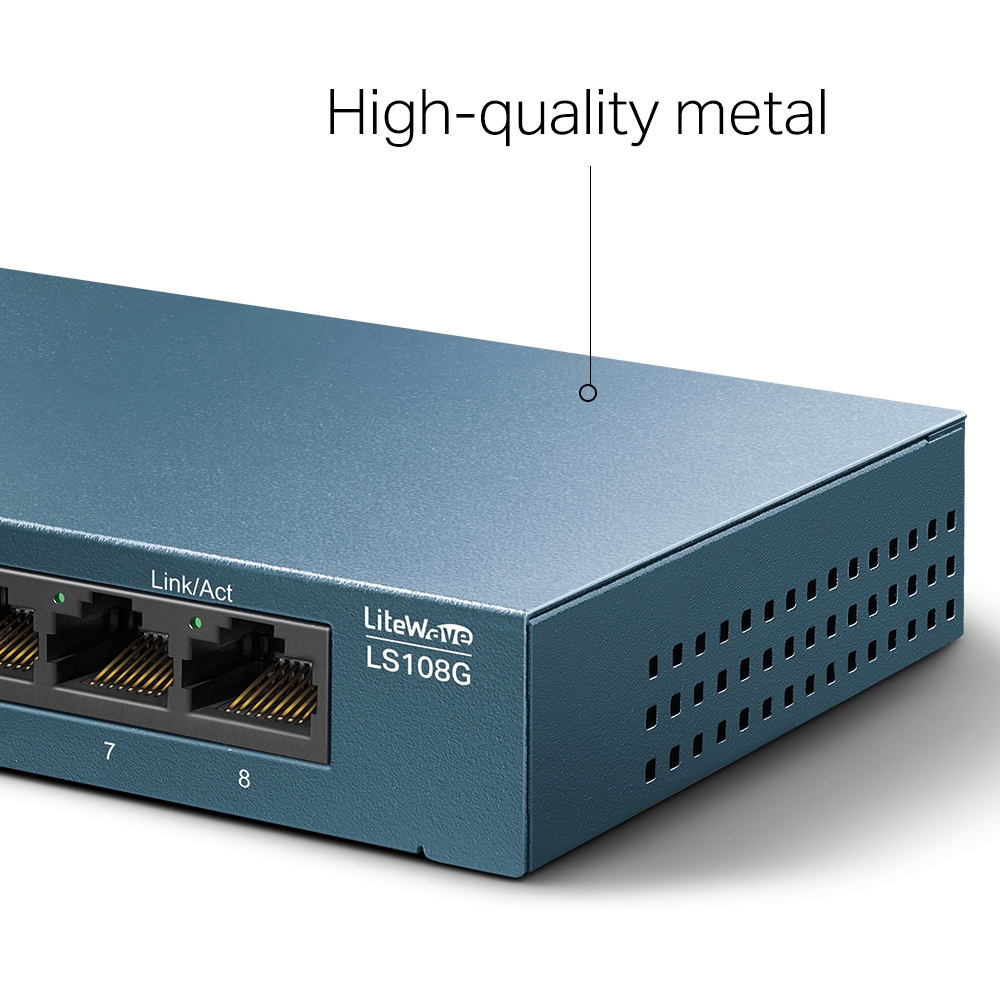

8-Port 10/100/1000Mbps Desktop Network Switch
Model LS108GEAN 8885021371511
43 specifications
- ColourBlue
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
- Power sourceDC
Overview
- Colour
- Blue
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Power source
- DC
- Brand
- TP-Link
- Category
- Network Switch
- Model
- LS108G
- Part numbers
- LS108G, LS108G V1
- EAN / UPC
- 8885021371511, 6935364085452, 6935364085490, 8592978176075 +4 more
- Also known as
- TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Blue |
| LED indicators | Activity, LAN, Power |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 3.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 12.617 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 99 mm |
| Height | 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 130 mm |
| Package depth | 191 mm |
| Package height | 92 mm |
| Package weight | 470 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
