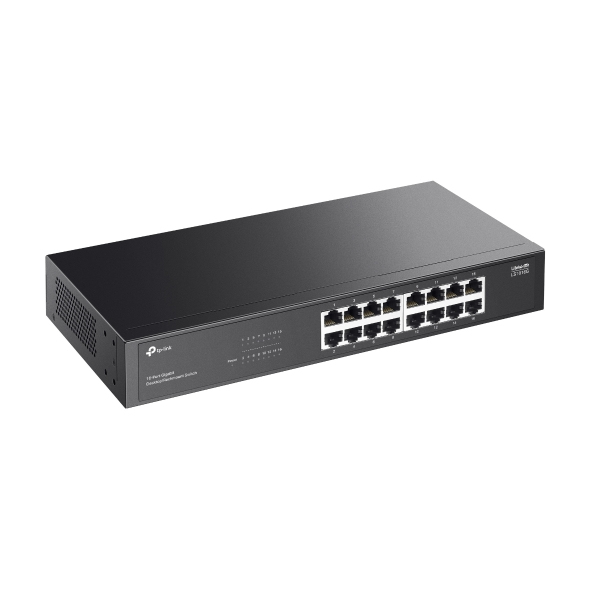

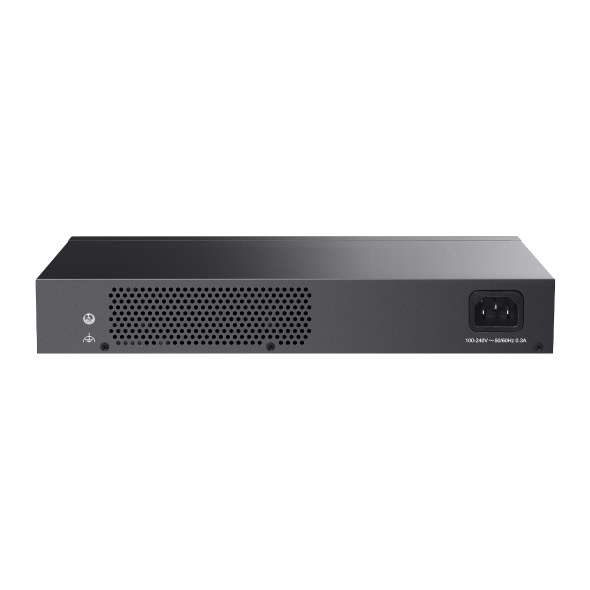

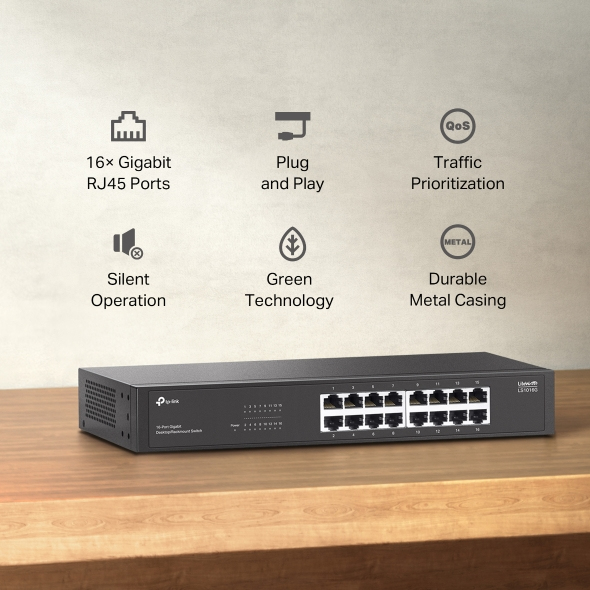

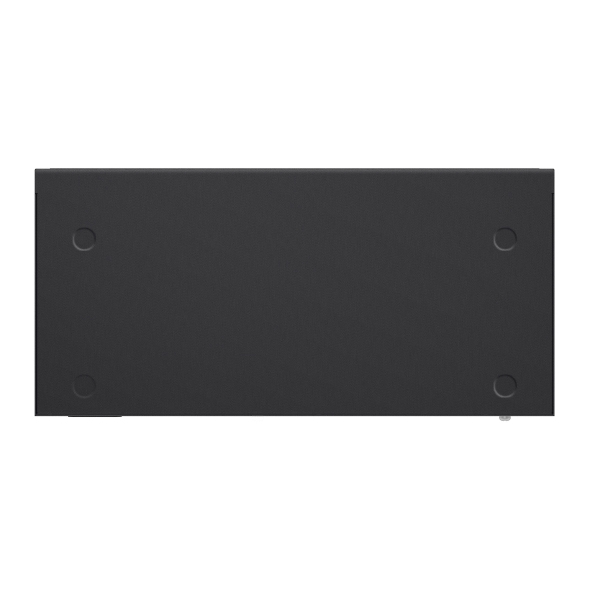

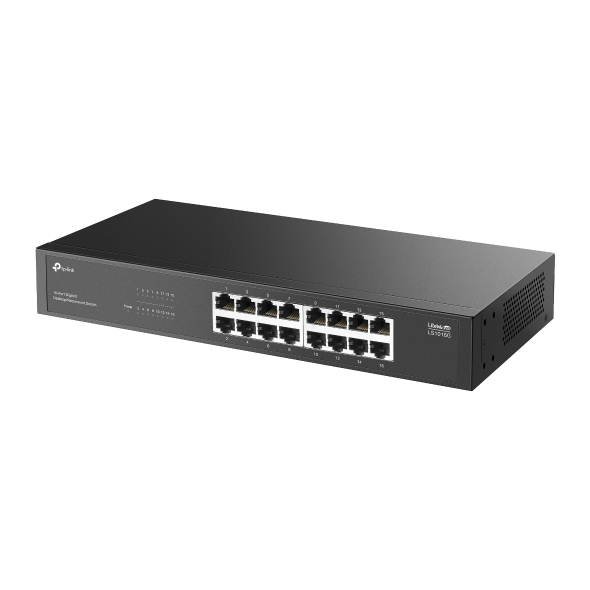

LS1016G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model LS1016GEAN 1210002602037
34 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table8000 entries
- Rack mountingYes
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 8000 entries
- Rack mounting
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- LS1016G
- Part number
- LS1016G
- EAN / UPC
- 1210002602037, 1210002602044
- Also known as
- TP-Link LS1016G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.808 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.3 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 24.42 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 294 mm |
| Depth | 140 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHs |
