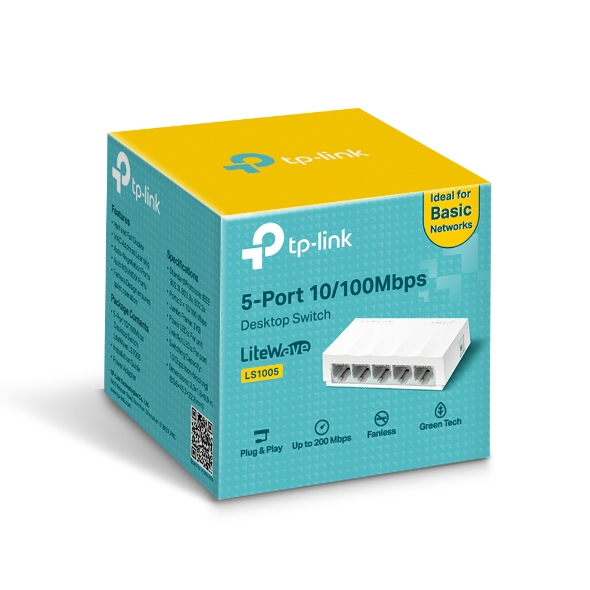

5-Port 10/100Mbps Desktop Network Switch
Model LS1005EAN 845973089061
44 specifications
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
- Power sourceDC
Overview
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Power source
- DC
- Brand
- TP-Link
- Category
- Network Switch
- Model
- LS1005
- Part numbers
- LS1005, LS1005 V1
- EAN / UPC
- 845973089061, 1210002616133, 6935364089061, 6935364089122 +1 more
- Also known as
- TP-Link 5-Port 10/100Mbps Desktop Network Switch
Specifications
44 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
| Wall mountable | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 1.65 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 5.627 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 83.6 mm |
| Depth | 45.7 mm |
| Height | 22.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 82 mm |
| Package depth | 88 mm |
| Package height | 84 mm |
| Package weight | 80 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
