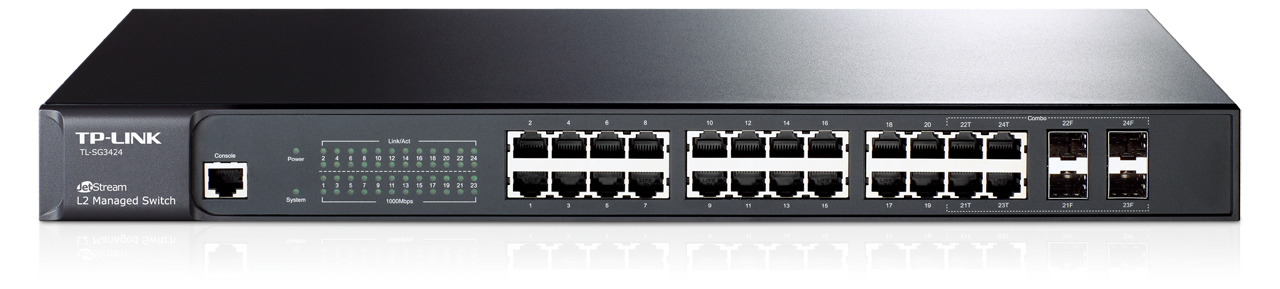

TP-Link JetStream TL-SG3424

TP-Link JetStream TL-SG3424

Model JetStream TL-SG3424Part no. TL-SG3424EAN 8459730209276

39 specifications
  • Speed1 Gbit/s
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportNo
  • MAC address table8000 entries
See all specifications

Overview

Speed
1 Gbit/s
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
No
MAC address table
8000 entries
Brand
TP-Link
Model
JetStream TL-SG3424
Part number
TL-SG3424
EAN / UPC
8459730209276, 172302746198, 191120098821, 845973020927 +2 more
Also known as
TP-Link JetStream TL-SG3424 Managed L2 Gigabit Ethernet (10/100/1000) Black

Specifications

39 specifications in 11 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Combo SFP ports quantity4
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity48 Gbit/s
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
MAC address filteringYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS, HTTPS, SSH, SSL/TLS
Static port securityYes

Design

Product colourBlack
LED indicatorsYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Other features

Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth220 mm
Height44 mm

Certificates

CertificationCE, FCC
