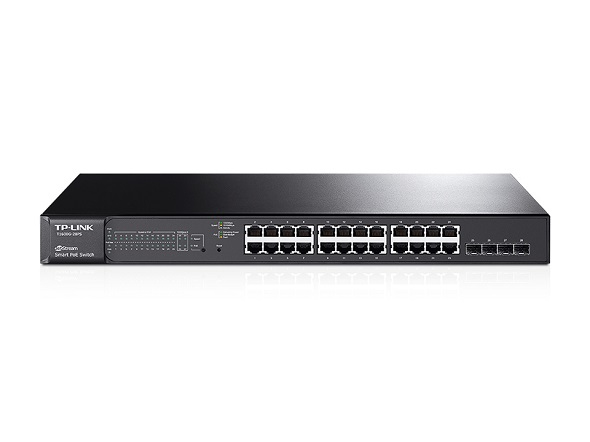

TP-Link JetStream 24-Port Gigabit Smart

Model JetStream 24-Port Gigabit SmartPart no. T1600G-28PS(TL-SG2424P)EAN 6935364093525

66 specifications

Overview

Brand: TP-Link
Category: Network Switch
Model: JetStream 24-Port Gigabit Smart
Part number: T1600G-28PS(TL-SG2424P)
EAN / UPC: 6935364093525
Also known as: TP-Link JetStream 24-Port Gigabit Smart Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

66 specifications in 15 groups

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Fiber optic connector	SFP

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN
Number of VLANs	4000

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	MAC-based authentication
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, IPPS, SSH, SSL/TLS

Specification	Value
Multicast support	Yes

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	192 W

Specification	Value
Management platform	GUI, CLI, SNMP MIBs, RMON, CPU Monitoring, Port Mirroring
Dimensions (WxDxH)	440 x 220 x 44 mm
Diagnostics	VCT, SYSLOG & Public MIBS, Dual Image
Ethernet LAN (RJ-45) ports	24
Ethernet interface type	Gigabit Ethernet
Size (imperial)	48.3 cm (19")

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	32 - 104 °F

Specification	Value
Manual	Yes

Specification	Value
Certification	CE, FCC, RoHS
