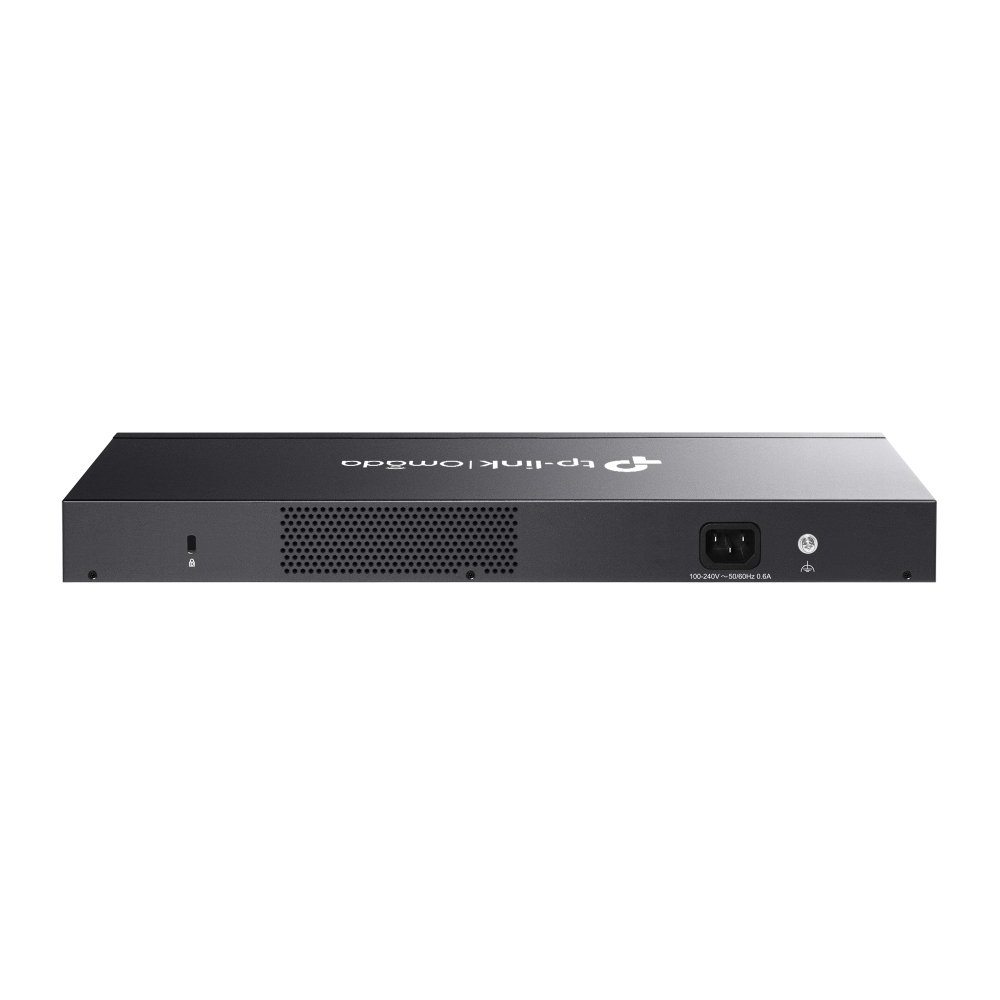

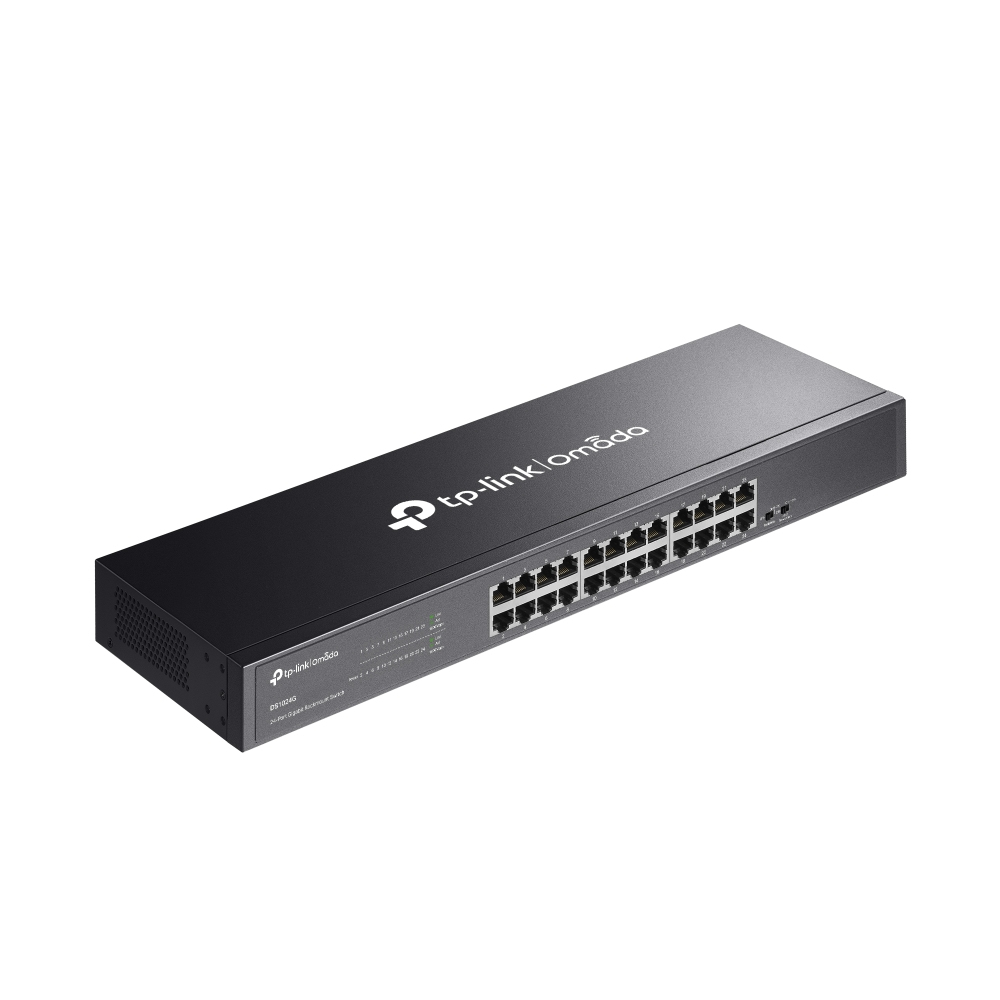

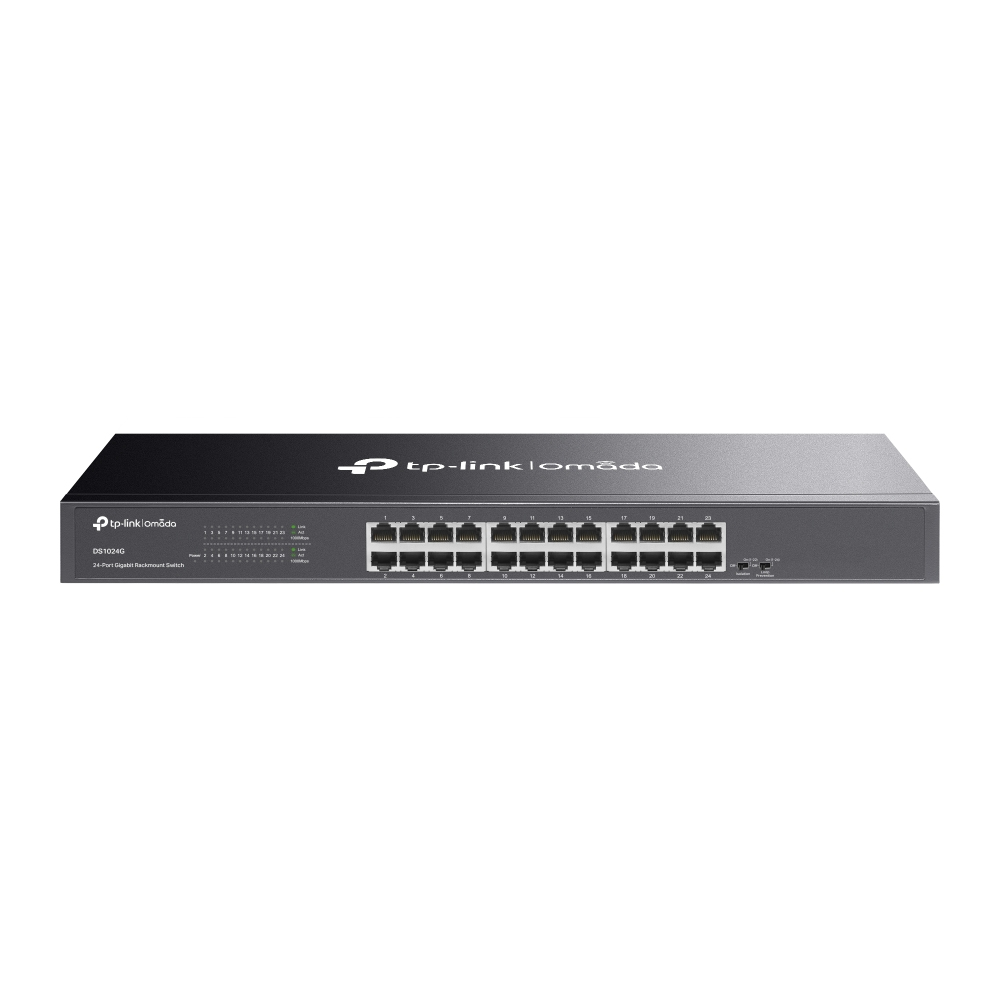

Omada DS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
Model DS1024GEAN 840030712425
44 specifications
- Type1U
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- DS1024G
- Part number
- DS1024G
- EAN / UPC
- 840030712425, 4895252507485
- Also known as
- TP-Link Omada DS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
Specifications
44 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Steel |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 13.62 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 46.44 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 140 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rubber feet | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
