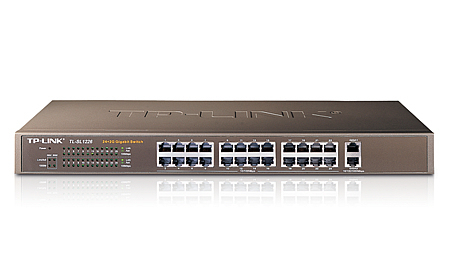

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Switch
Model 24-Port 10/100Mbps + 2-Port Gigabit SwitchPart no. TL-SL1226EAN 8459730202796
28 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity26
- Full duplexYes
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Full duplex
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- 24-Port 10/100Mbps + 2-Port Gigabit Switch
- Part number
- TL-SL1226
- EAN / UPC
- 8459730202796, 021111186124, 132018279250, 169322598890 +4 more
- Also known as
- TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Switch Unmanaged Black
Specifications
28 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 8.8 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD, TCP/IP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | 100-240VAC, 50/60Hz |
| Power consumption (typical) | 18 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 180 x 44 mm |
| Connectivity technology | Wired |
| Size (imperial) | 48.3 cm (19") |
| Connectivity LEDs | Yes |
| Dimensions (W x D x H) (imperial) | 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
