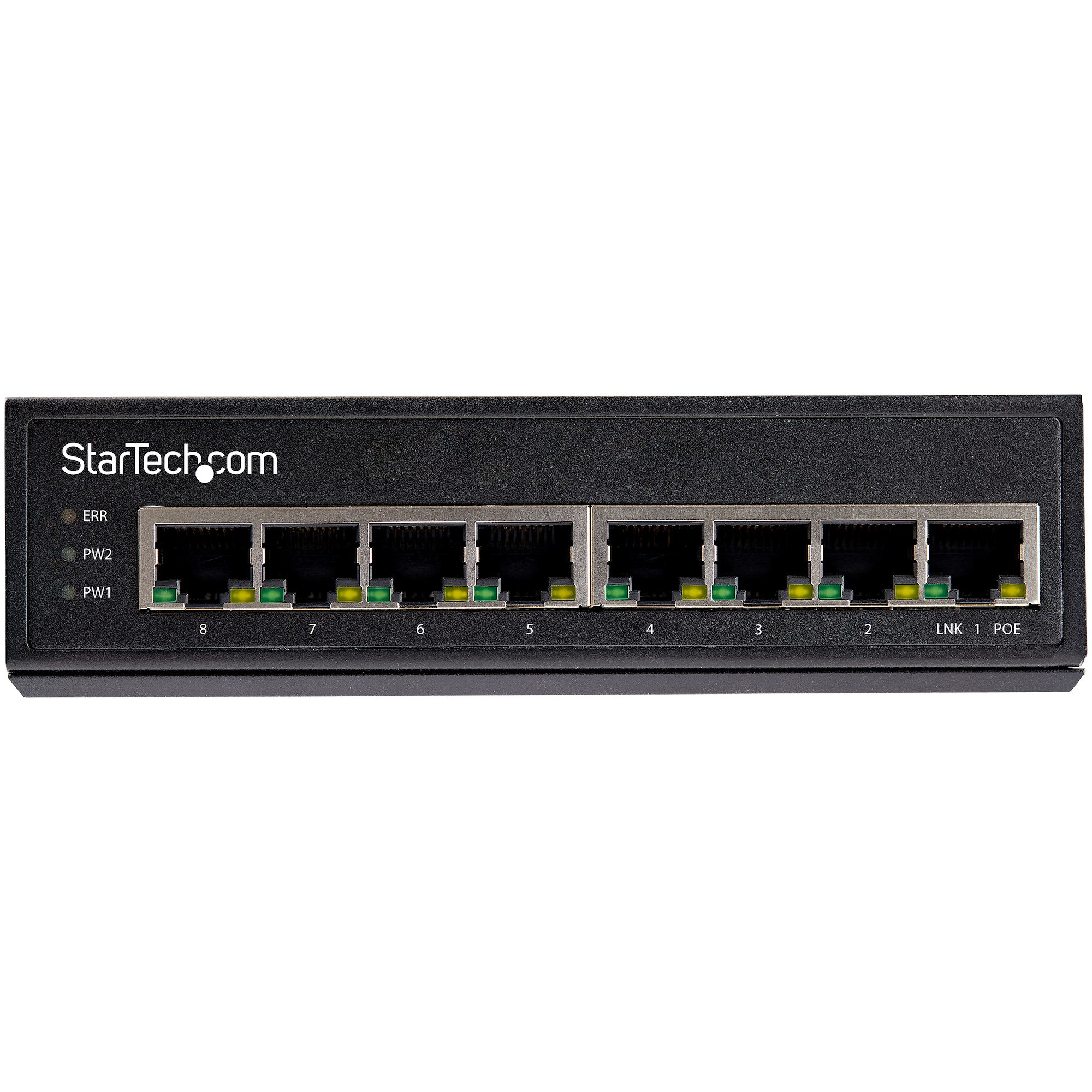

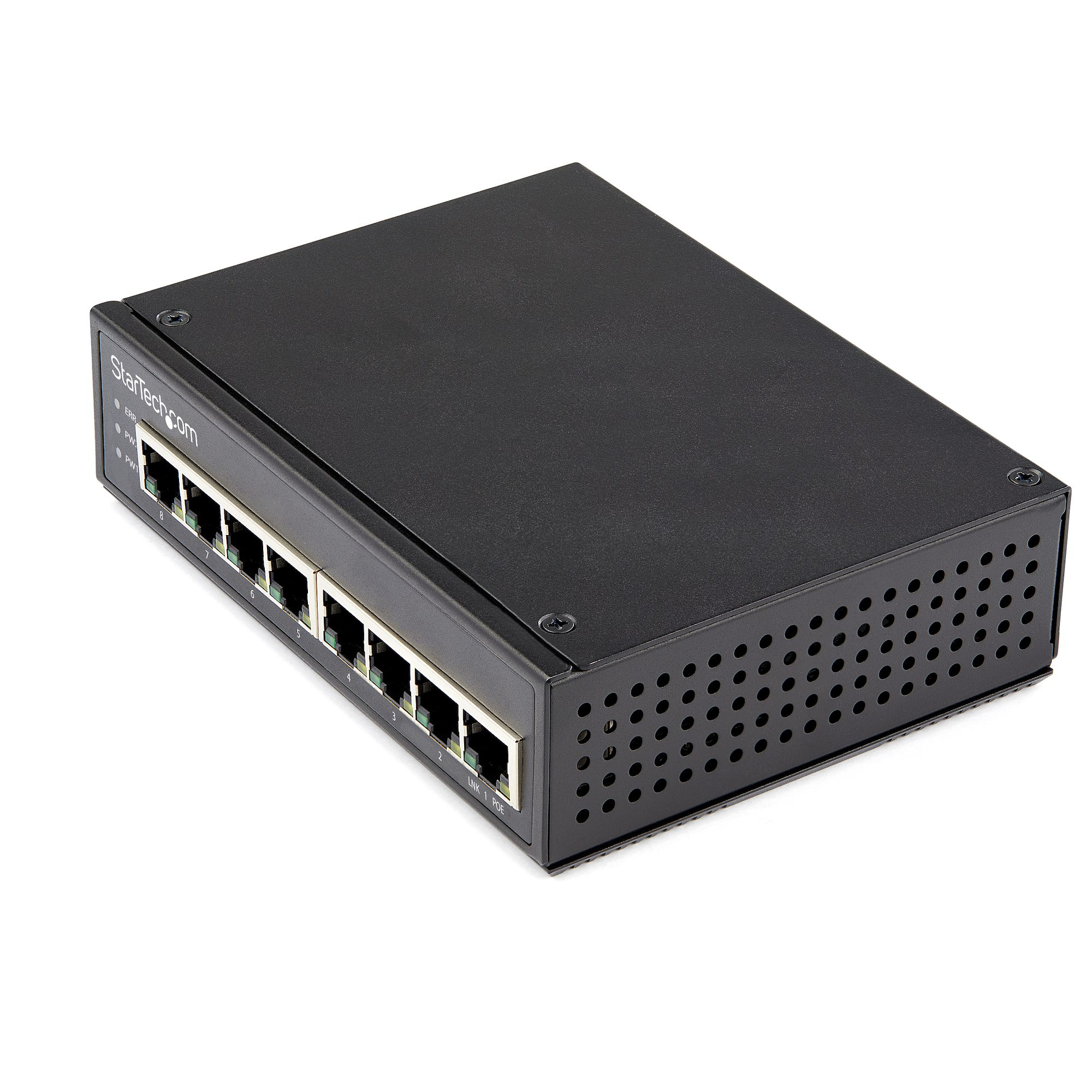

Industrial 8 Port Gigabit PoE Switch
30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-3
Model IESC1G80UPEAN 065030889605
49 specifications
- Weight536 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Switching capacity16000 Gbit/s
Overview
- Weight
- 536 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Switching capacity
- 16000 Gbit/s
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- IESC1G80UP
- Part number
- IESC1G80UP
- EAN / UPC
- 065030889605
- Also known as
- StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-3
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat5e, Cat6 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 16000 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
| Mean time between failures (MTBF) | 693764 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 48 - 56 V |
| Power consumption (max) | 206 W |
| Surge protection | Yes |
| Surge protection voltage | 2 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 200 W |
Other features
| Specification | Value |
|---|---|

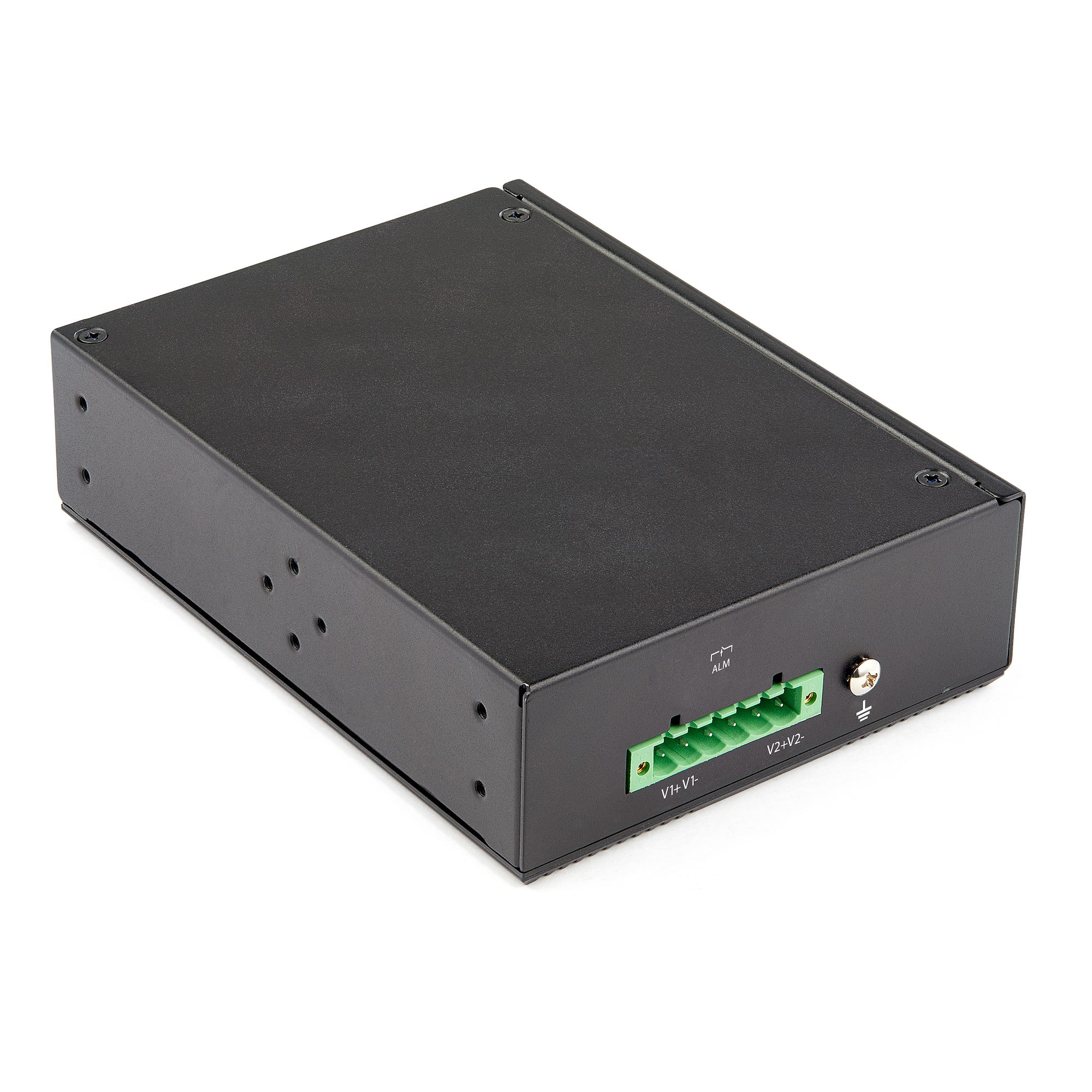

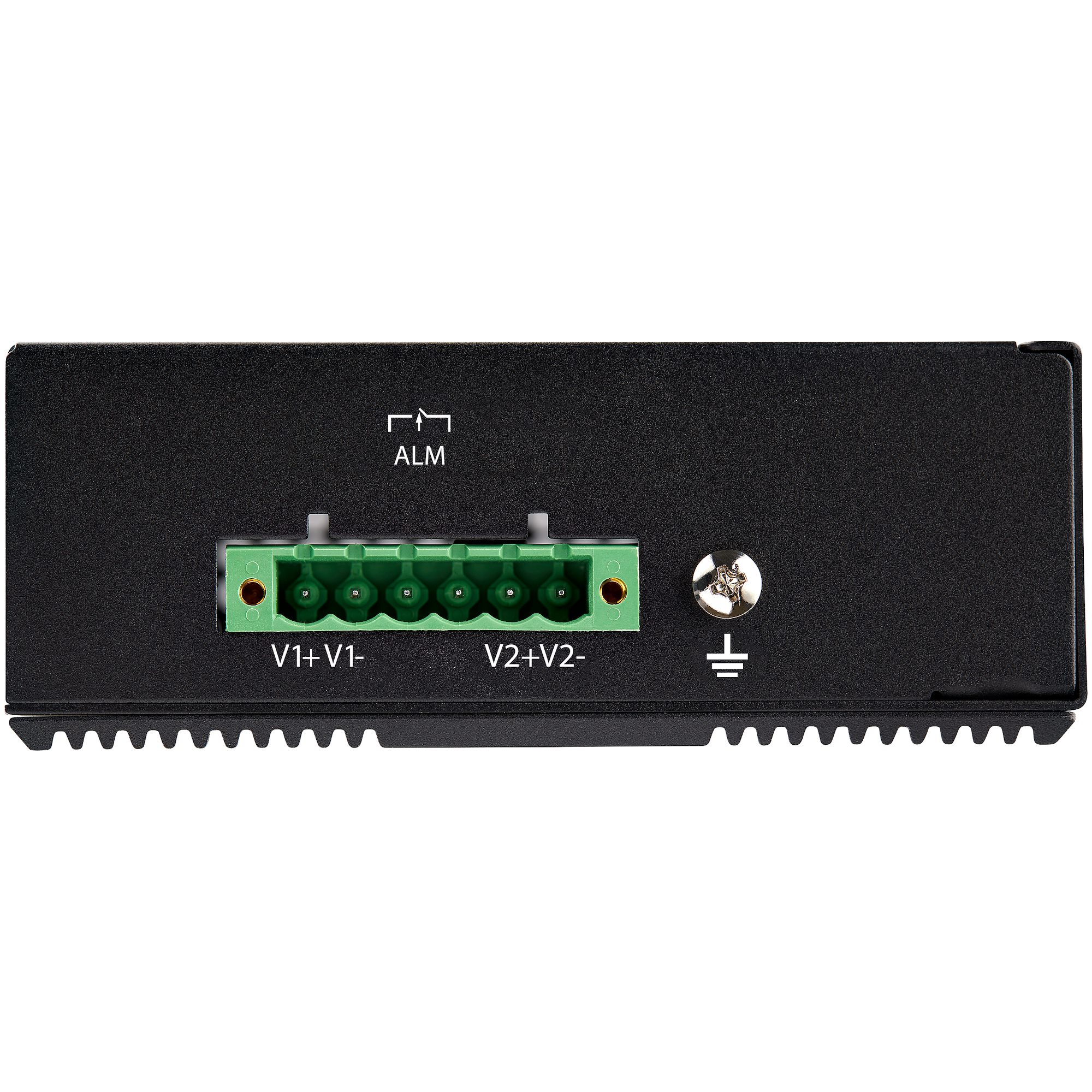

| Terminal block port | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 142 mm |
| Height | 39.6 mm |
| Weight | 536 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Package width | 167 mm |
| Package depth | 215 mm |
| Package height | 67 mm |
| Package weight | 781 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, UL, ROhS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 368 mm |
| Master (outer) case length | 368 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 254 mm |
| Products per master (outer) case | 10 pc(s) |
