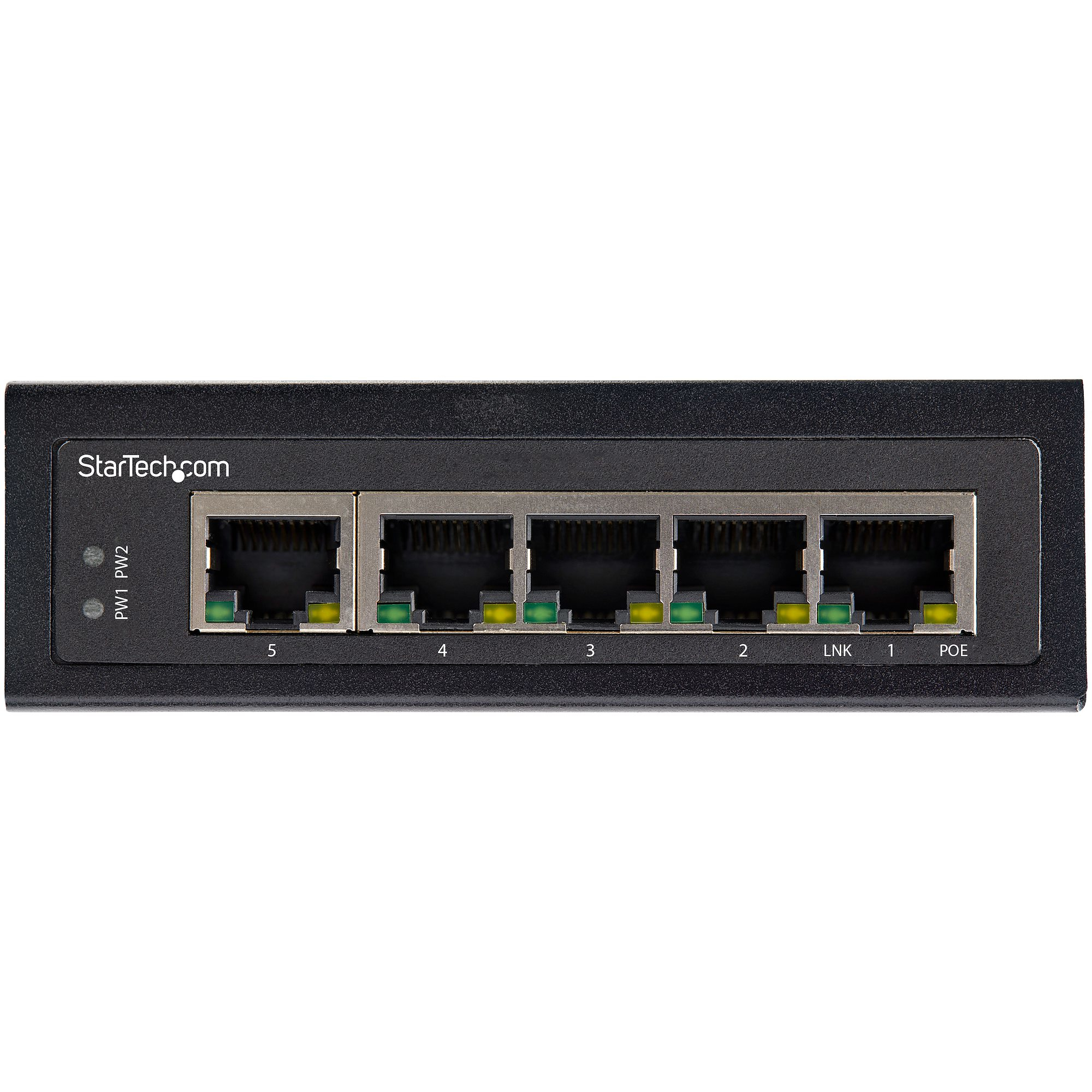

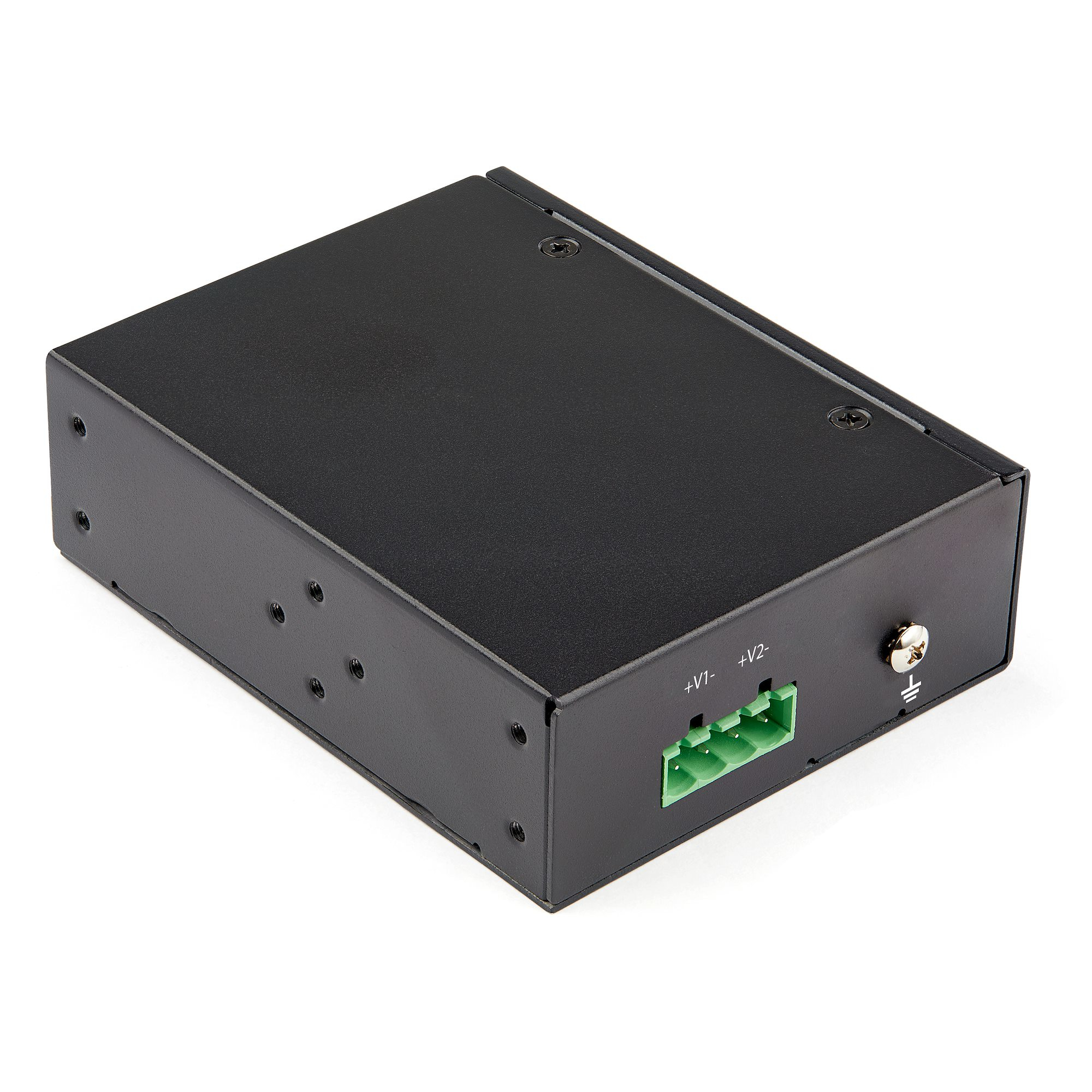

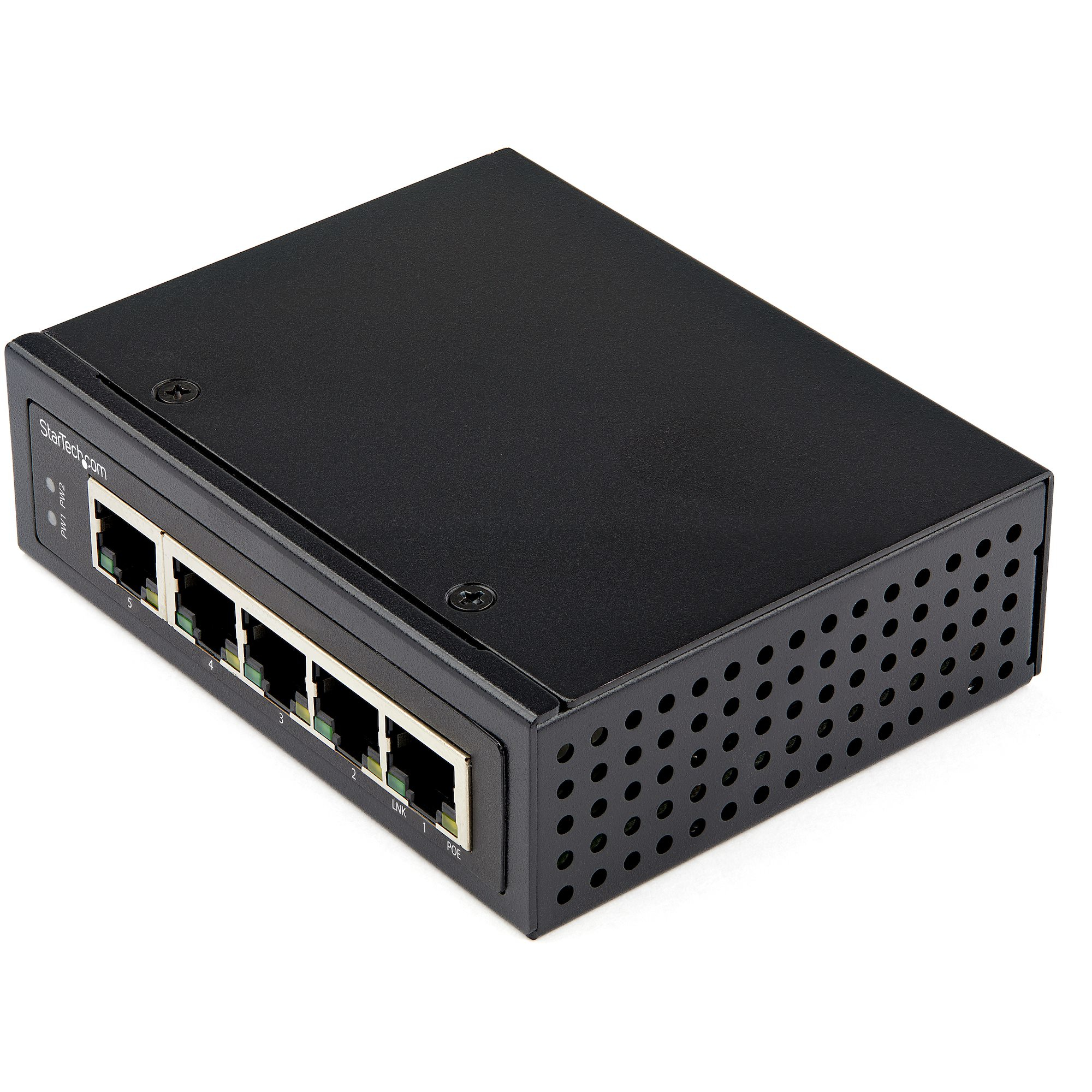

Industrial 5 Port Gigabit PoE Switch
30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Sw
Model IESC1G50UPEAN 065030889629
49 specifications
- Weight150.6 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- Jumbo frames supportYes
Overview
- Weight
- 150.6 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Jumbo frames support
- Yes
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- IESC1G50UP
- Part number
- IESC1G50UP
- EAN / UPC
- 065030889629
- Also known as
- StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Sw
Specifications
49 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Safety | EN60950-1 |
Performance
| Specification | Value |
|---|---|
| Maximum cable length | 100 m |
| Mean time between failures (MTBF) | 538451 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 48 - 56 V |
| Surge protection | Yes |
| Surge protection voltage | 2 kV |
| Power plug type | Type N |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|

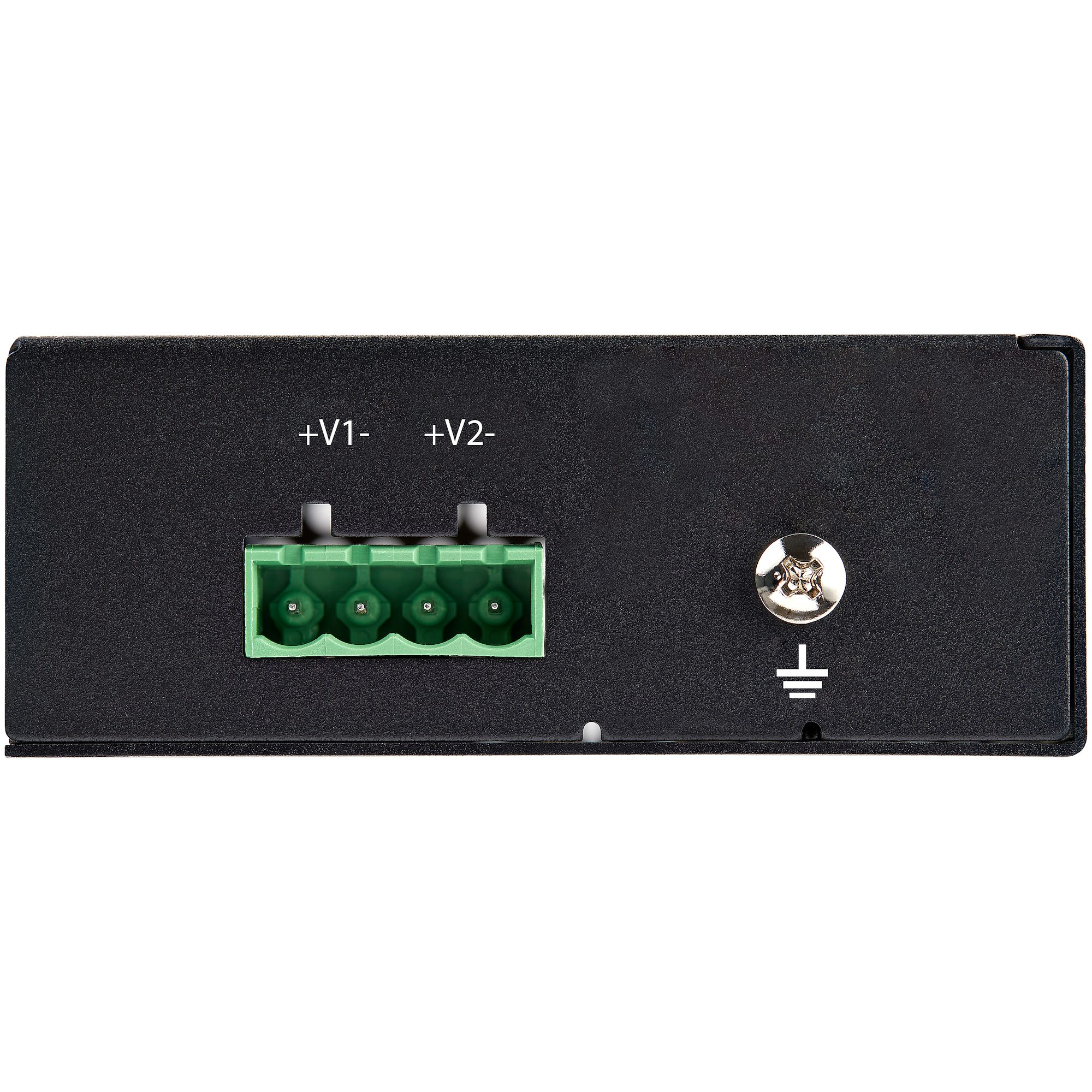

| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Weight | 150.6 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Package width | 168 mm |
| Package depth | 214 mm |
| Package height | 68 mm |
| Package weight | 392.6 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, UL |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 362 mm |
| Master (outer) case length | 366 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 10 pc(s) |
