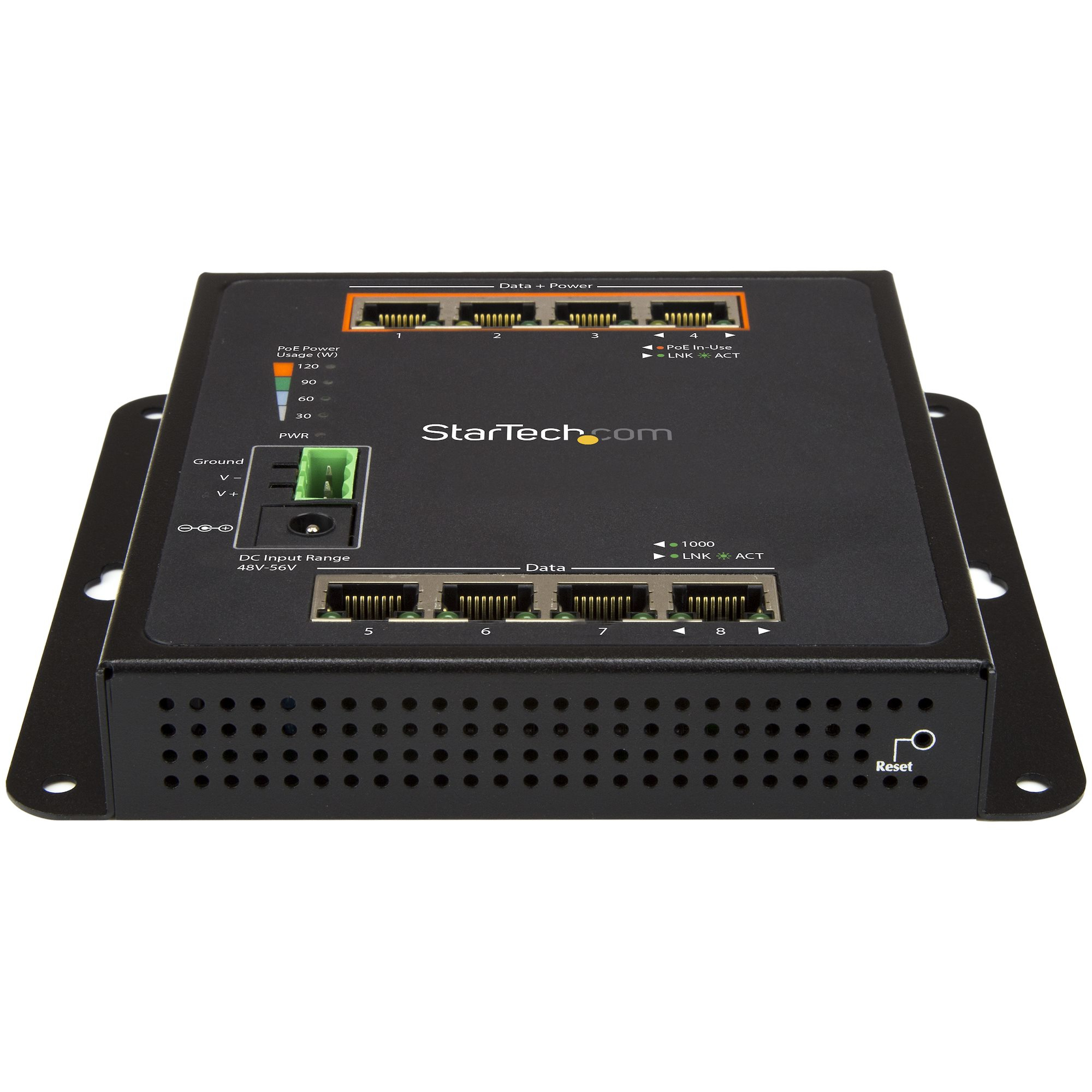

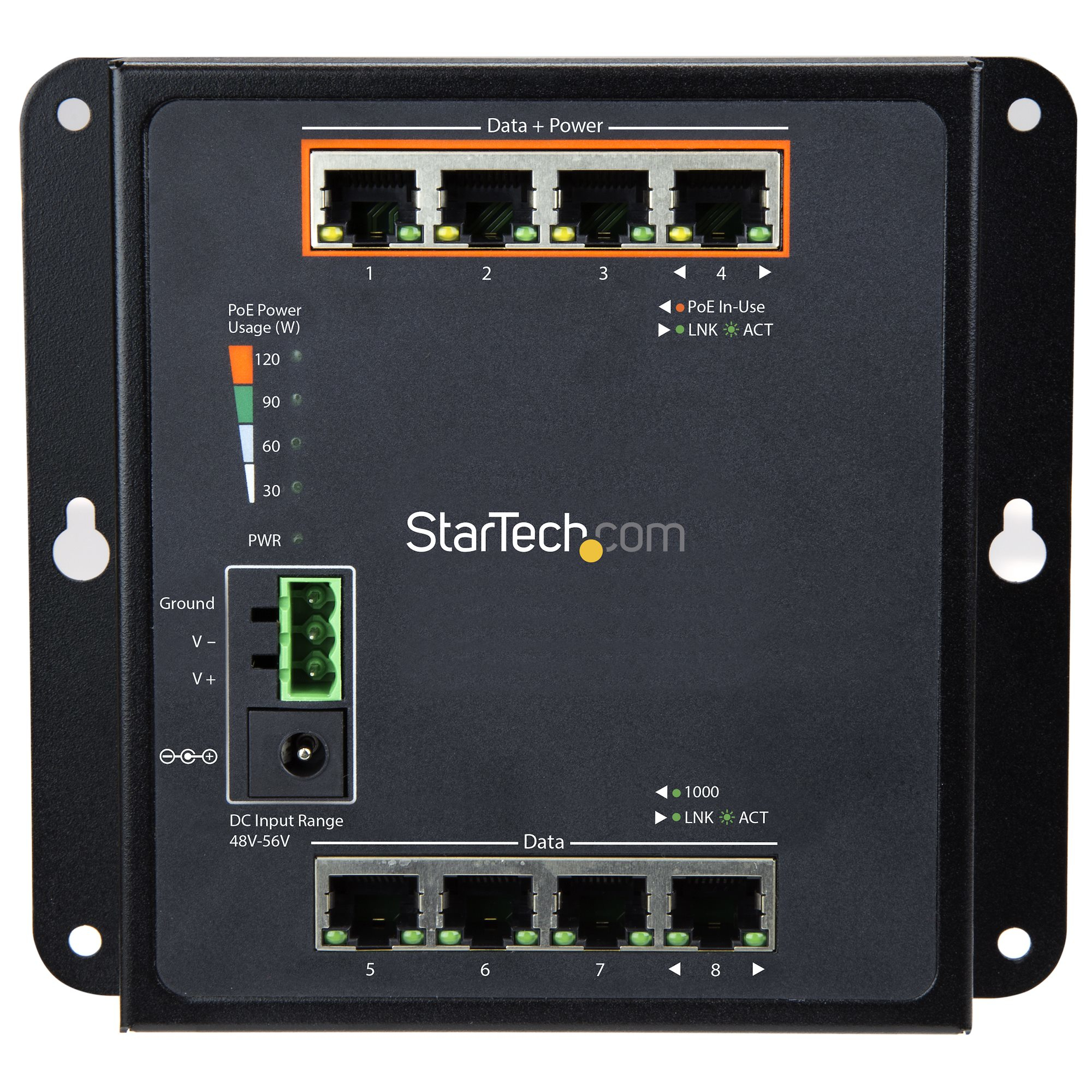

Industrial 8 Port Gigabit PoE Switch - 4 x PoE+
30W - Power Over Ethernet - Hardened GbE Layer/L2 Managed Switch - Rugged High Power Gigabit Networ
Model IES81GPOEWEAN 065030871112
55 specifications
- Speed2000 Mbit/s
- Weight650 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 2000 Mbit/s
- Weight
- 650 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- IES81GPOEW
- Part number
- IES81GPOEW
- EAN / UPC
- 065030871112
- Also known as
- StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet - Hardened GbE Layer/L2 Managed Switch - Rugged High Power Gigabit Networ
Specifications
55 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Maximum data transfer rate | 2000 Mbit/s |
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Input voltage | 12 - 48 V |
| Power plug type | Type M |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 148 mm |
| Depth | 134 mm |
| Height | 25 mm |
| Weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Package width | 308 mm |
| Package depth | 176 mm |
| Package height | 92 mm |
| Package weight | 930 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 335 mm |
| Master (outer) case length | 363 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 475 mm |
| Products per master (outer) case | 10 pc(s) |
