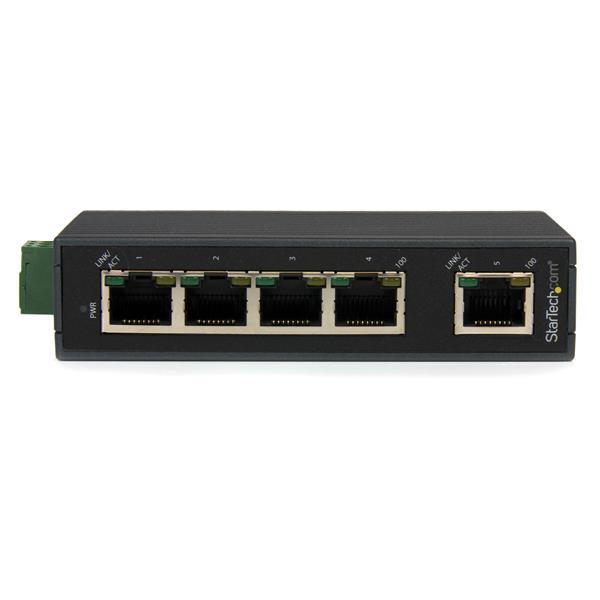

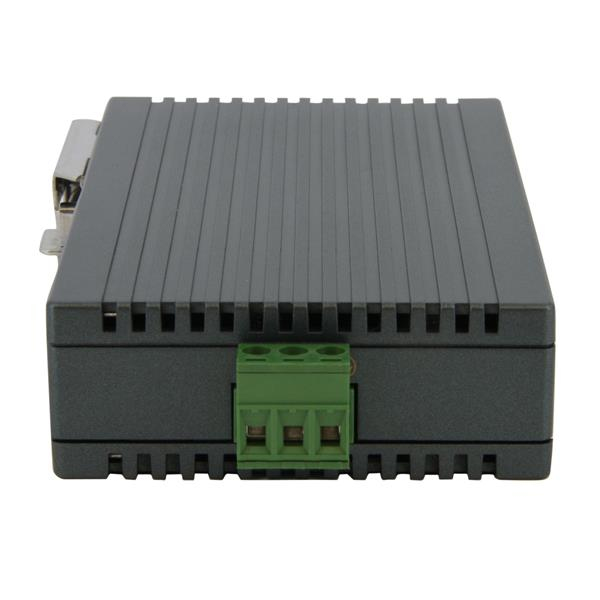

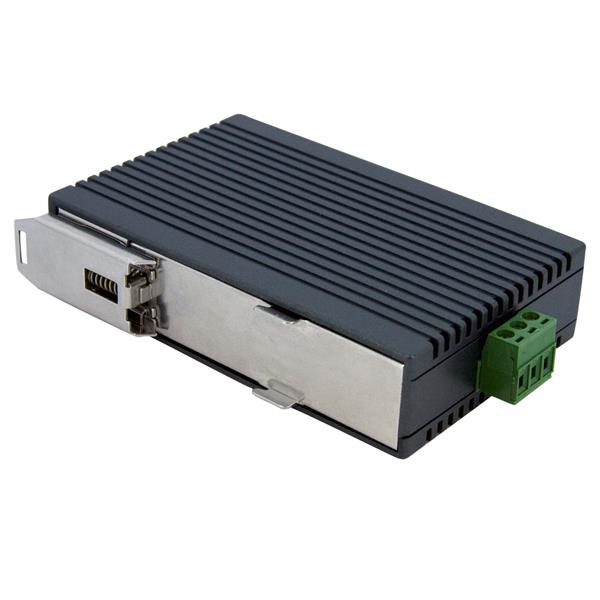

5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAA
Model IES5102EAN 065030859745
42 specifications
- Speed200 Mbit/s
- Weight148 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Speed
- 200 Mbit/s
- Weight
- 148 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- IES5102
- Part number
- IES5102
- EAN / UPC
- 065030859745, 5054629182659
- Also known as
- StarTech.com 5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAA
Specifications
42 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Regulatory Approvals | EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea |
Performance
| Specification | Value |
|---|---|
| Buffer size | 56 KB |
| Maximum cable length | 100 m |
| Maximum data transfer rate | 200 Mbit/s |
| Mean time between failures (MTBF) | 1179133 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 - 48 V |
| Power consumption (max) | 2.12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 25 mm |
| Depth | 70 mm |
| Height | 110 mm |
| Weight | 148 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Package width | 177 mm |
| Package depth | 201 mm |
| Package height | 81 mm |
| Package weight | 312 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 425 mm |
| Master (outer) case length | 388 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 236 mm |
| Products per master (outer) case | 10 pc(s) |
