Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots
30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Co
Model IES1G52UPDINEAN 065030889582
55 specifications
- Weight492 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- Switching capacity12 Gbit/s
Overview
- Weight
- 492 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Switching capacity
- 12 Gbit/s
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- IES1G52UPDIN
- Part number
- IES1G52UPDIN
- EAN / UPC
- 065030889582
- Also known as
- StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Co
Specifications
55 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |

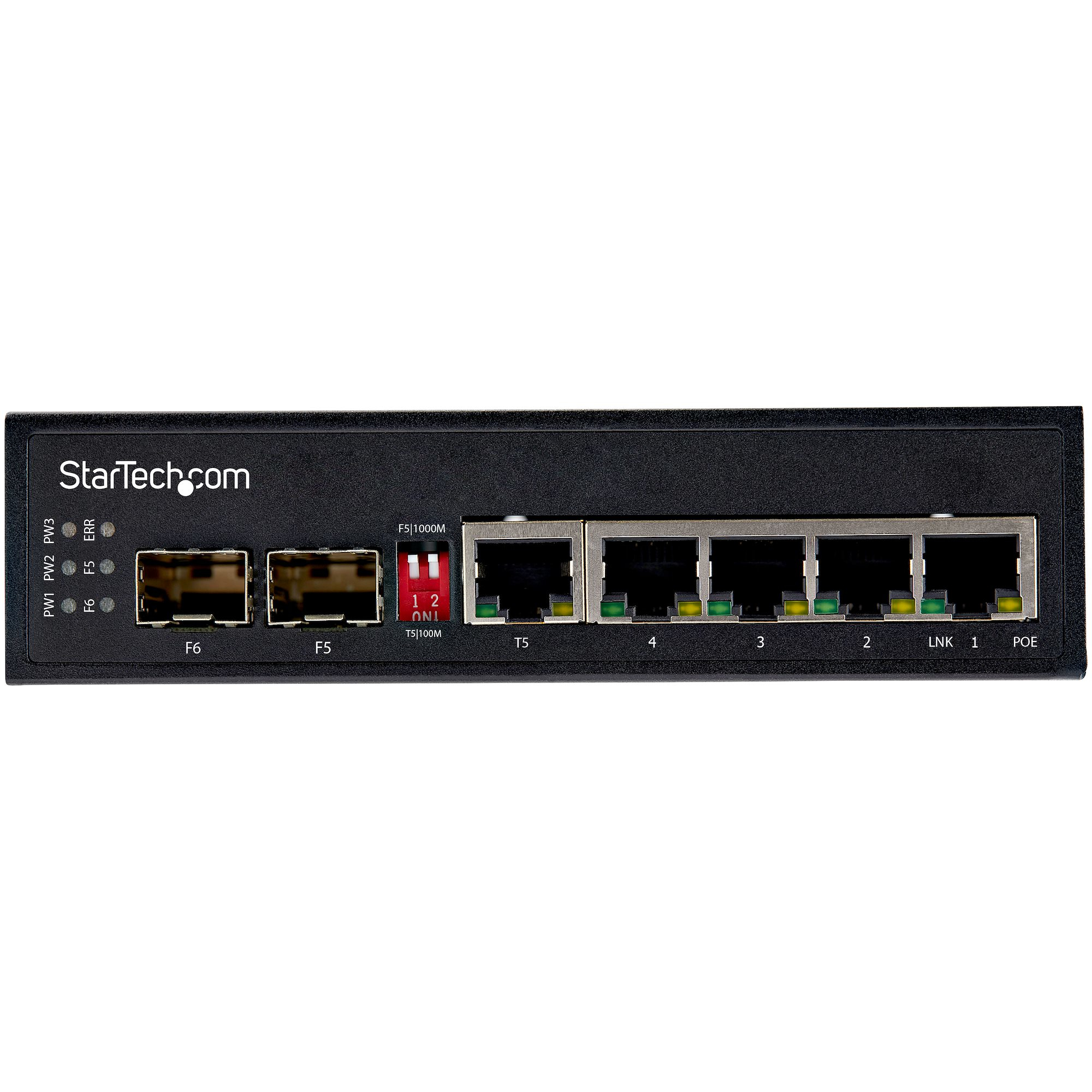

| LED indicators | Link, PoE, Power |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Safety | EN60950-1, MET (UL) 60950-1 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 525058 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 48 - 56 V |
| Power consumption (max) | 126 W |
| Surge protection | Yes |
| Surge protection voltage | 2 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|

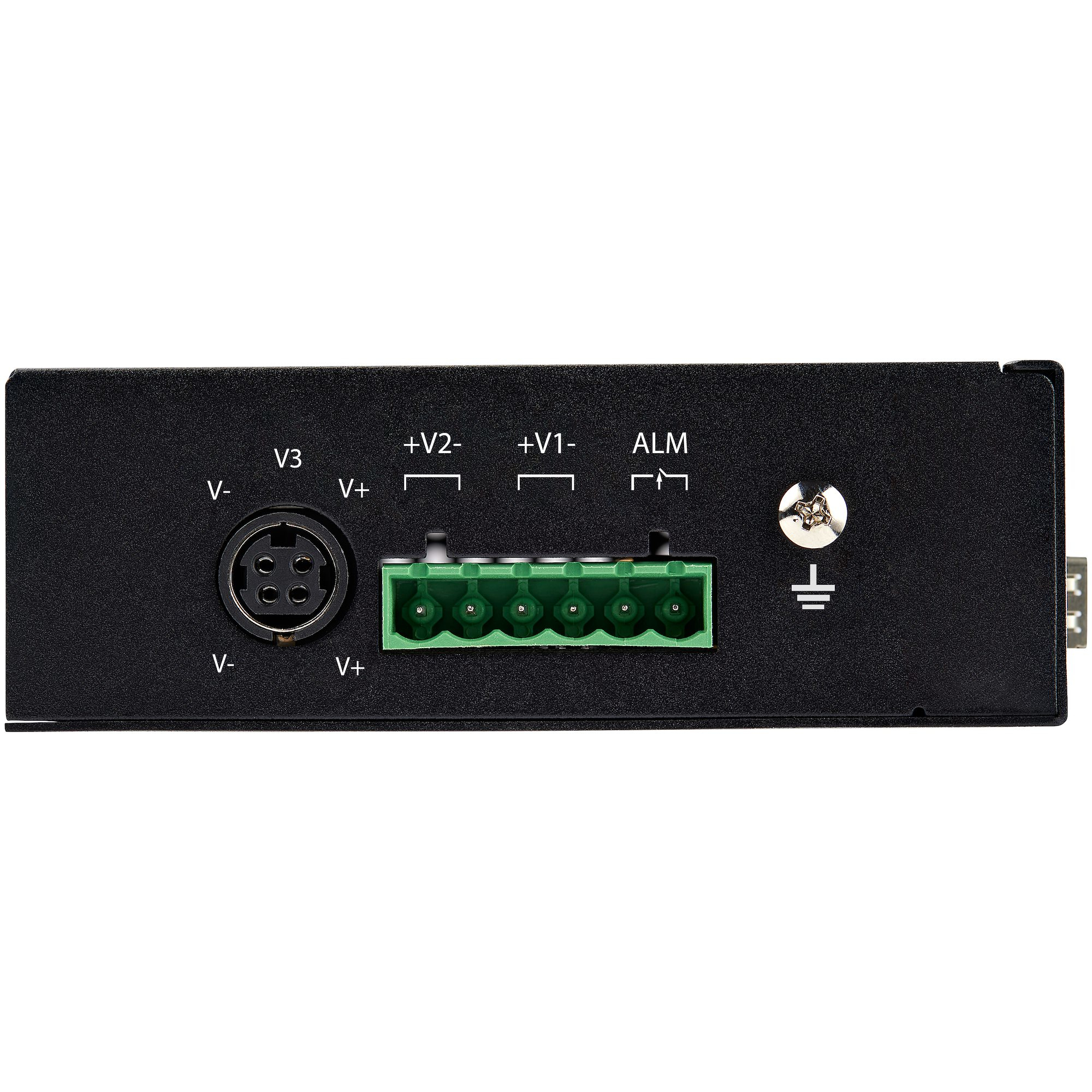

| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 142 mm |
| Height | 36.2 mm |
| Weight | 492 g |

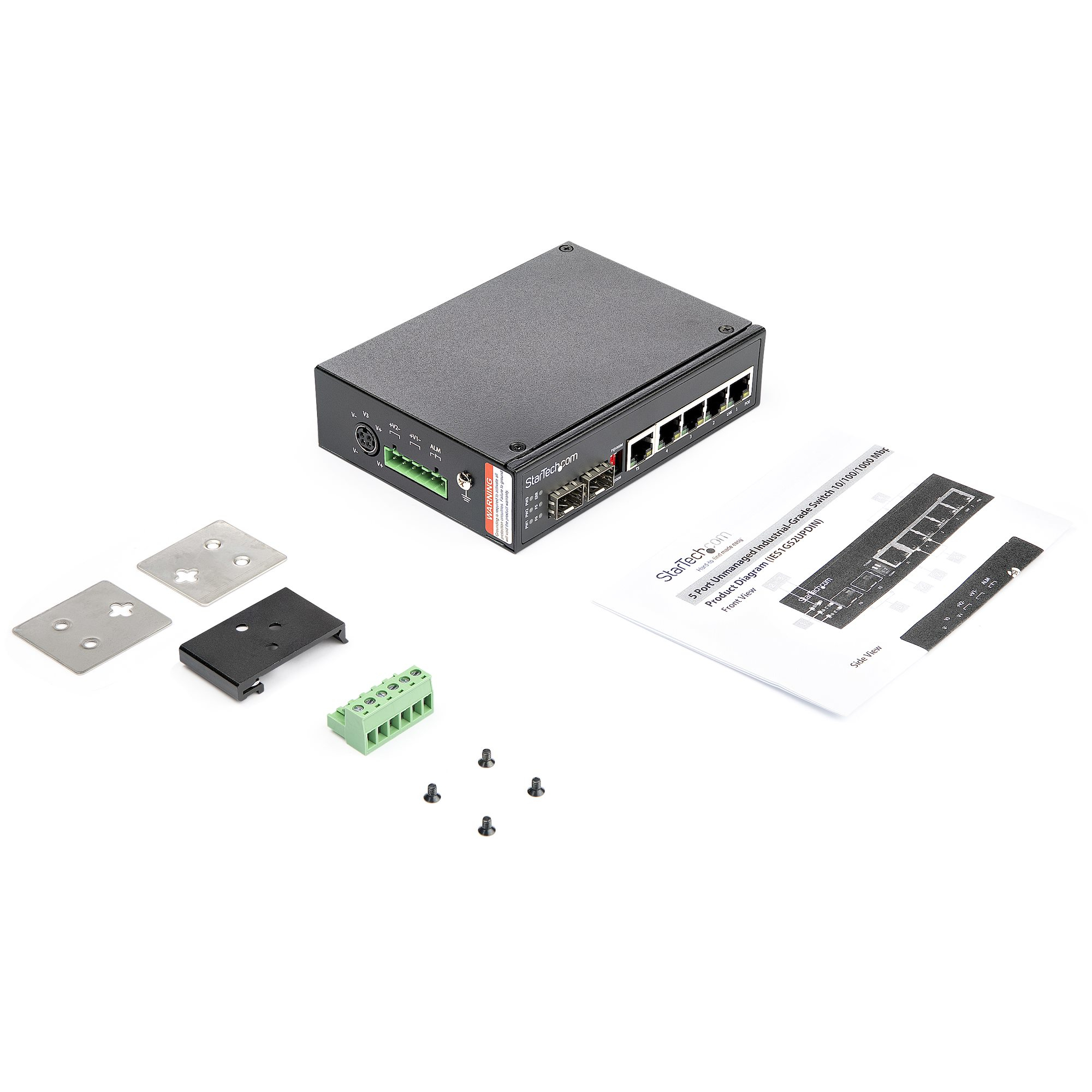

Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Package width | 211 mm |
| Package depth | 162 mm |
| Package height | 64 mm |
| Package weight | 737 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS, FCC, UL |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 10 pc(s) |
