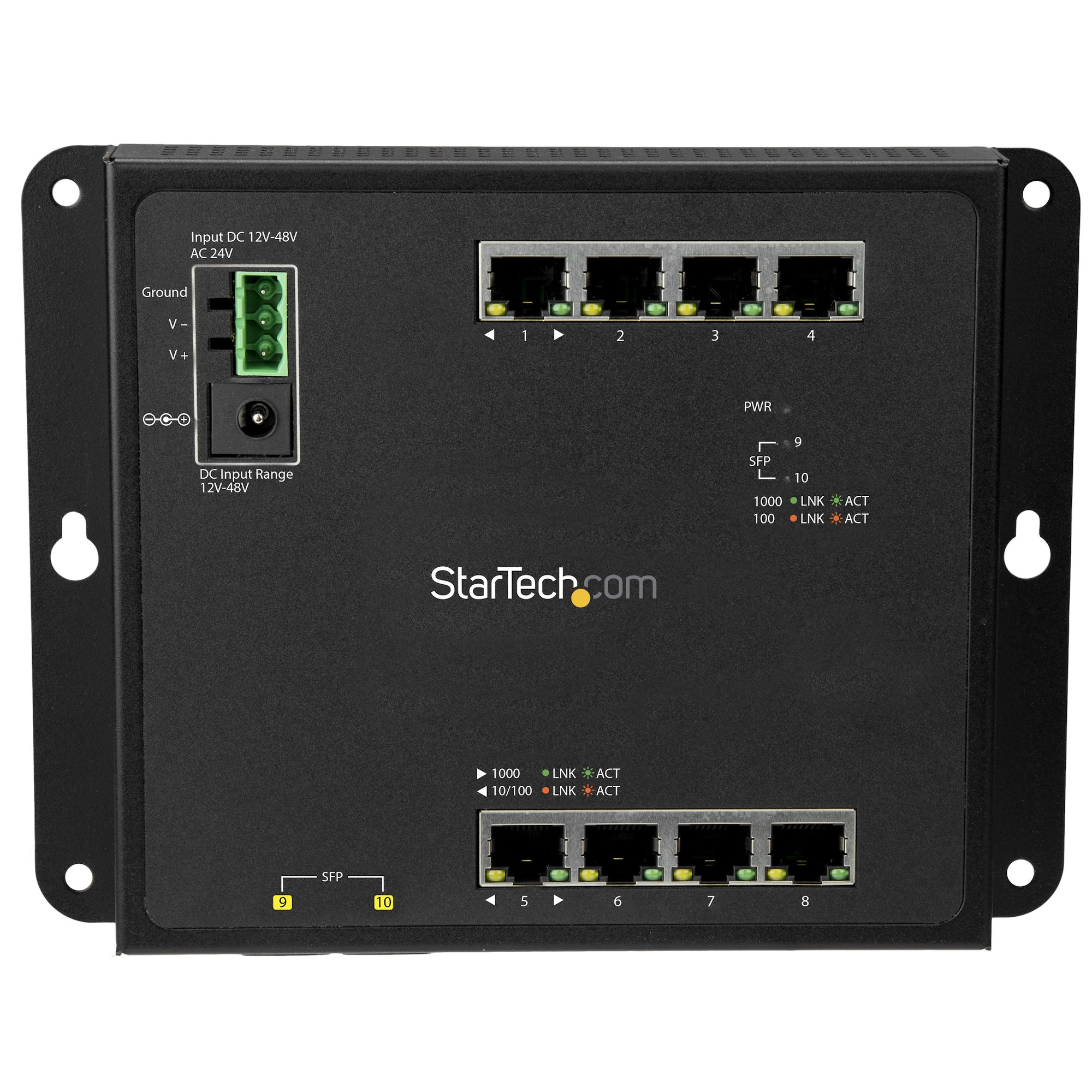

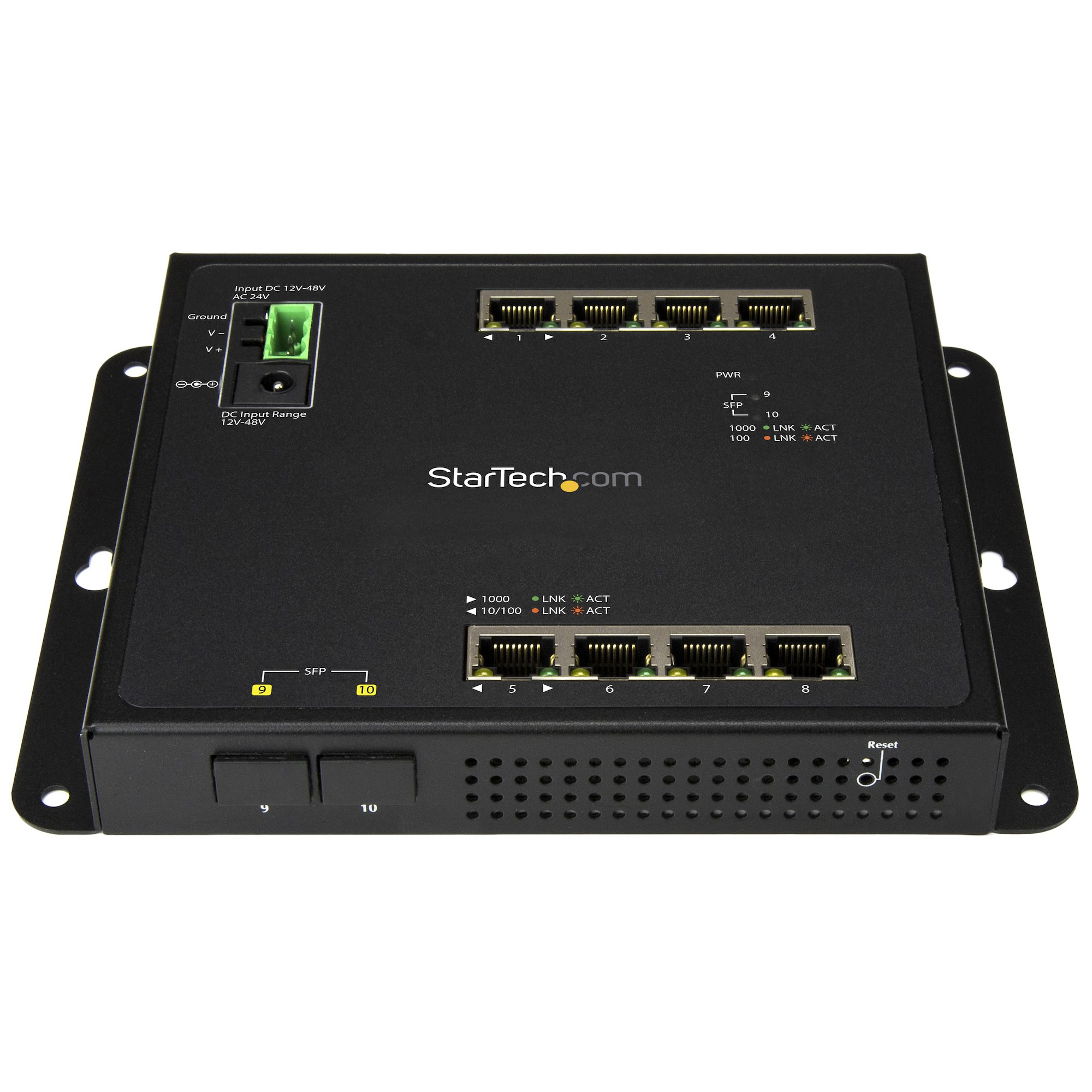

Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots - Hardened GbE L2 Managed Network Switch - Rugged RJ45 LAN Layer 2 Switch Din Rail Wall
Model IES101G2SFPWEAN 065030868495
57 specifications
- Speed2000 Mbit/s
- Weight626 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 2000 Mbit/s
- Weight
- 626 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- IES101G2SFPW
- Part number
- IES101G2SFPW
- EAN / UPC
- 065030868495
- Also known as
- StarTech.com Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots - Hardened GbE L2 Managed Network Switch - Rugged RJ45 LAN Layer 2 Switch Din Rail Wall
Specifications
57 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-SX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity, Link |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Maximum cable length | 100 m |
| Maximum data transfer rate | 2000 Mbit/s |
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power plug type | Type M |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 90 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139 mm |
| Depth | 178 mm |
| Height | 30 mm |
| Weight | 626 g |

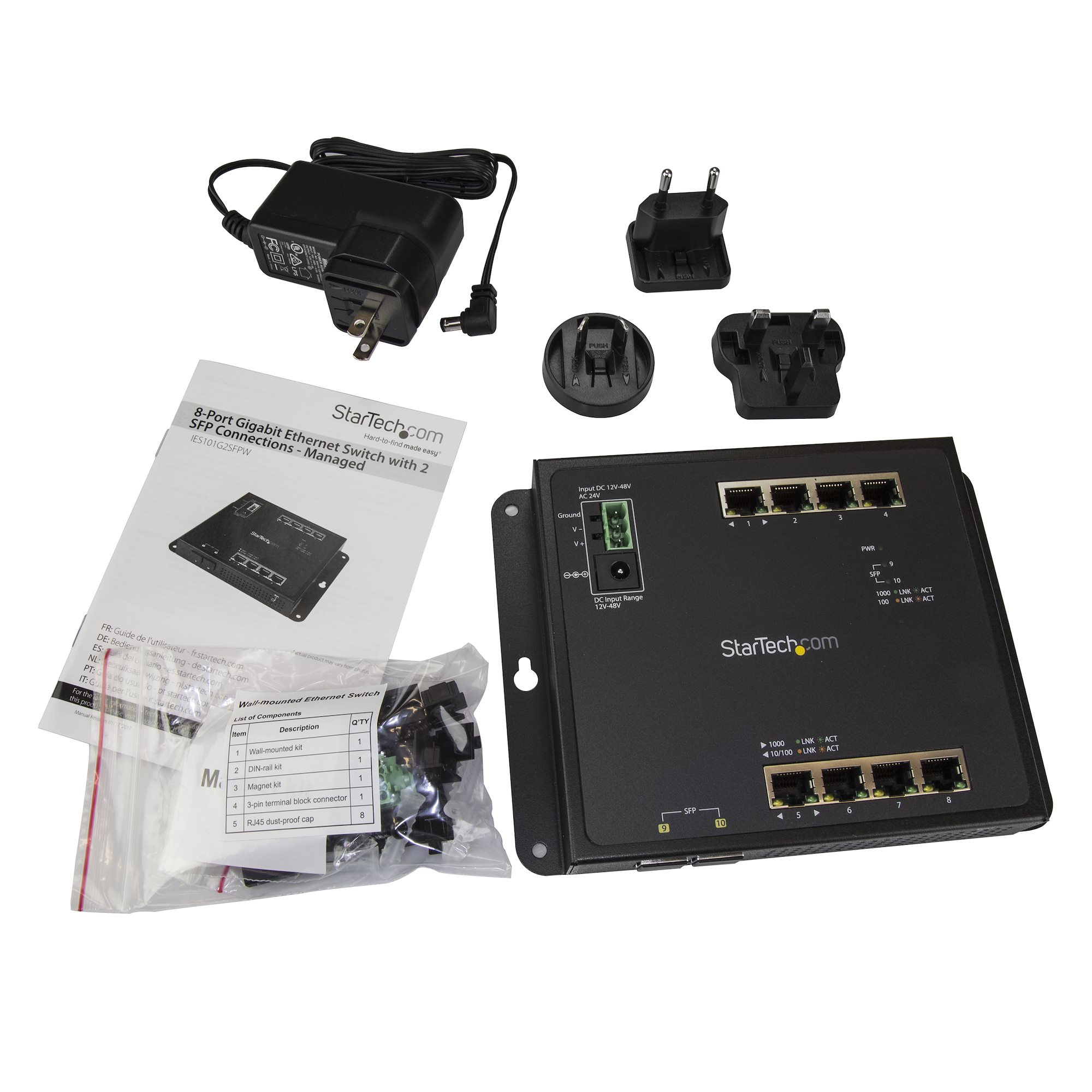

Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| DIN rail included | Yes |
| Dust cap included | Yes |
| Pinlock included | Yes |
| Screws included | Yes |
| Terminal block included | Yes |
| Washers included | Yes |
| Package width | 173 mm |
| Package depth | 303 mm |
| Package height | 91 mm |
| Package weight | 1.11 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 342 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case height | 474 mm |
| Products per master (outer) case | 10 pc(s) |
