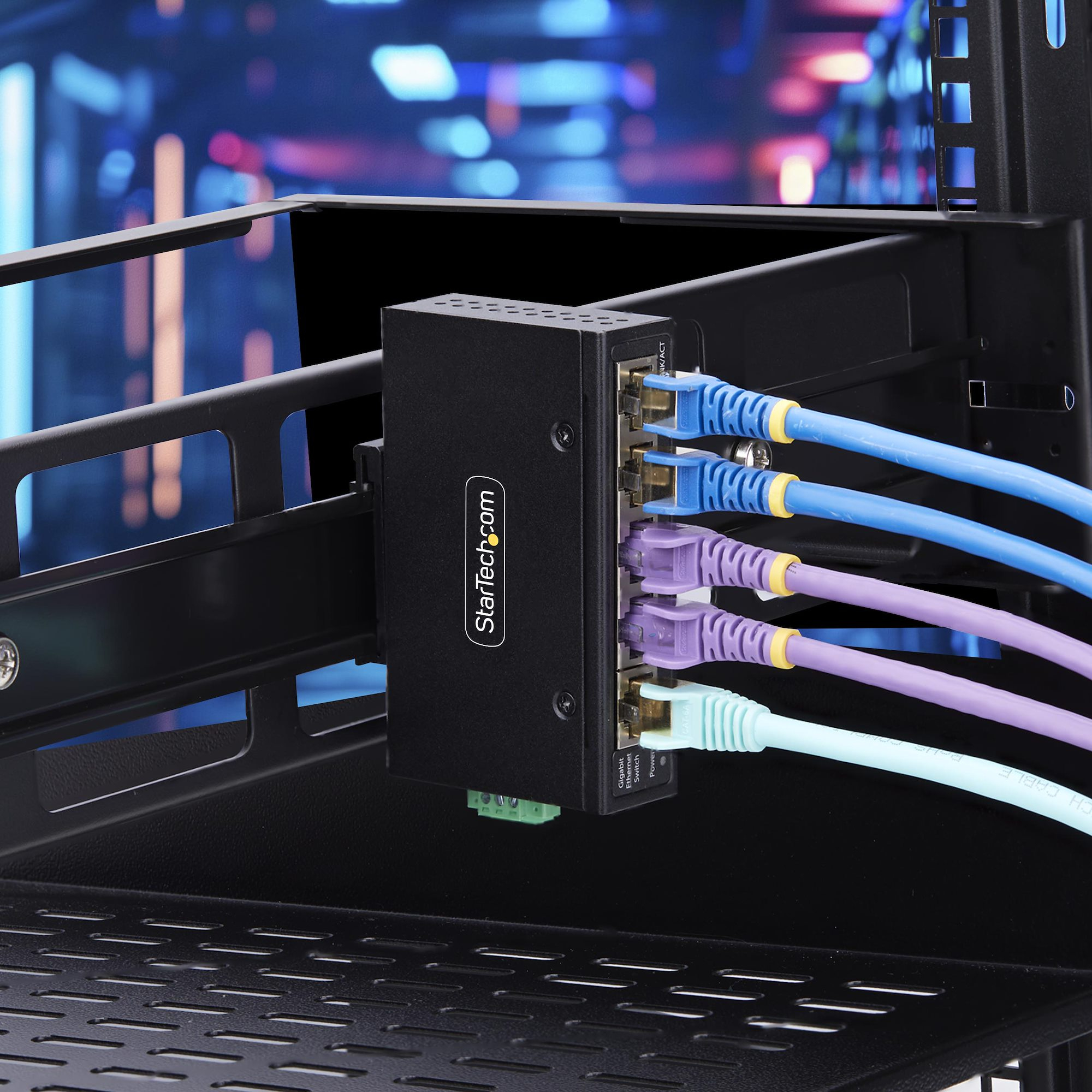

5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compli
Model I51G-ETHERNET-SWITCHEAN 065030909648
46 specifications
- Weight221.7 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- Store-and-forwardYes
Overview
- Weight
- 221.7 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Store-and-forward
- Yes
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- I51G-ETHERNET-SWITCH
- Part number
- I51G-ETHERNET-SWITCH
- EAN / UPC
- 065030909648
- Also known as
- StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compli
Specifications
46 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | Terminal block (3-pin) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 556710 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Input voltage | 9 - 60 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 221.7 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Mounting brackets included | Yes |
| Terminal block included | Yes |
| Package width | 111 mm |
| Package depth | 159 mm |
| Package height | 58 mm |
| Package weight | 293.7 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 355 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 30 pc(s) |
