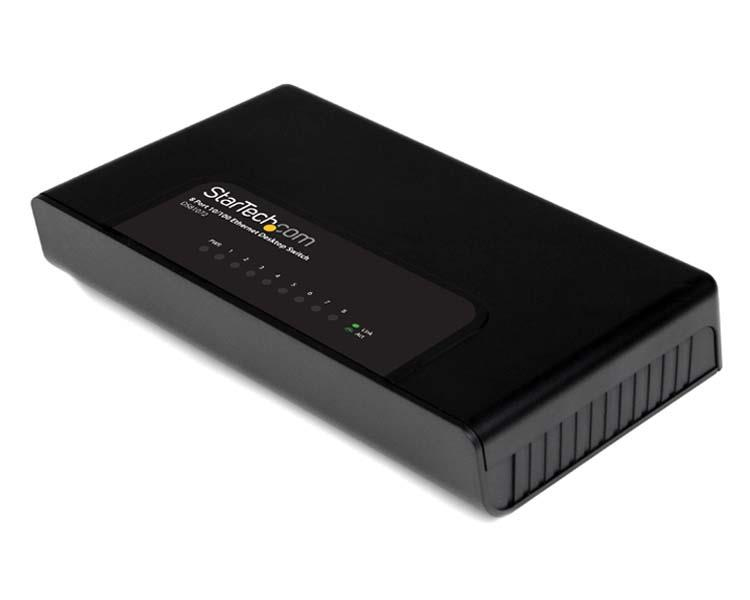

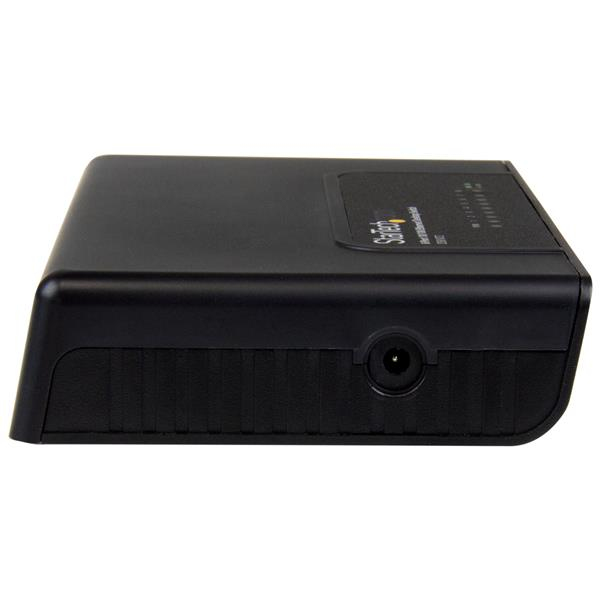

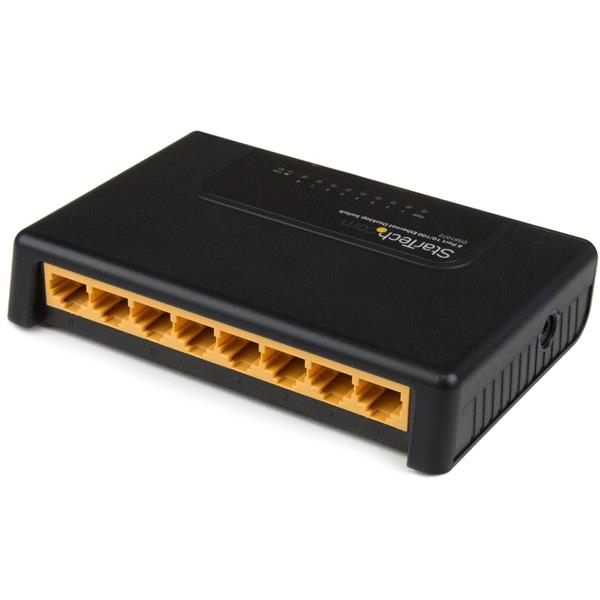

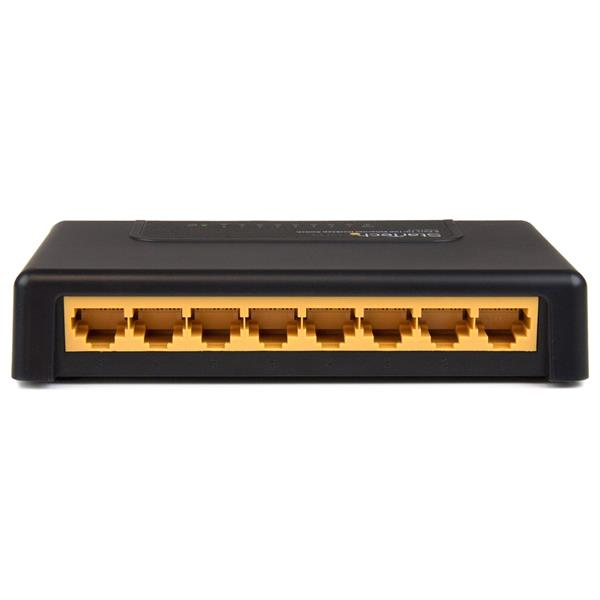

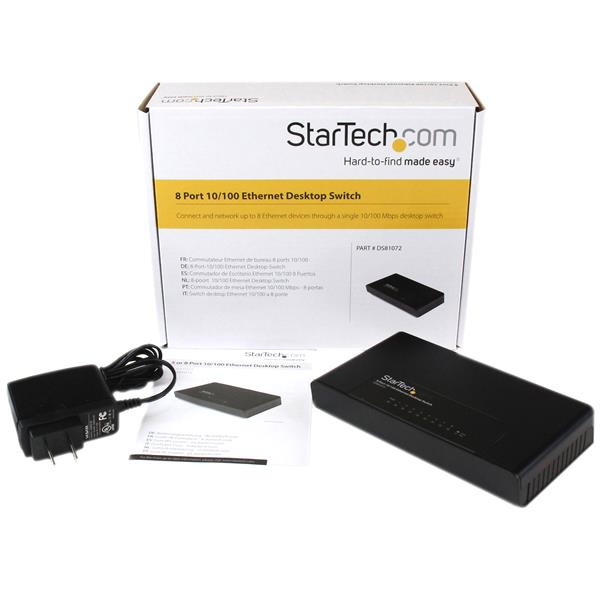

StarTech.com 8 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch
Model DS81072EAN 065030848220
47 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight129 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.3, IEEE 802.3u
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 129 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- DS81072
- Part number
- DS81072
- EAN / UPC
- 065030848220
- Also known as
- StarTech.com 8 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch
Specifications
47 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Number of power supply units | 1 |
| AC input voltage | 110 - 240 V |
| DC input voltage | 9 V |
| Input current | 0.3 A |
| Power consumption (typical) | 3 W |
| Power plug type | Type H |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking features | Fast Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Relative humidity | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 89.1 mm |
| Depth | 140 mm |
| Height | 28 mm |
| Weight | 129 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 167 mm |
| Package depth | 216 mm |
| Package height | 77 mm |
| Package weight | 337 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, REACH |
