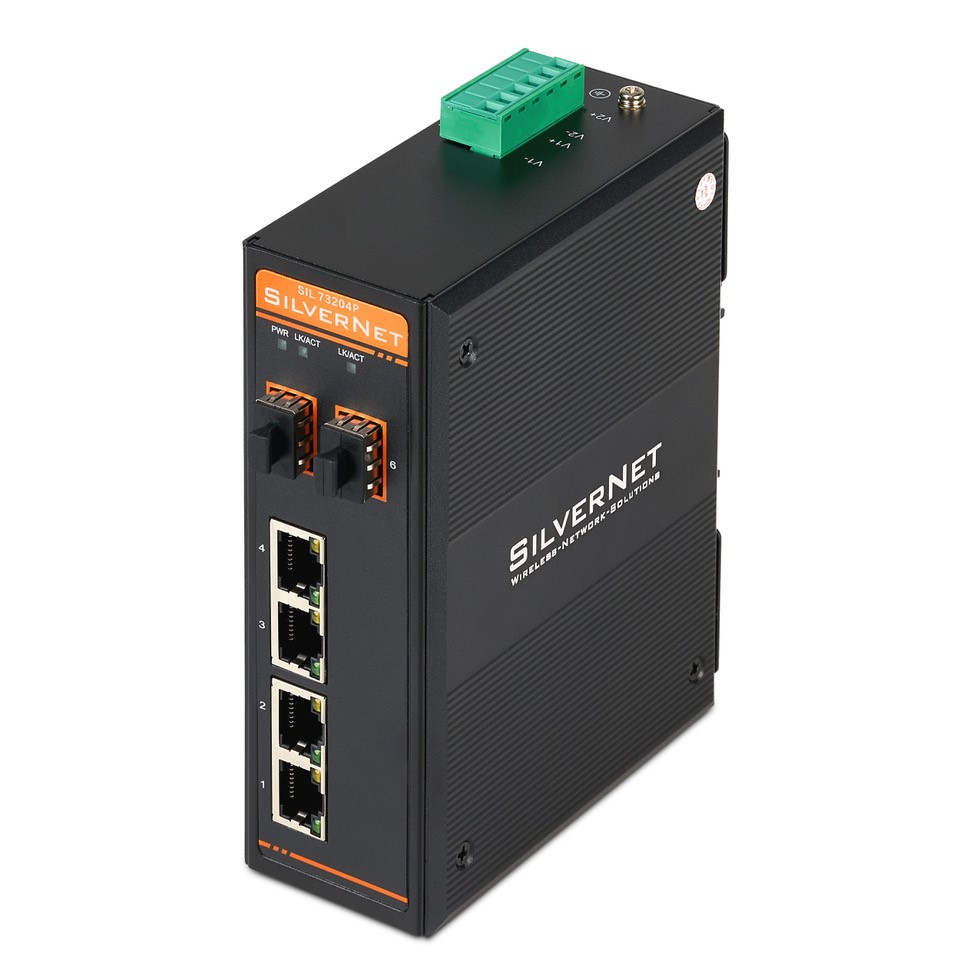

SIL 73204P
Model SIL 73204PEAN 5060693981883
60 specifications
- Weight430 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-FX
Overview
- Weight
- 430 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-FX
- Brand
- SilverNet
- Category
- Network Switch
- Model
- SIL 73204P
- Part number
- SIL 73204P
- EAN / UPC
- 5060693981883
- Also known as
- SilverNet SIL 73204P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
60 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
| Full duplex | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-FX |
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 10 µs |
| Latency (1 Gbps) | 10 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 2 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Data, LAN, Power |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | No |
| Number of power supply units | 1 |
| DC input voltage | 12 - 56 V |
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35 mm |
| Depth | 90 mm |
| Height | 120 mm |
| Weight | 430 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 225 mm |
| Package depth | 166 mm |
| Package height | 80 mm |
| Package weight | 600 g |
Certificates
| Specification | Value |
|---|---|
| Certification | UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
