SIL 73204MP-BT
Model SIL 73204MP-BTEAN 5060693982422
95 specifications
- Weight600 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 600 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- SilverNet
- Category
- Network Switch
- Model
- SIL 73204MP-BT
- Part number
- SIL 73204MP-BT
- EAN / UPC
- 5060693982422
- Also known as
- SilverNet SIL 73204MP-BT network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
95 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
| User operation log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLANs | 4095 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| Temperature sensor | Yes |
| Reset button | Yes |
| LED indicators | LAN, PoE, Power |

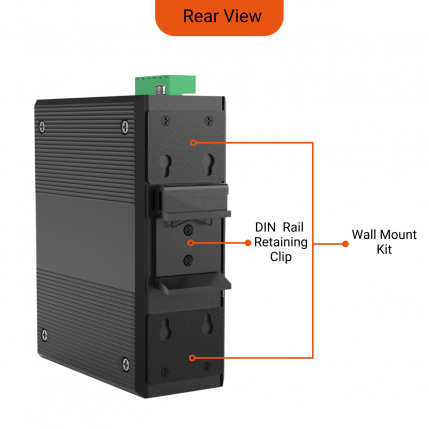

| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Minimum system requirements | Internet Browser |
Power
| Specification | Value |
|---|---|
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power consumption (typical) | 7 W |
| Power consumption (max) | 15 W |
| Power protection features | Overload, Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, PoE+ |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 480 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 40 mm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 170 mm |
| Package depth | 225 mm |
| Package height | 80 mm |
| Package weight | 885 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IE |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
