SIL 731216MP
Model SIL 731216MPEAN 5060693982637
97 specifications
- Weight1.35 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- Port mirroringYes
- MAC address table8000 entries
- Rack mountingNo
Overview
- Weight
- 1.35 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Port mirroring
- Yes
- MAC address table
- 8000 entries
- Rack mounting
- No
- Brand
- SilverNet
- Category
- Network Switch
- Model
- SIL 731216MP
- Part number
- SIL 731216MP
- EAN / UPC
- 5060693982637, 5060693982699
- Also known as
- SilverNet SIL 731216MP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Specifications
97 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |

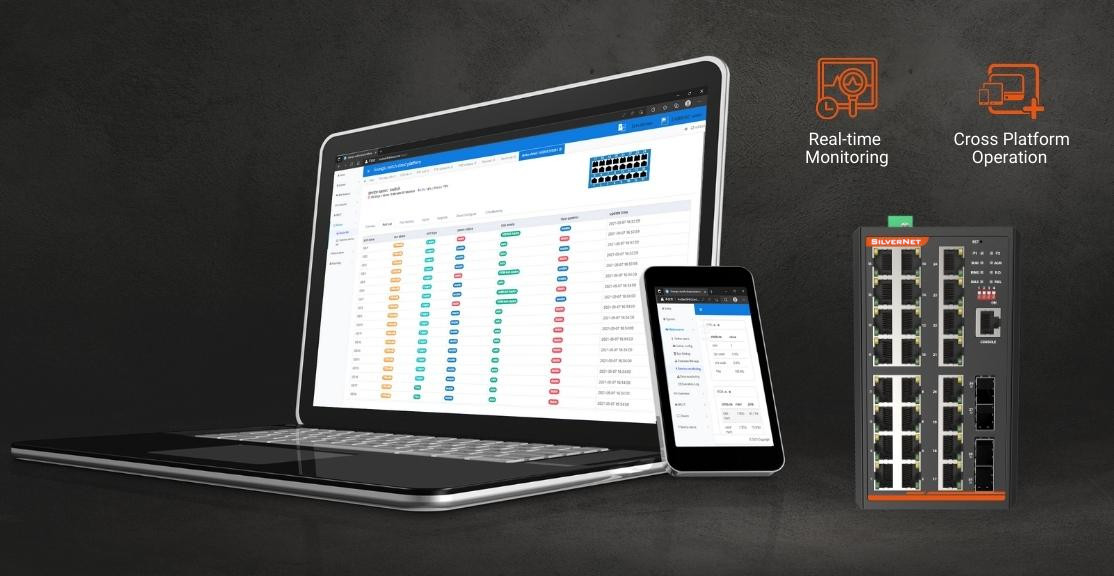

| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
| MIB support | Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 12 |
| Console port | RJ-45 |
| Power connector | Terminal block (2-pin) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Active link detection | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |

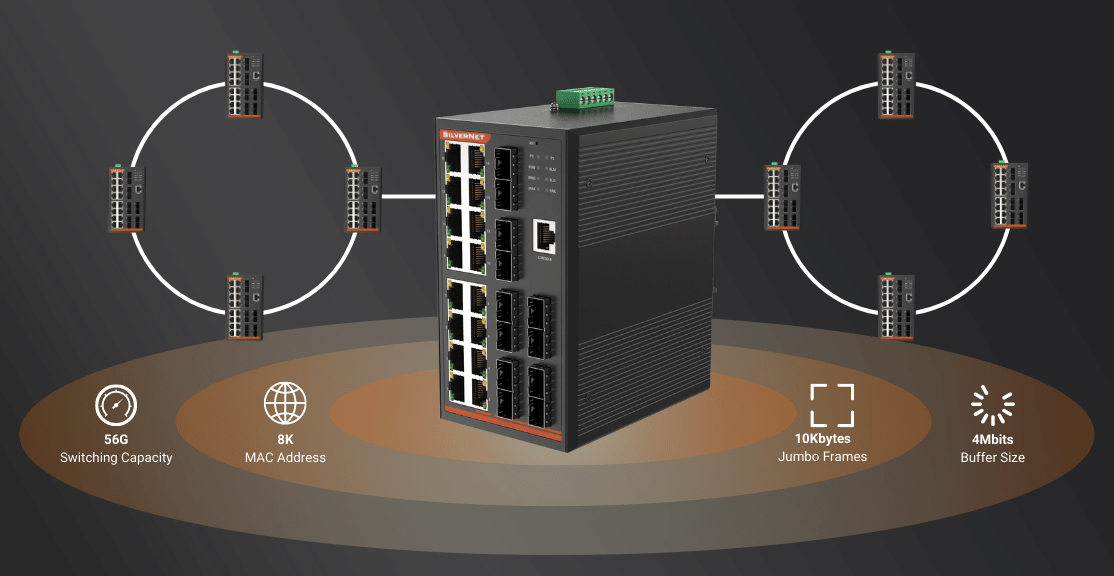

| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Latency (10 Gbps) | 7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP entries | 4096 |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Housing material | Aluminium |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| International Protection (IP) code | IP40 |
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 907476 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 110 - 240 V |
| DC input voltage | 9 - 56 V |
| Power consumption (max) | 10 W |
| Power protection features | Over current, Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|

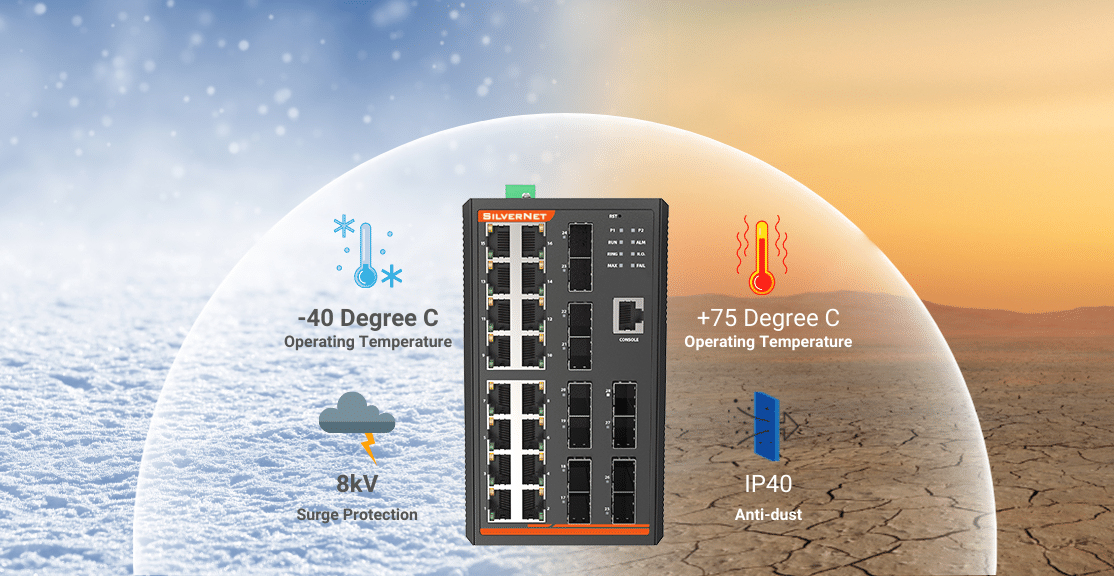

| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 65 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 128 mm |
| Height | 88 mm |
| Weight | 1.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 205 mm |
| Package depth | 230 mm |
| Package height | 110 mm |
| Package weight | 1.78 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508 |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
