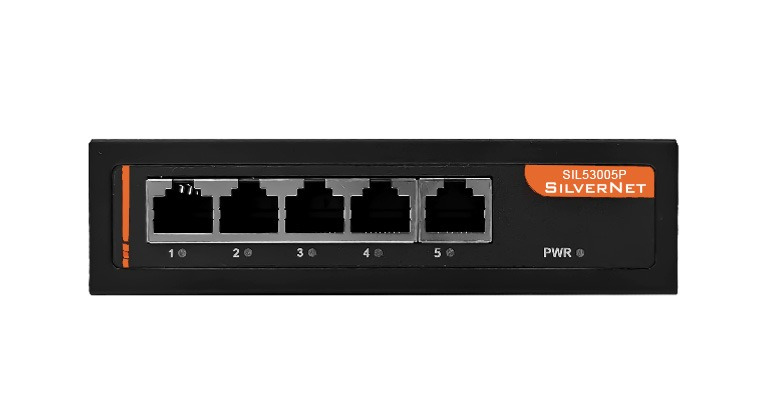

SIL 53005P
Model SIL 53005PEAN 5060693983207
55 specifications
- Noise0 dB
- TypeDesktop/Wall-Mounting
- Weight400 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Noise
- 0 dB
- Type
- Desktop/Wall-Mounting
- Weight
- 400 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- SilverNet
- Category
- Network Switch
- Model
- SIL 53005P
- Part number
- SIL 53005P
- EAN / UPC
- 5060693983207
- Also known as
- SilverNet SIL 53005P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
Specifications
55 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| MAC address entries | Blackhole MAC address entries, Static MAC address entries |
Design
| Specification | Value |
|---|---|
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, Link, Power |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | EN55032 Class A, CISPR 32 FCC Part 15B Class A, EN61000 4 2 (ESD) EN61000 4 3 (RS) EN61000 4 4 (EFT) EN61000 4 5 (Surge) EN61000 4 6 (CS) EN61000 4 8 (PFMF) |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 100819 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 18 W |
| Power protection features | Overload, Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 115 mm |
| Height | 33 mm |
| Weight | 400 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC/EN 62368-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 RoHS |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
