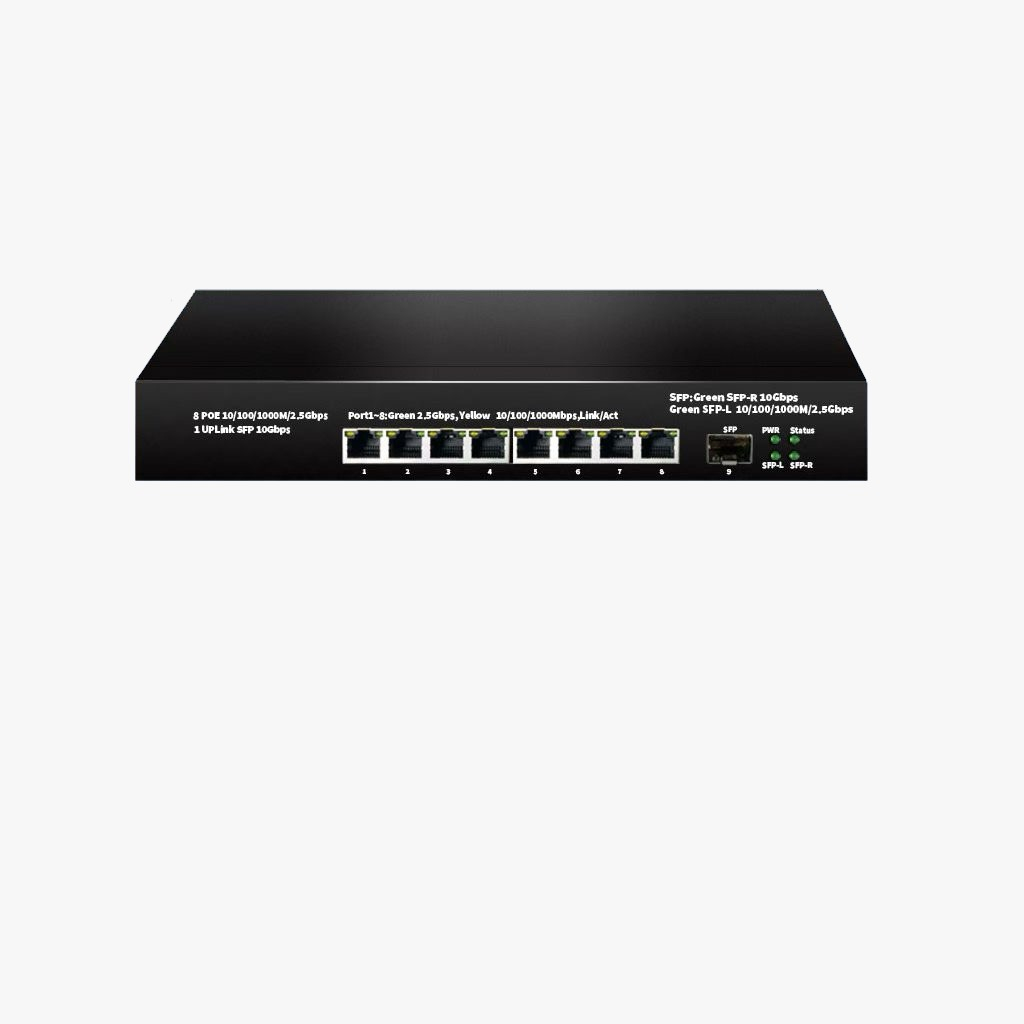

SIL 45108P-10G
Model SIL 45108P-10GEAN 5060693983184
29 specifications
- Weight1.1 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table4000 entries
Overview
- Weight
- 1.1 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 4000 entries
- Brand
- SilverNet
- Category
- Network Switch
- Model
- SIL 45108P-10G
- Part number
- SIL 45108P-10G
- EAN / UPC
- 5060693983184
- Also known as
- SilverNet SIL 45108P-10G network switch Unmanaged L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey
Specifications
29 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 60 Gbit/s |
| Forwarding rate | 44 Mpps |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 185 mm |
| Height | 45 mm |
| Weight | 1.1 kg |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
