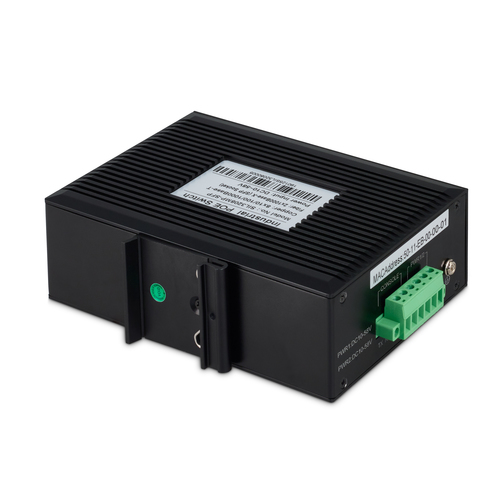

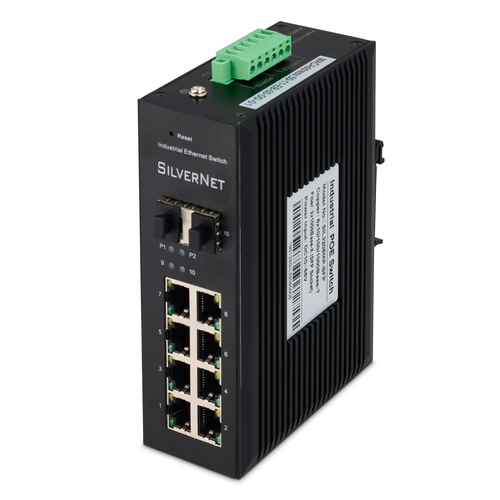

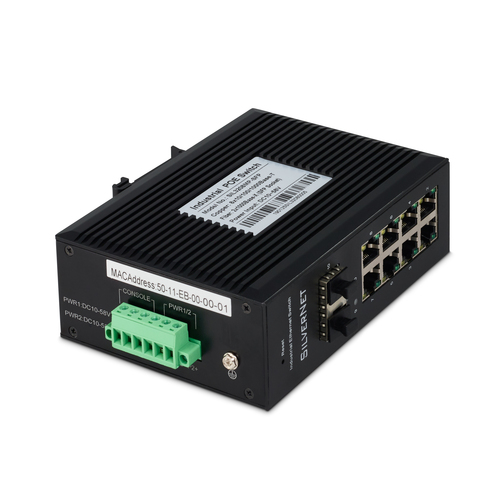

3208MP-SFP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model 3208MP-SFPPart no. SIL 3208MP-SFPEAN 5060693980442
91 specifications
- Weight580 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-FX
Overview
- Weight
- 580 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-FX
- Brand
- SilverNet
- Category
- Network Switch
- Model
- 3208MP-SFP
- Part number
- SIL 3208MP-SFP
- EAN / UPC
- 5060693980442
- Also known as
- SilverNet 3208MP-SFP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
91 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| User operation log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLANs | 4095 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-FX |
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 10 µs |
| Latency (1 Gbps) | 10 µs |
| Latency (10 Gbps) | 10 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 8 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 500 |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | LAN, Power |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
Power
| Specification | Value |
|---|---|
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 12 - 56 V |
| Power consumption (typical) | 8 W |
| Power protection features | Over current, Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, PoE+ |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 143 mm |
| Depth | 104 mm |
| Height | 48 mm |
| Weight | 580 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 220 mm |
| Package depth | 70 mm |
| Package height | 170 mm |
| Package weight | 715 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 |
