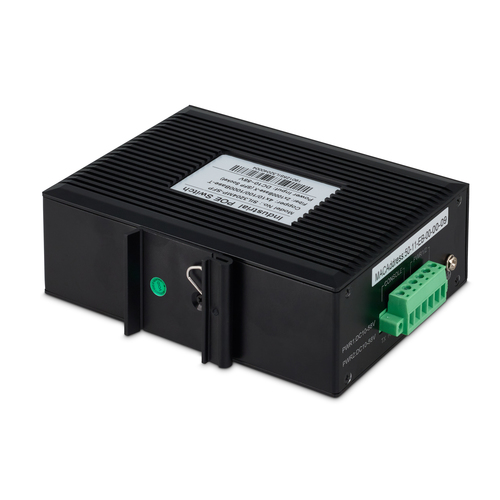

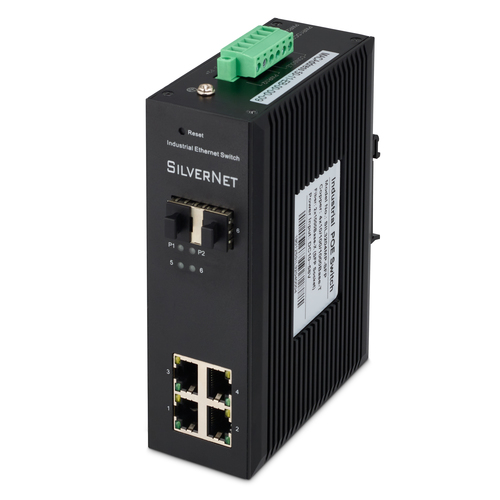

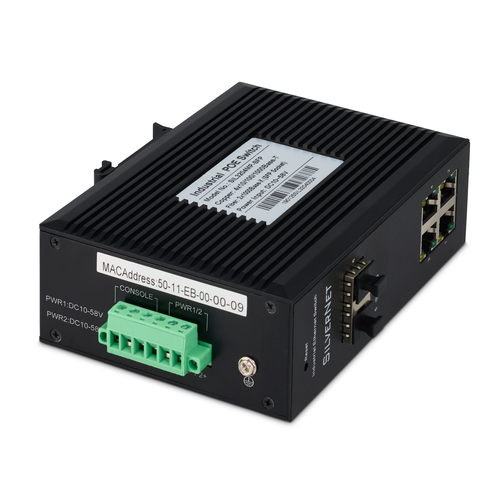

SilverNet 3204MP-SFP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

3204MP-SFP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model 3204MP-SFPPart no. SIL 3204MP-SFPEAN 5060693980435

93 specifications

Weight580 g
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity4
10G supportNo
Fiber ethernet cabling technology1000BASE-FX

See all specifications

Overview

Weight: 580 g
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 4
10G support: No
Fiber ethernet cabling technology: 1000BASE-FX

Brand: SilverNet
Category: Network Switch
Model: 3204MP-SFP
Part number: SIL 3204MP-SFP
EAN / UPC: 5060693980435
Also known as: SilverNet 3204MP-SFP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

93 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
System event log	Yes
User operation log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	4
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-TX, 100BASE-TX, 1000BASE-TX
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
IP routing	Yes
Policy-based routing	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Number of VLANs	4095

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-FX
Fiber type	Multi-mode

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	12 Gbit/s
Store-and-forward	Yes
Latency (10-100 Mbps)	10 µs
Latency (1 Gbps)	10 µs
Latency (10 Gbps)	10 µs
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	8 MB

Security

Specification	Value
DHCP features	DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) rules	500
IGMP snooping	Yes
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	No
Stackable	Yes
Product colour	Black
Housing material	Aluminium
Reset button	Yes
LED indicators	LAN, Power
DIN rail mounting	Yes
International Protection (IP) code	IP40
Wall mountable	Yes

Performance

Specification	Value
Firmware upgradeable	Yes
Minimum system requirements	Internet Explorer, Google Chrome, Mozilla Firefox

Power

Specification	Value
Power supply included	No
Redundant power supply (RPS) support	Yes
Number of power supply units	1
DC input voltage	10 - 58 V
Power consumption (typical)	7 W
Power protection features	Over current, Reverse polarity

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE, PoE+
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) voltage	48 V
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	143 mm
Depth	104 mm
Height	48 mm
Weight	580 g

Packaging content

Specification	Value
Quick start guide	Yes

Packaging data

Specification	Value
Package type	Box
Package width	220 mm
Package depth	70 mm
Package height	170 mm
Package weight	685 g

Certificates

Specification	Value
Certification	CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4
