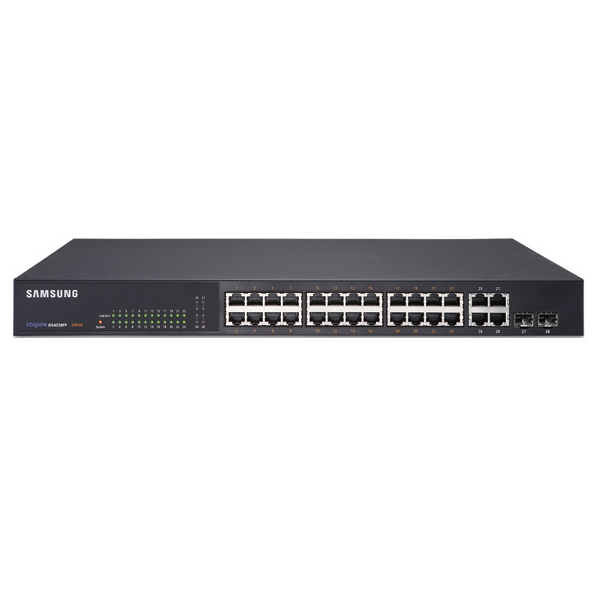

Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model ieS4028FPPart no. IES4028FPEAN 849688000328
43 specifications
- Weight4.13 kg
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Fiber typeMulti-mode
Overview
- Weight
- 4.13 kg
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Fiber type
- Multi-mode
- Brand
- Samsung
- Category
- Network Switch
- Model
- ieS4028FP
- Part number
- IES4028FP
- EAN / UPC
- 849688000328
- Also known as
- Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Fiber optic connector | SX |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.5 Mpps |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Auto-edge port | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, WEB, TelnetDHCP |
| Data link protocols | HTTPS/SSL, SSHv1/v2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 225 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 15.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 43 mm |
| Weight | 4.13 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
What people say
Reviews & ratings
Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black
No reviews yet
Be the first to tell others how Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black
All network switch comparisons- Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black vsSamsung IES-4024GP network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
- Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black vsDell PowerConnect 7048p Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black vsInLine 24 Port Gigabit Network Switch 10/100/1000 1GBit/sCompare specs
- Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black vsHP V 1910-16G Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs

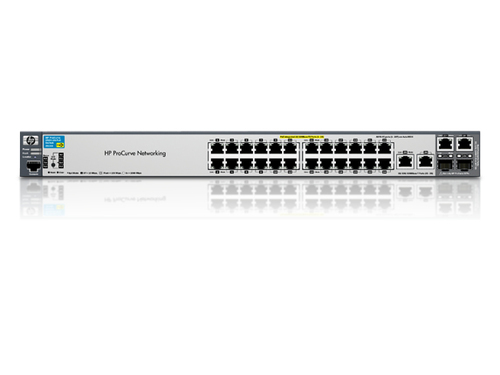

- Samsung ieS4028FP Fast Ethernet (10/100) Power over Ethernet (PoE) Black vsHP ProCurve 2520-24-PoE Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U BlackCompare specs
