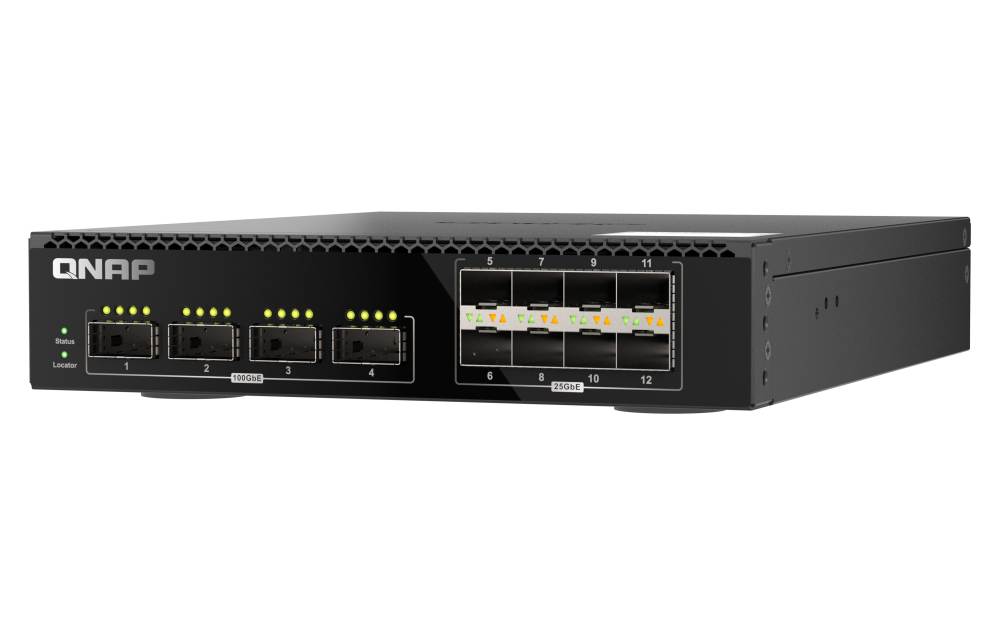

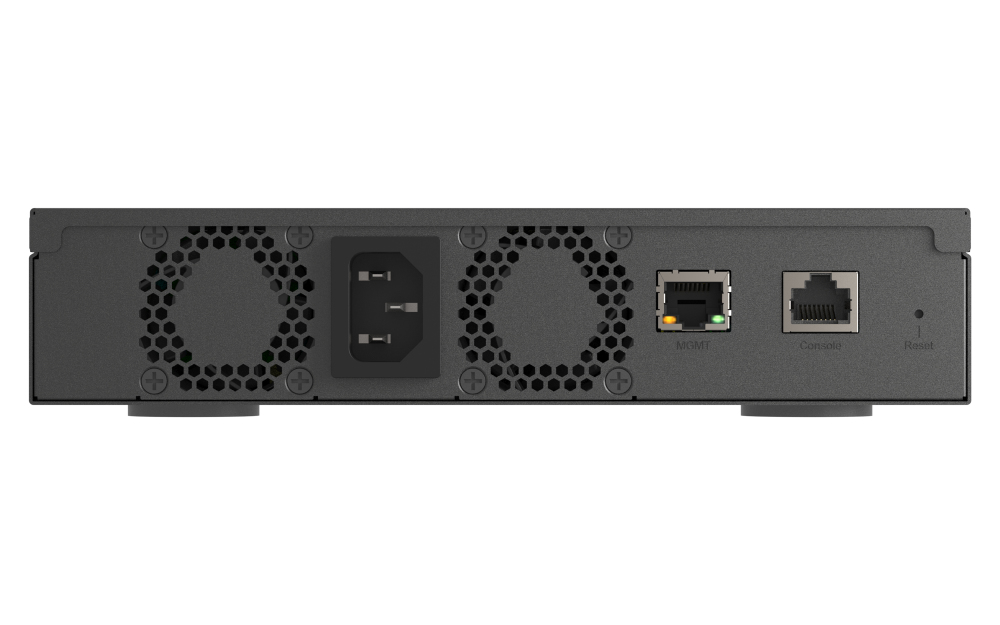

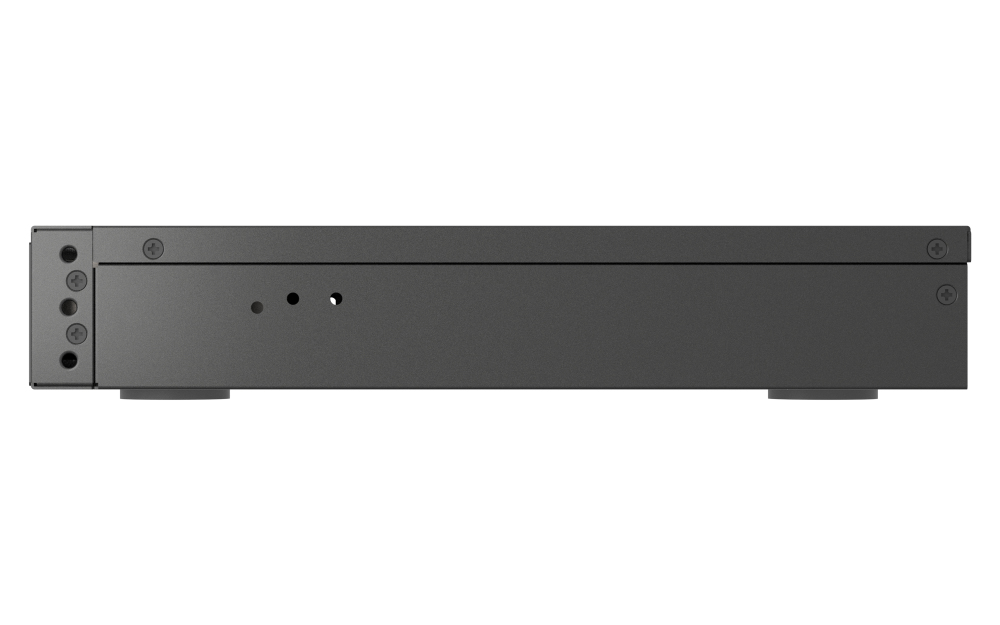

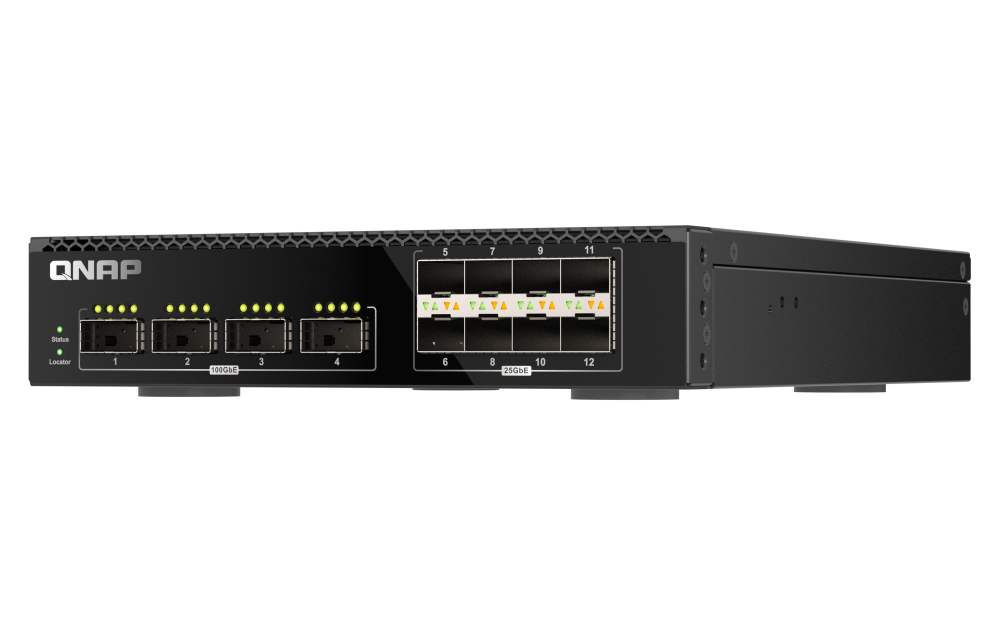

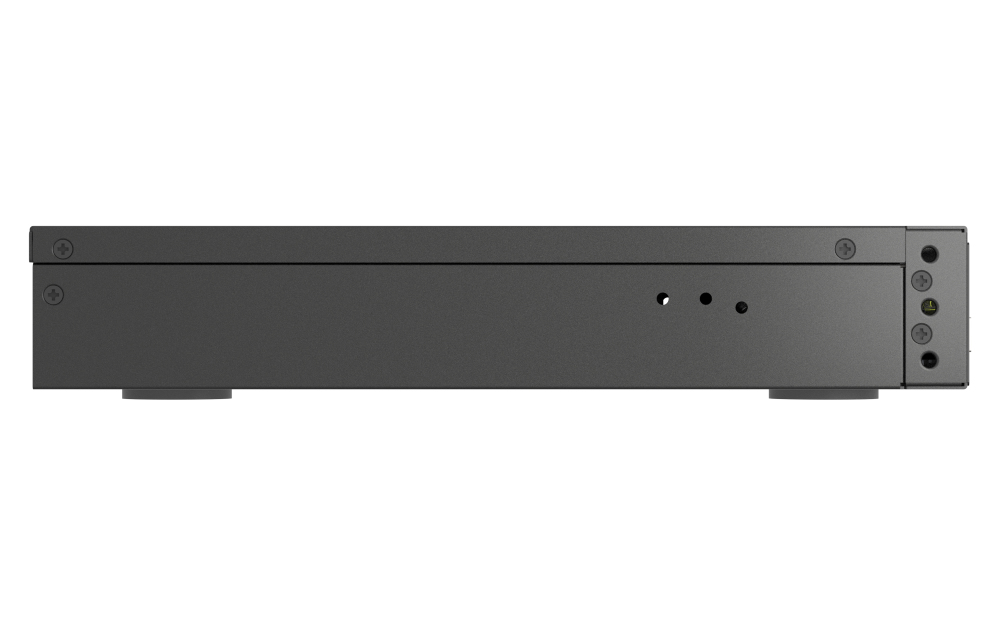

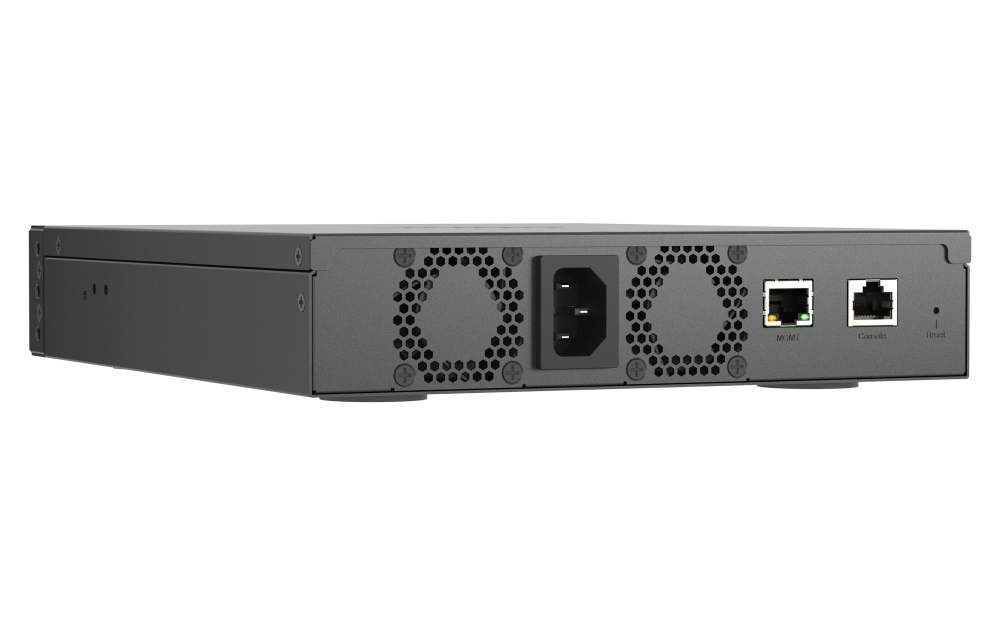

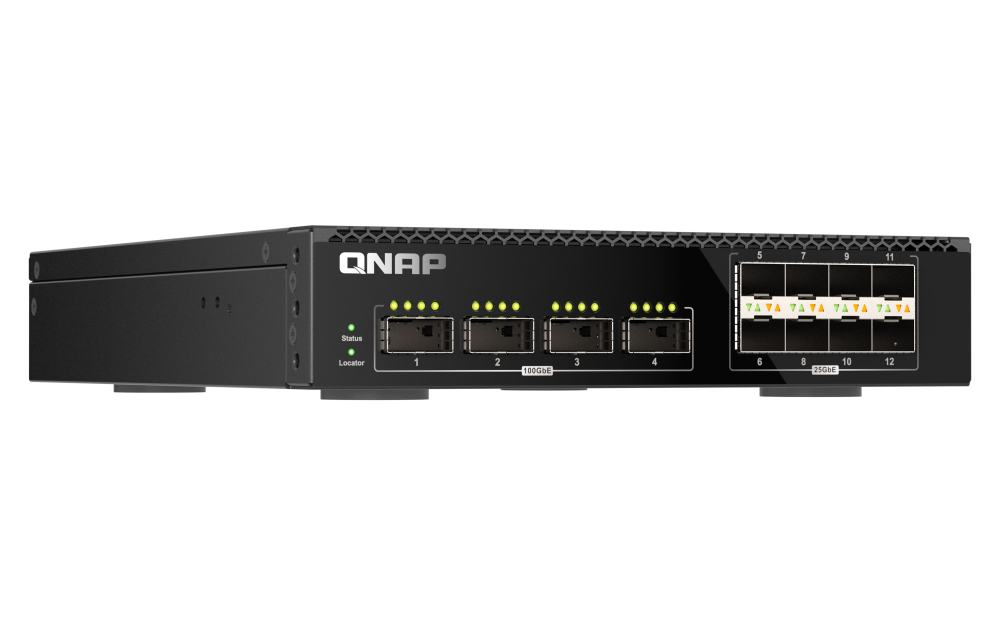

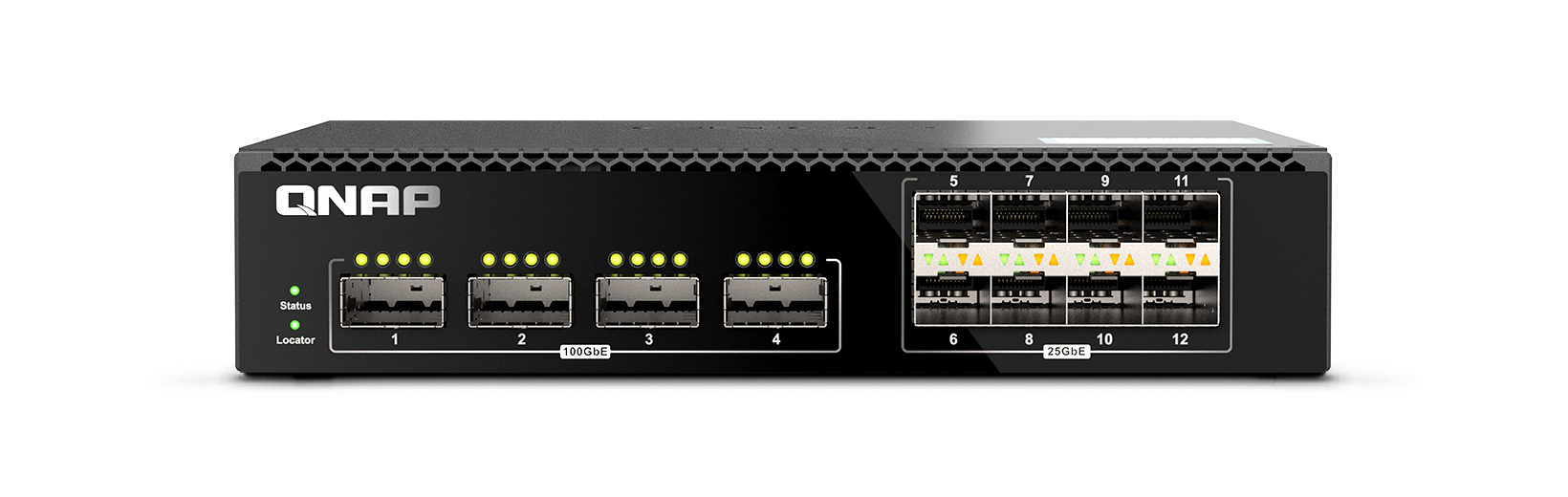

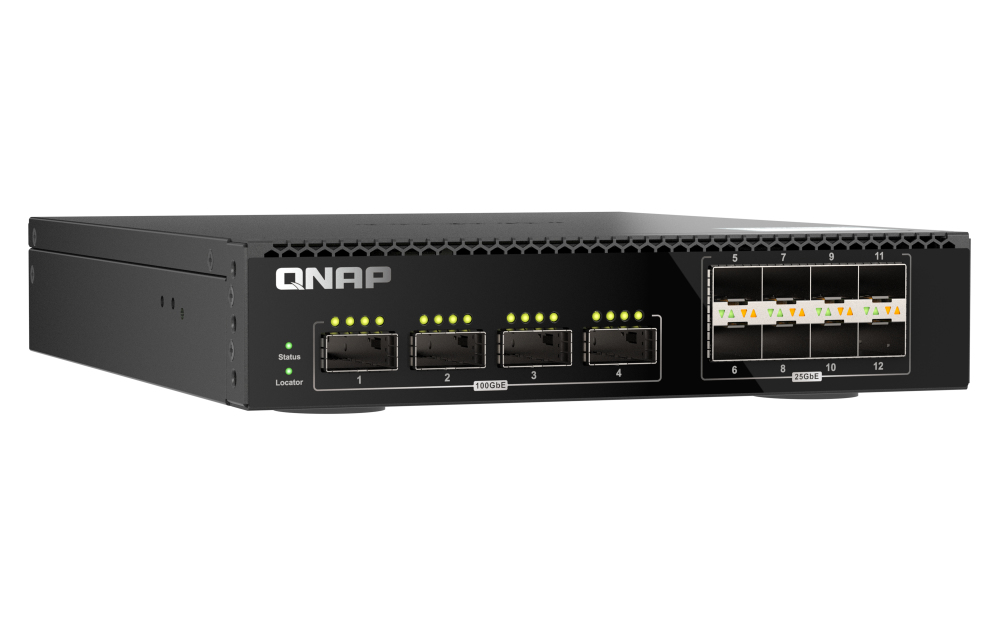

QSW-M7308R-4X network switch Managed L3 1U Black
Model QSW-M7308R-4XEAN 885022026647
55 specifications
- Type1U
- Weight1.78 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 1.78 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- 10G support
- No
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M7308R-4X
- Part number
- QSW-M7308R-4X
- EAN / UPC
- 885022026647, 4711103084298
- Also known as
- QNAP QSW-M7308R-4X network switch Managed L3 1U Black
Specifications
55 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 1200 Gbit/s |
| Throughput | 600 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 100 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 207 mm |
| Depth | 248.8 mm |
| Height | 43.3 mm |
| Weight | 1.78 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 324 mm |
| Package depth | 282 mm |
| Package height | 88 mm |
| Package weight | 2.63 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), VCCI |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Products per master (outer) case | 8 pc(s) |
