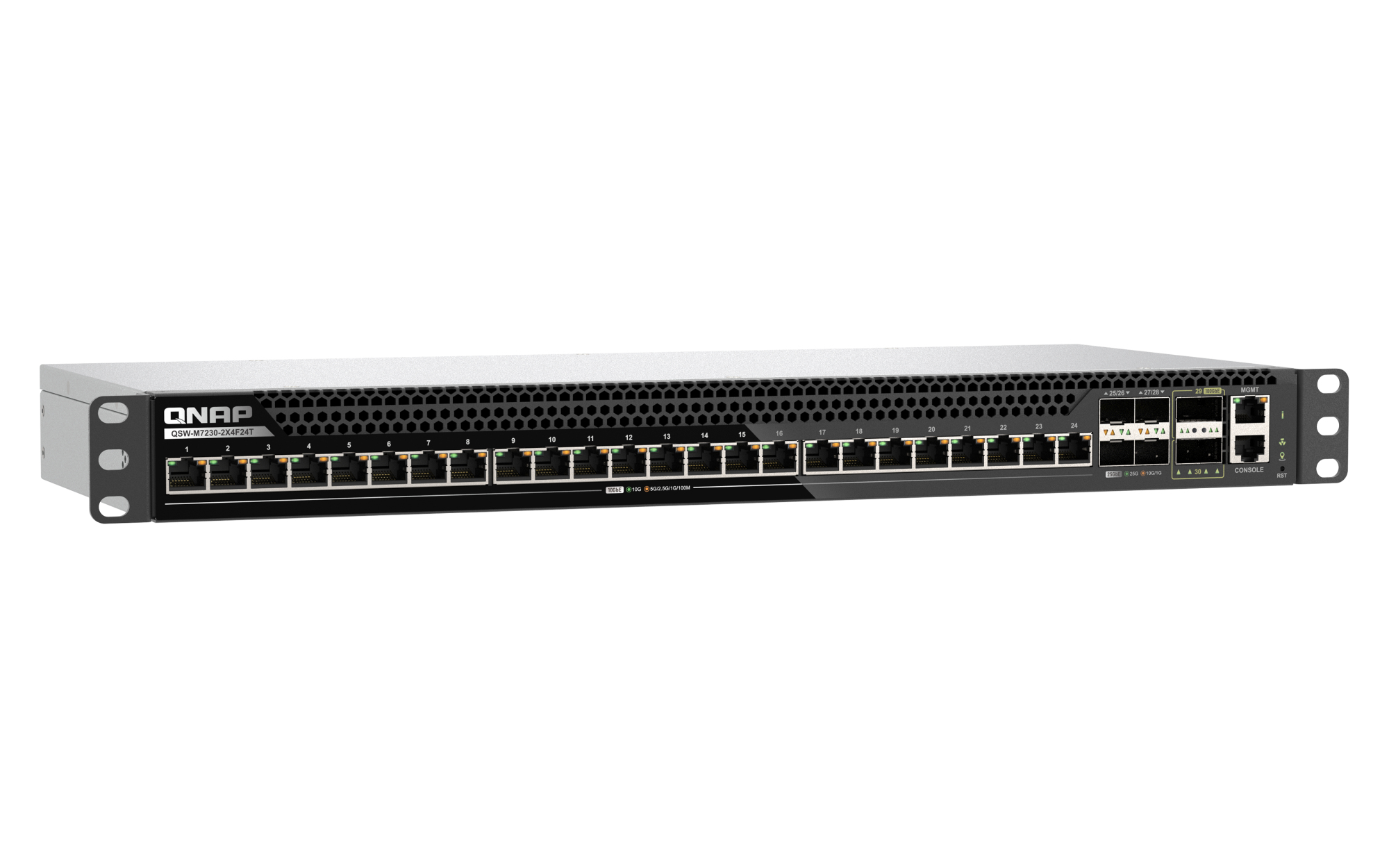

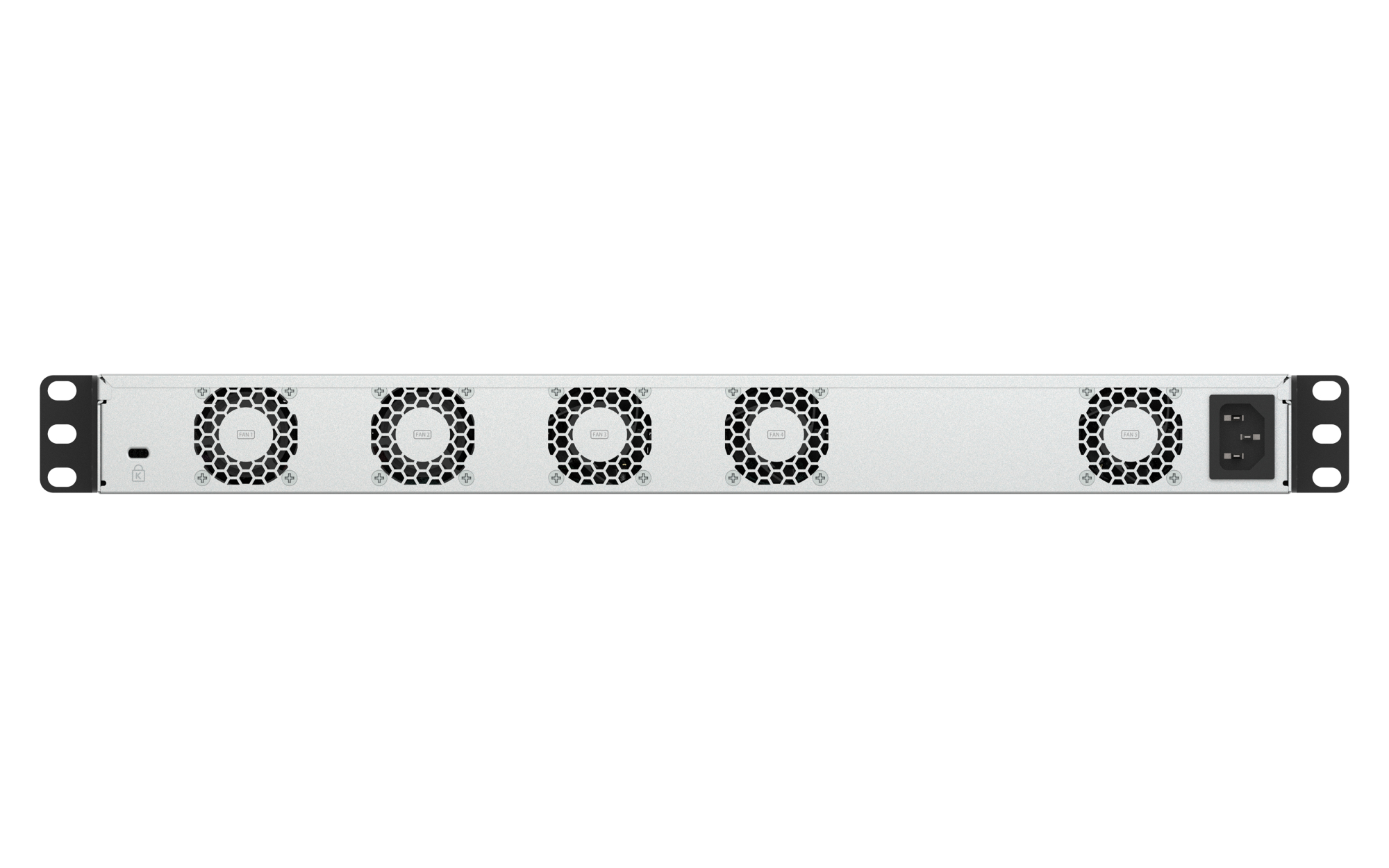

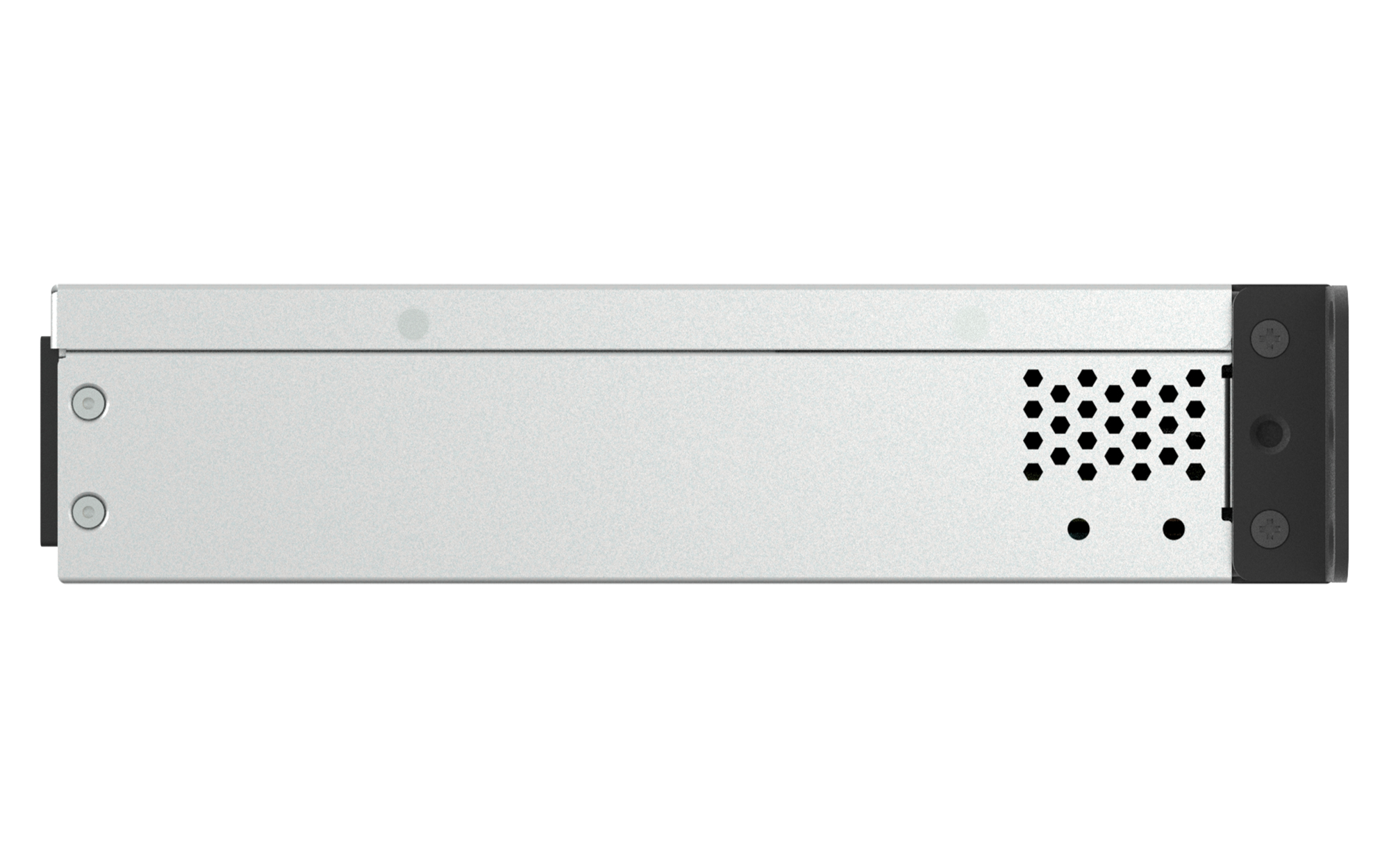

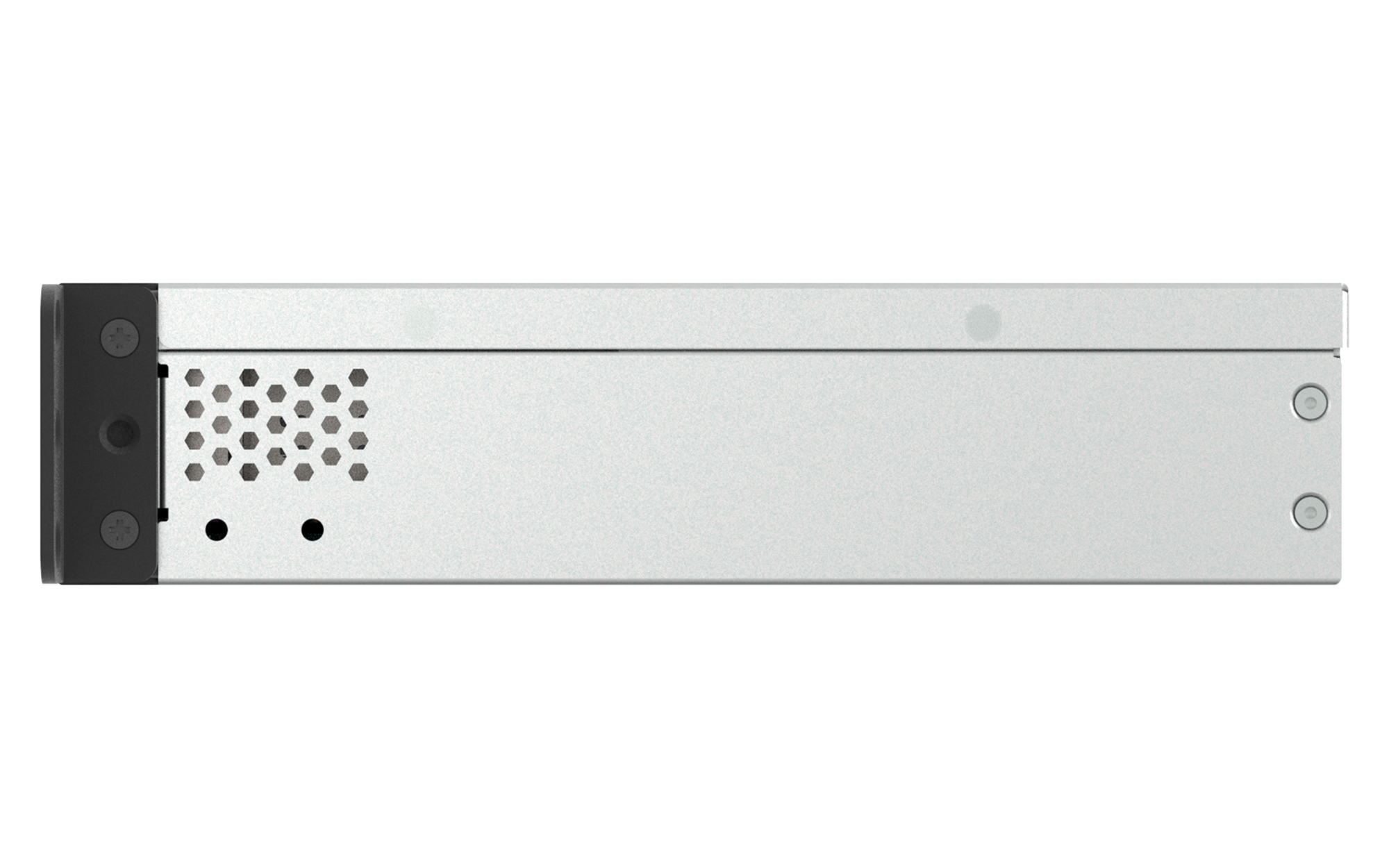

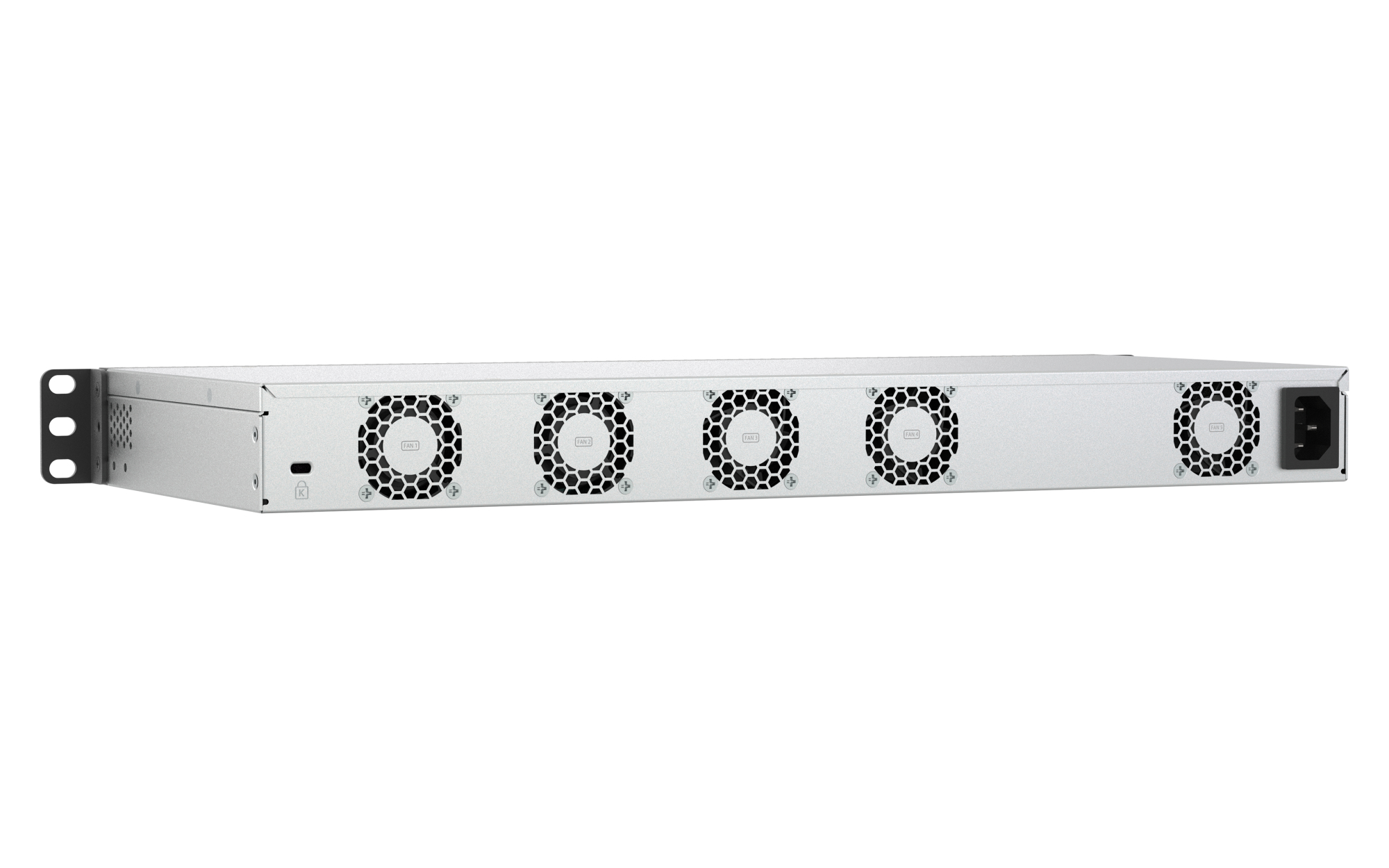

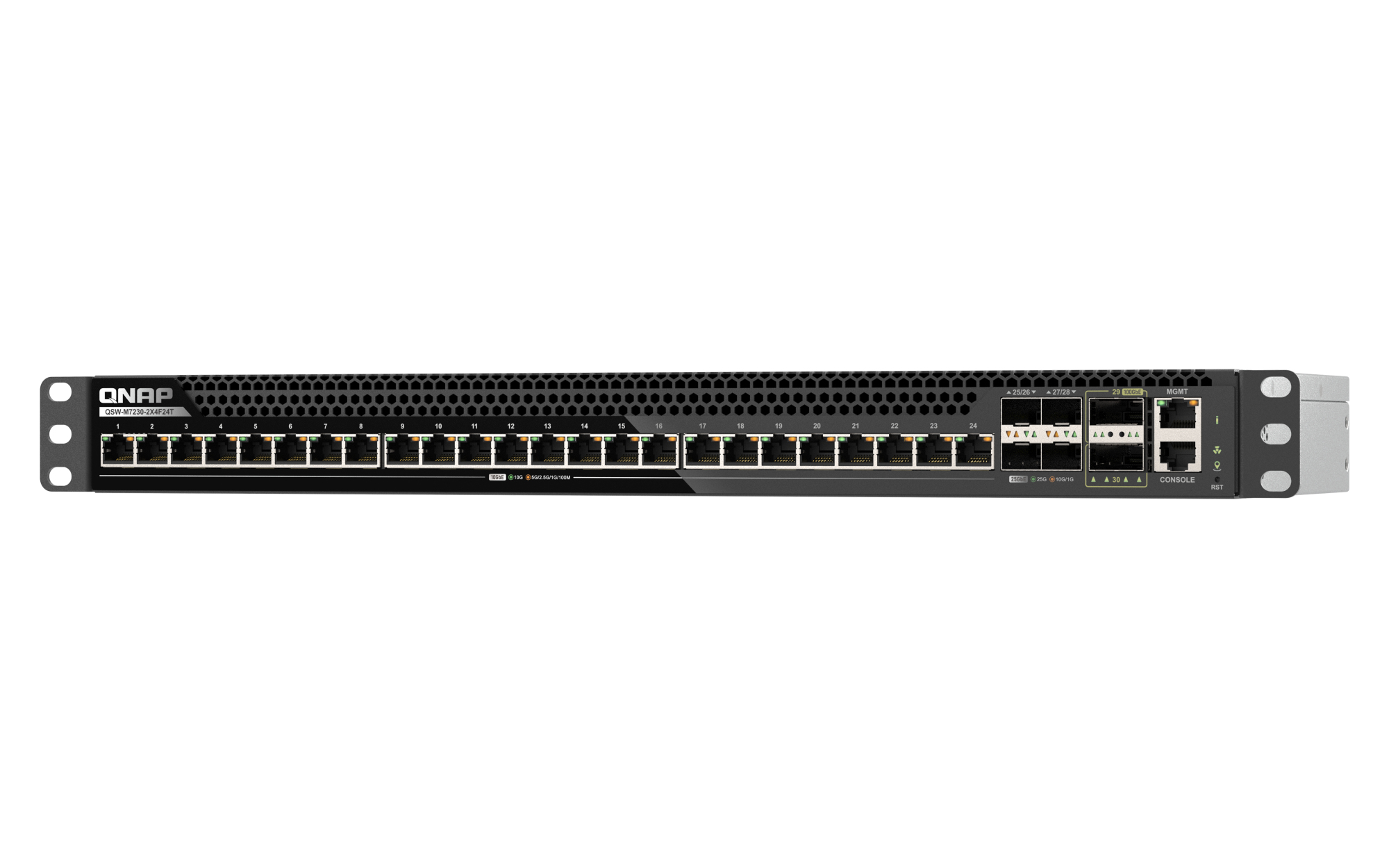

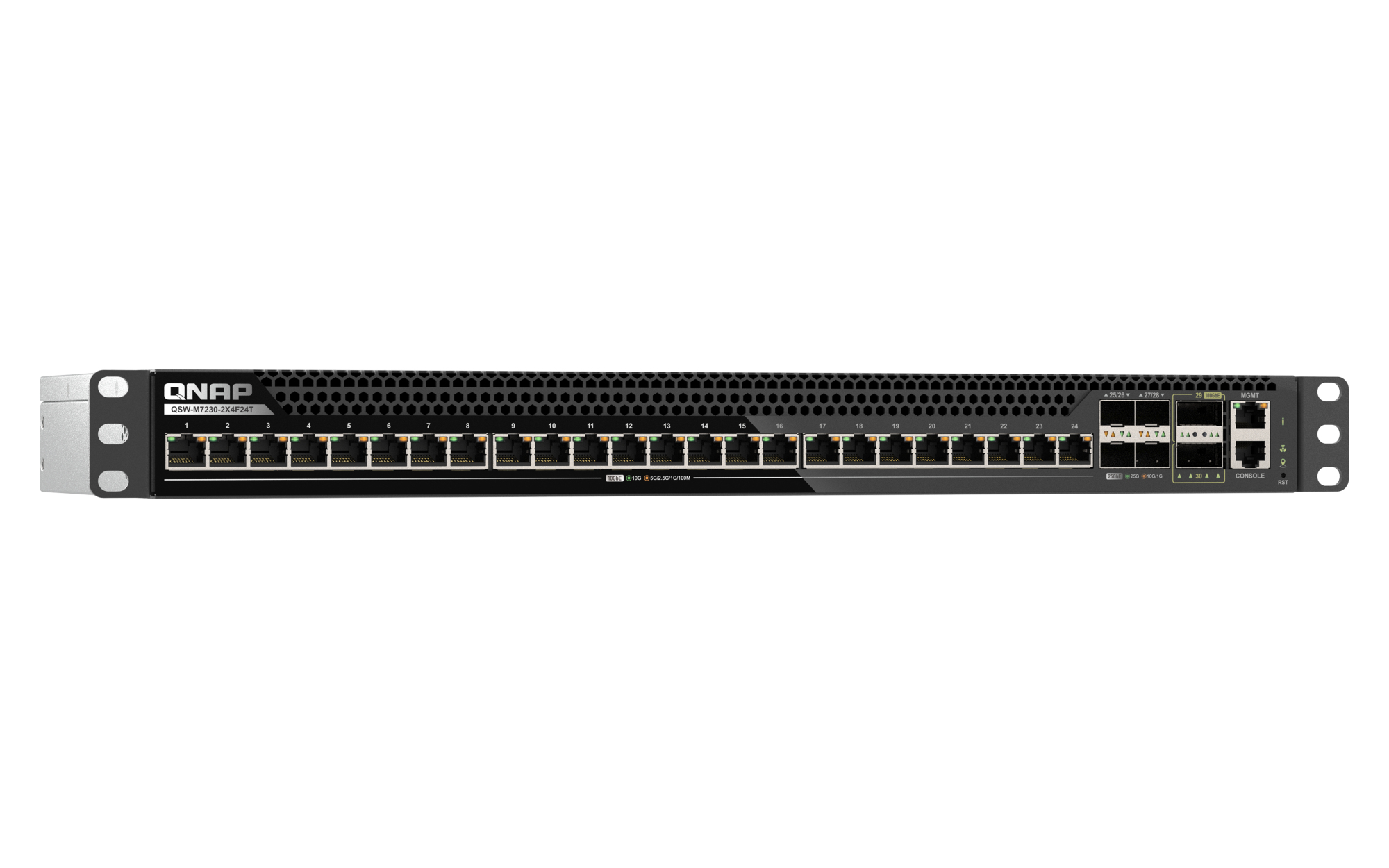

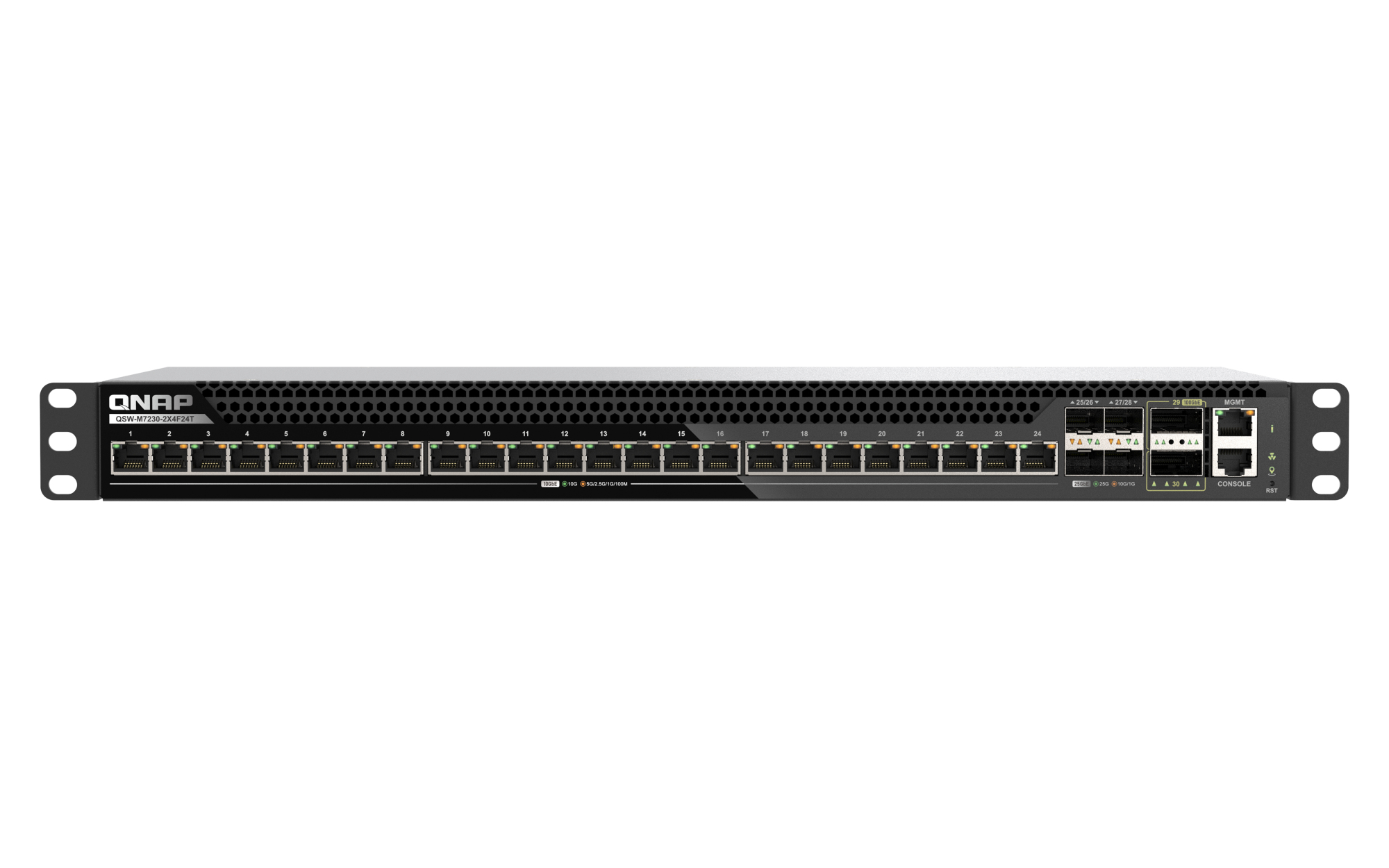

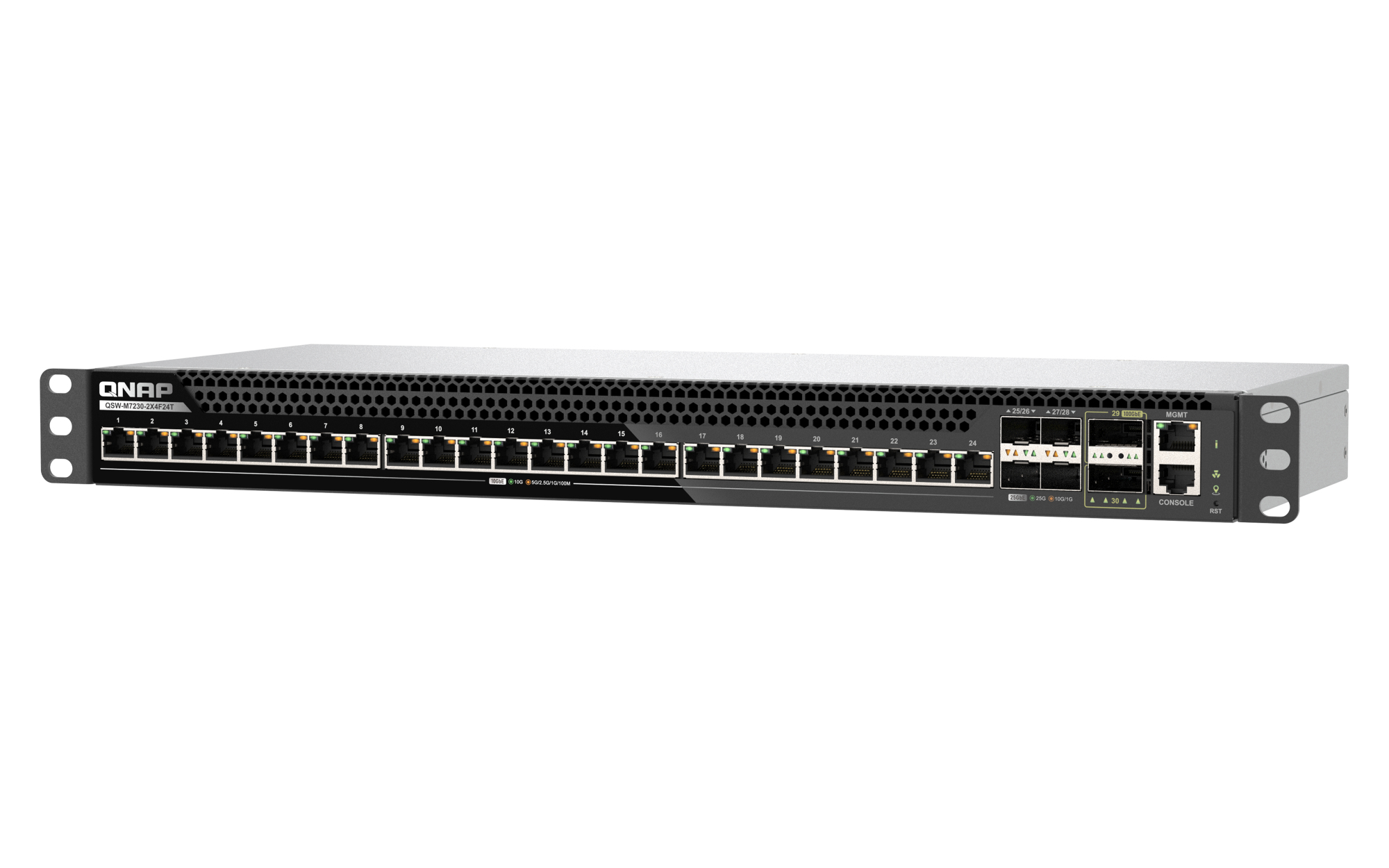

QSW-M7230-2X4F24T network switch Managed L3
10G Ethernet (100/1000/10000) 1U Black
Model QSW-M7230-2X4F24TEAN 4711103091586
32 specifications
- Type1U
- Weight3.1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 3.1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M7230-2X4F24T
- Part number
- QSW-M7230-2X4F24T
- EAN / UPC
- 4711103091586
- Also known as
- QNAP QSW-M7230-2X4F24T network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
32 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45 |
| QSFP28 ports quantity | 2 |
| SFP28 ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p |
| 10G support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 1080 Gbit/s |
| Throughput | 540 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 158.21 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 190 mm |
| Height | 44 mm |
| Weight | 3.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 582 mm |
| Package depth | 362 mm |
| Package height | 170 mm |
| Package weight | 4.67 kg |
