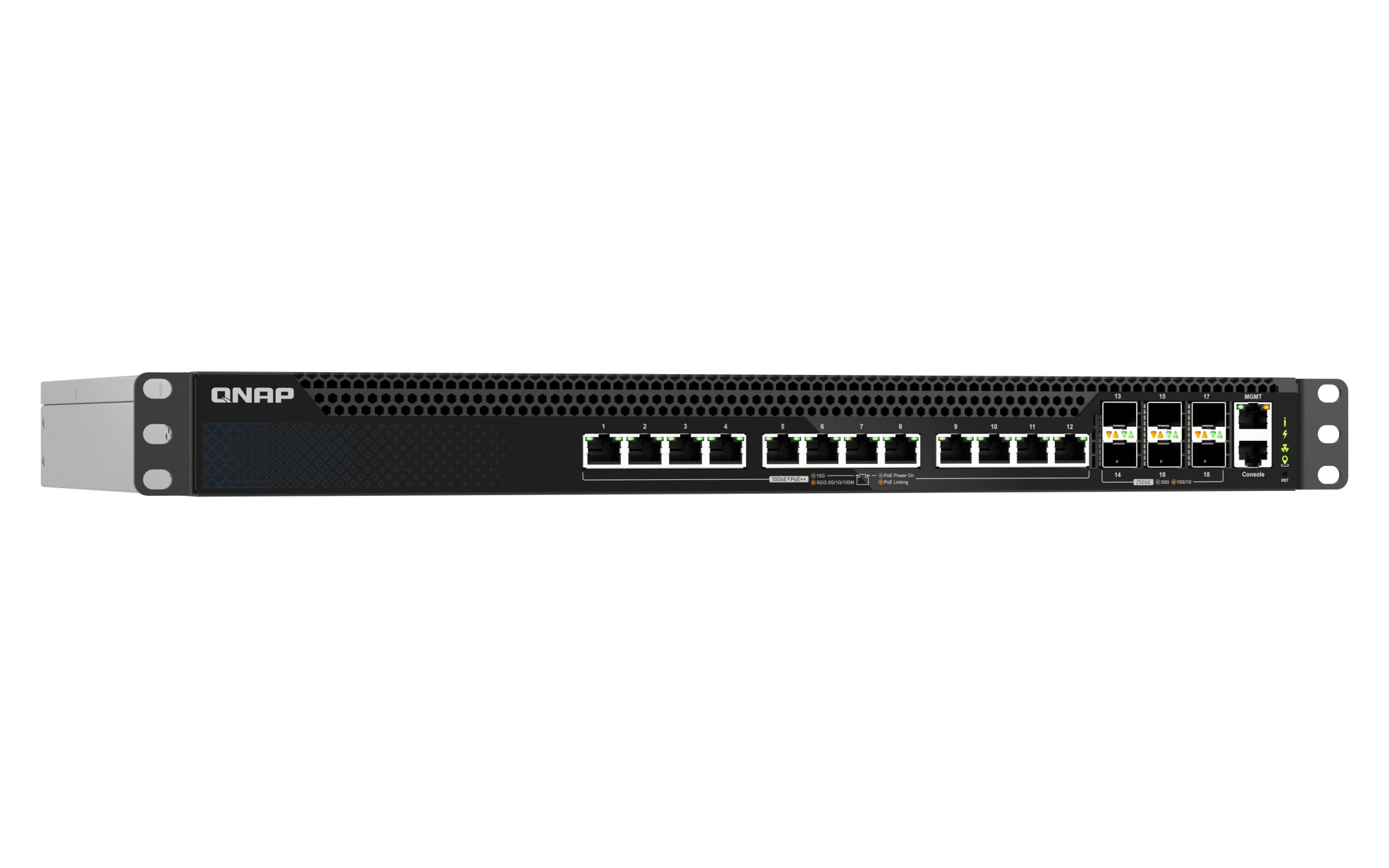

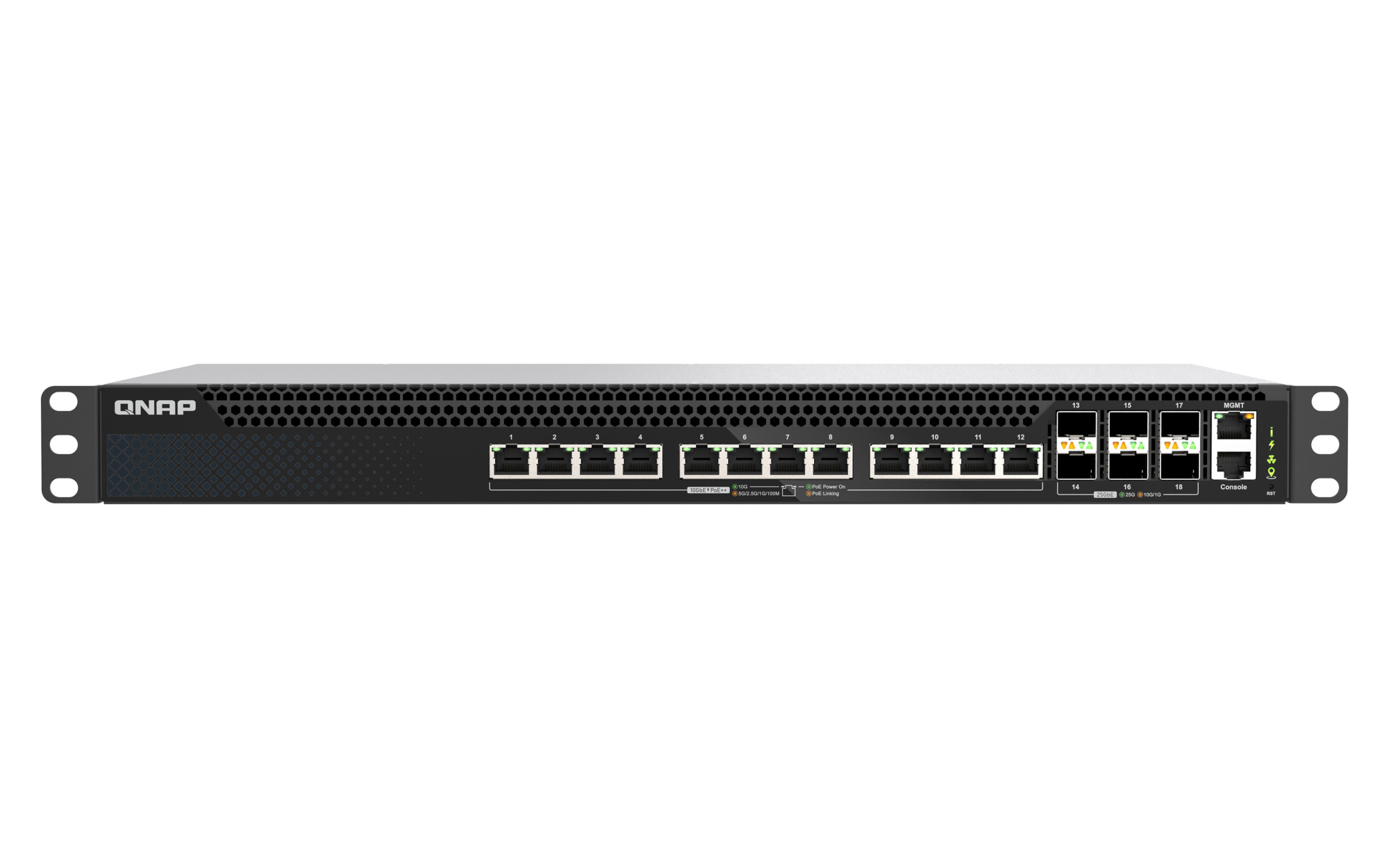

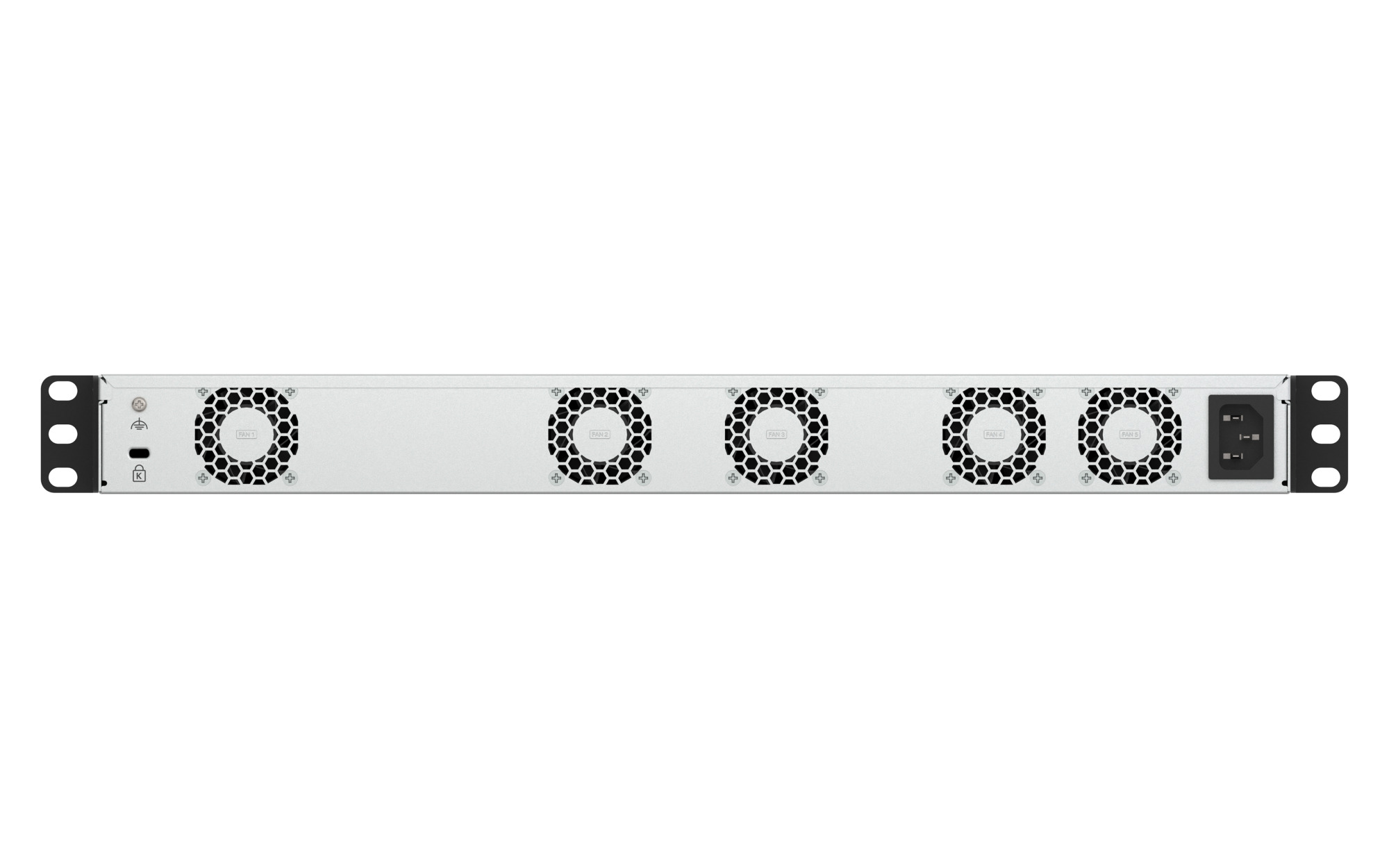

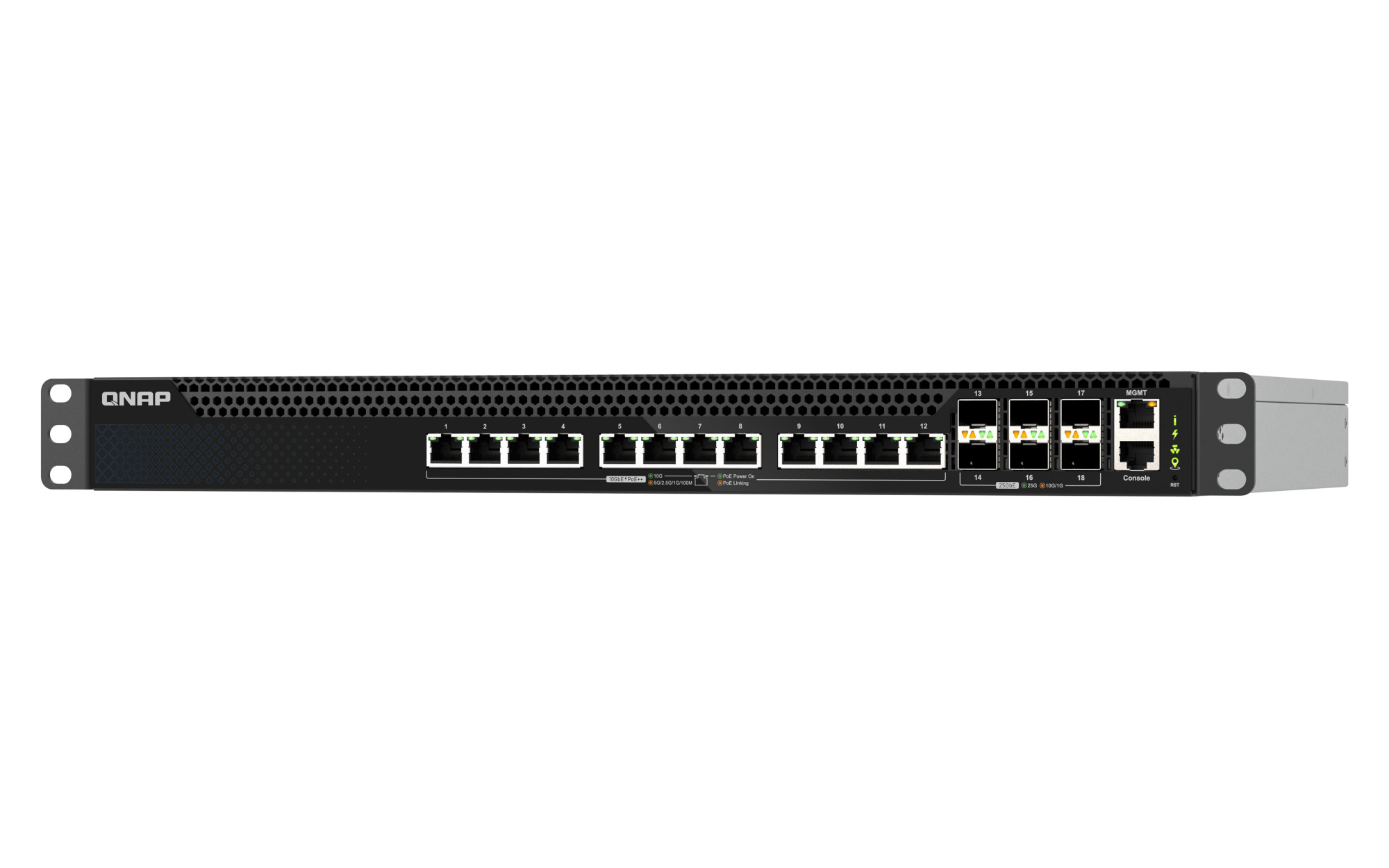

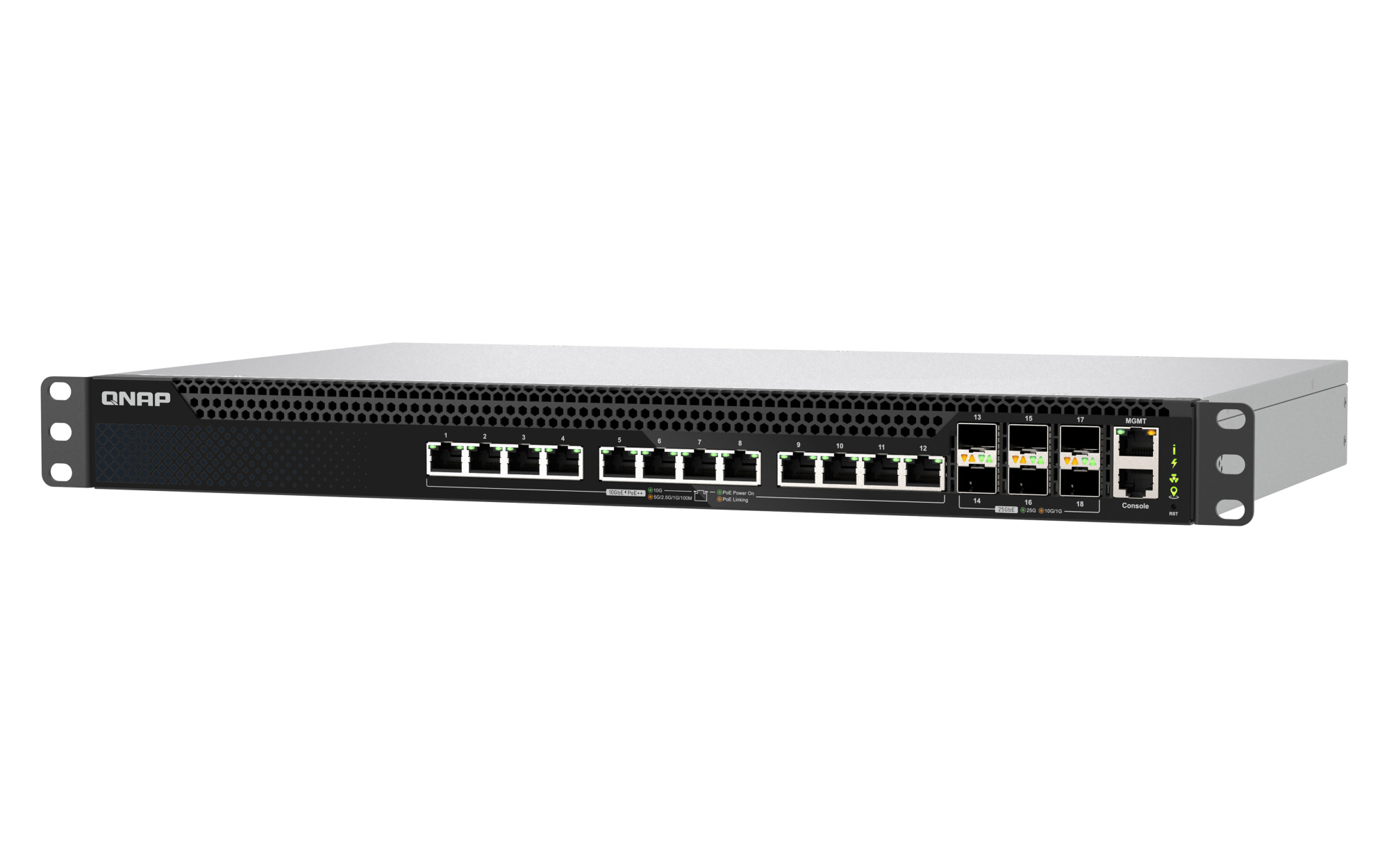

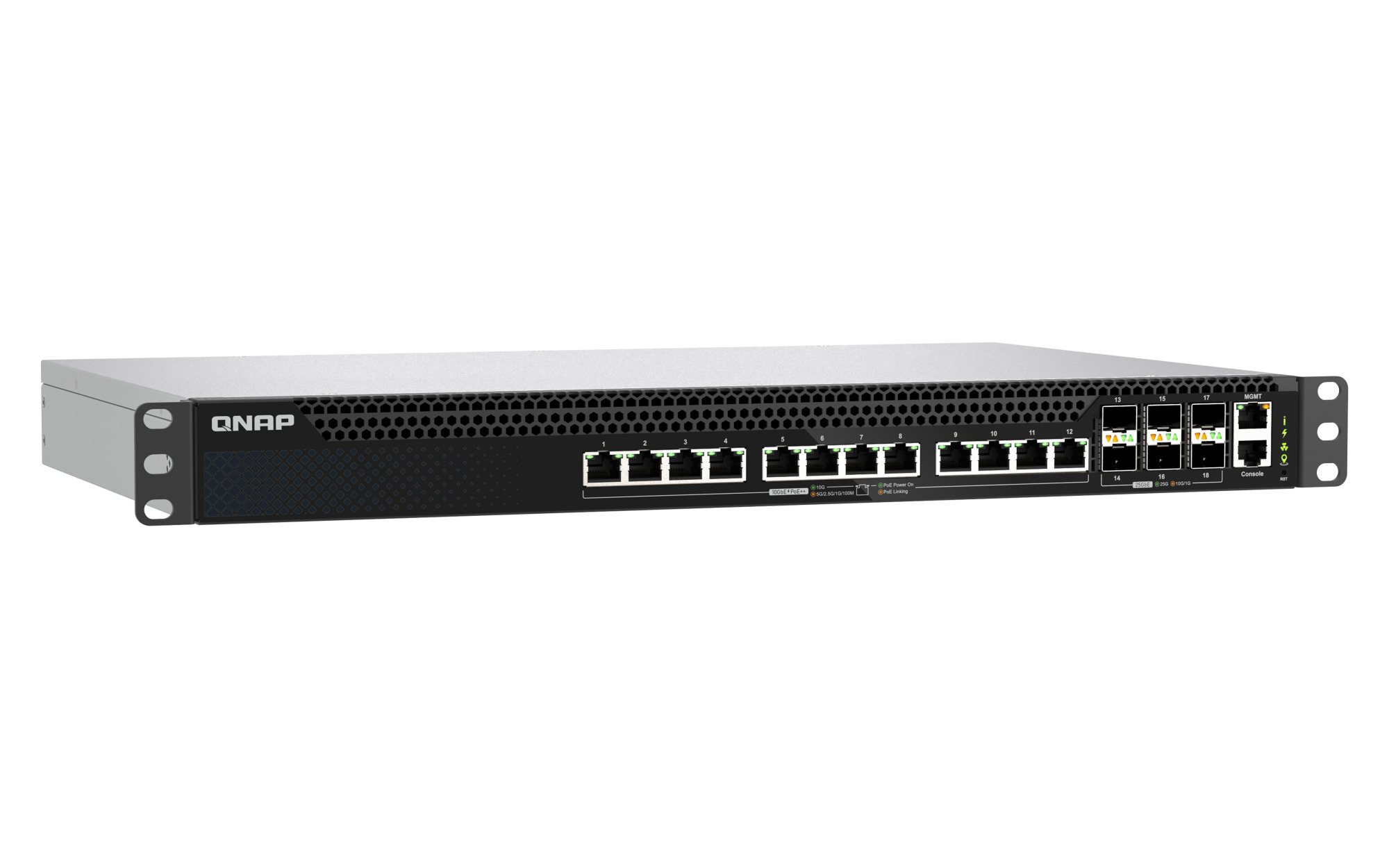

QSW-M5218P-6F12T network switch Managed L3
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Model QSW-M5218P-6F12TEAN 4711103092965
42 specifications
- Type1U
- Weight4.19 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 4.19 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- 10G support
- Yes
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M5218P-6F12T
- Part number
- QSW-M5218P-6F12T
- EAN / UPC
- 4711103092965
- Also known as
- QNAP QSW-M5218P-6F12T network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Specifications
42 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45 |
| SFP28 ports quantity | 6 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 540 Gbit/s |
| Throughput | 270 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, Status, Speed |
| Number of fans | 5 fan(s) |
| Electromagnetic compatibility | CLASS A |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 550 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 470 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 284 mm |
| Height | 44 mm |
| Weight | 4.19 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.07 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, BSMI, ICES, RCM, UKCA, LVD |
