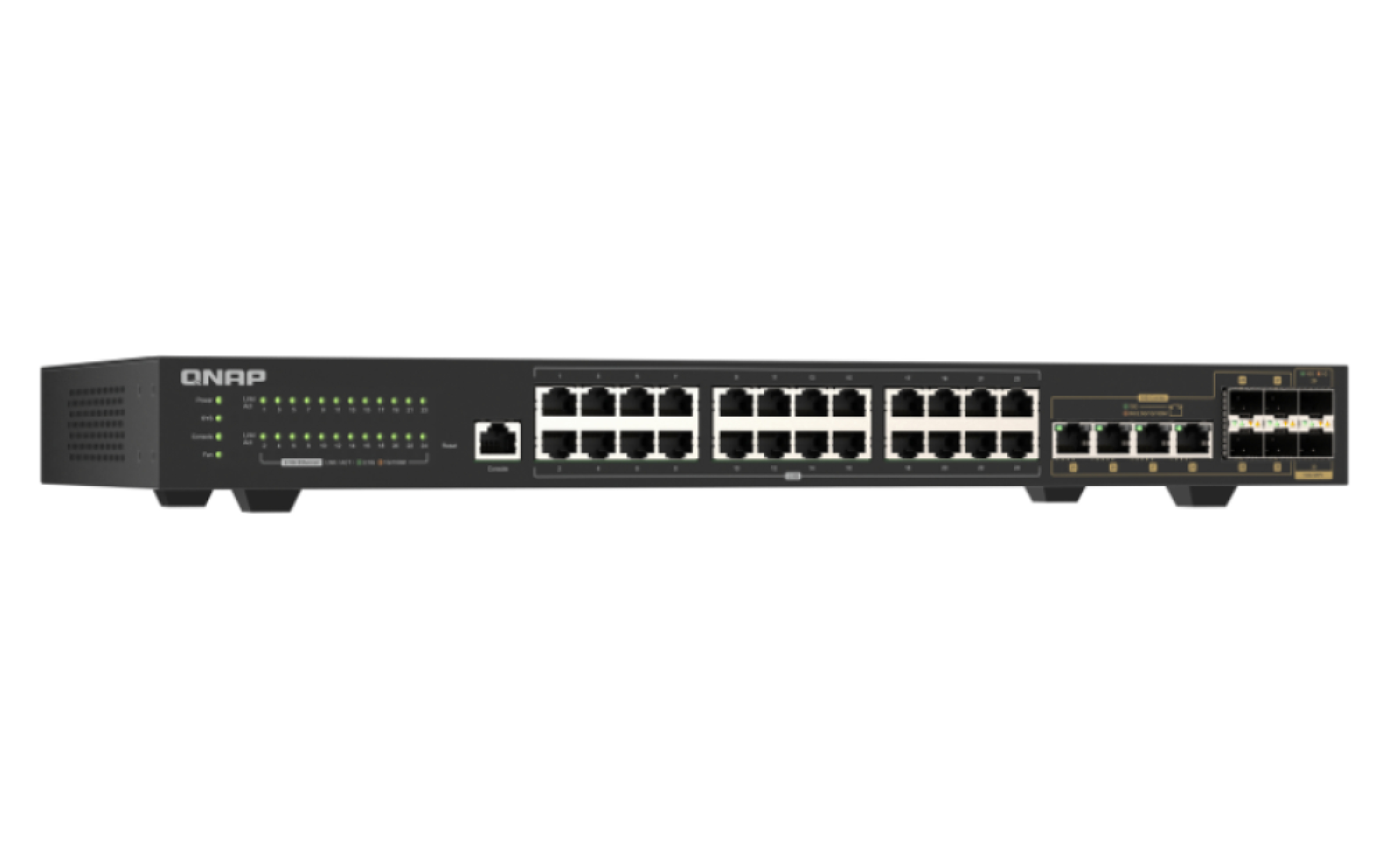

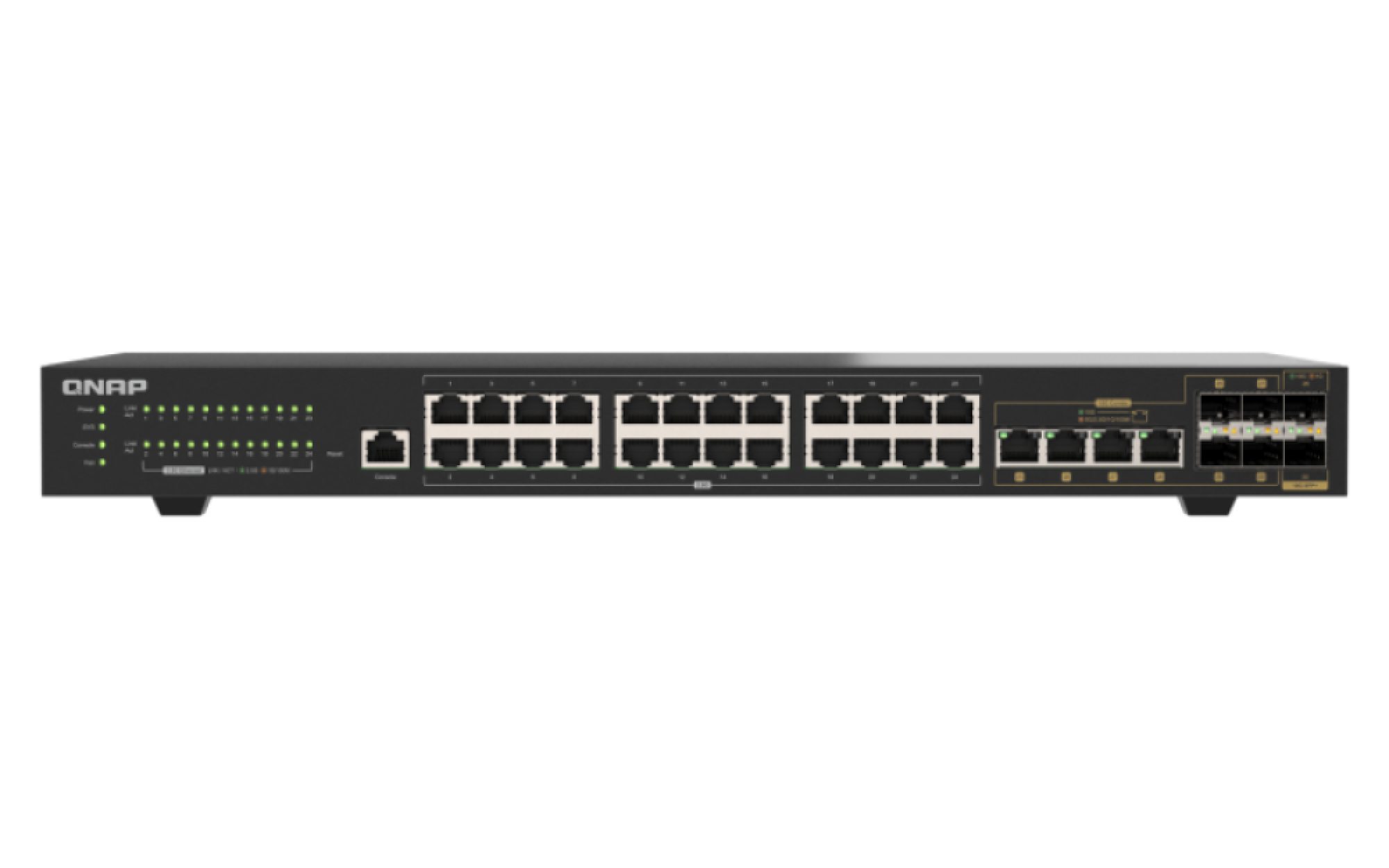

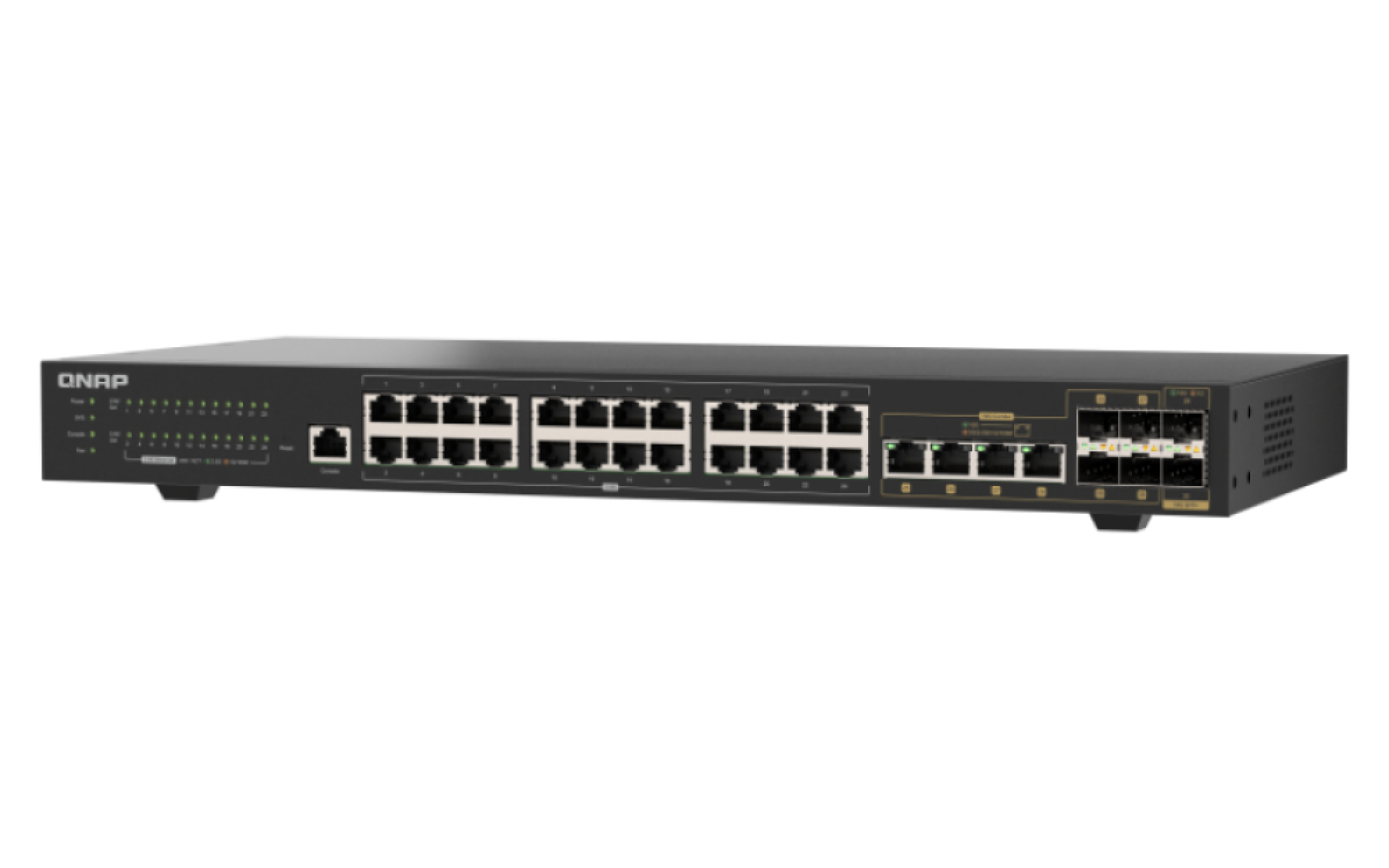

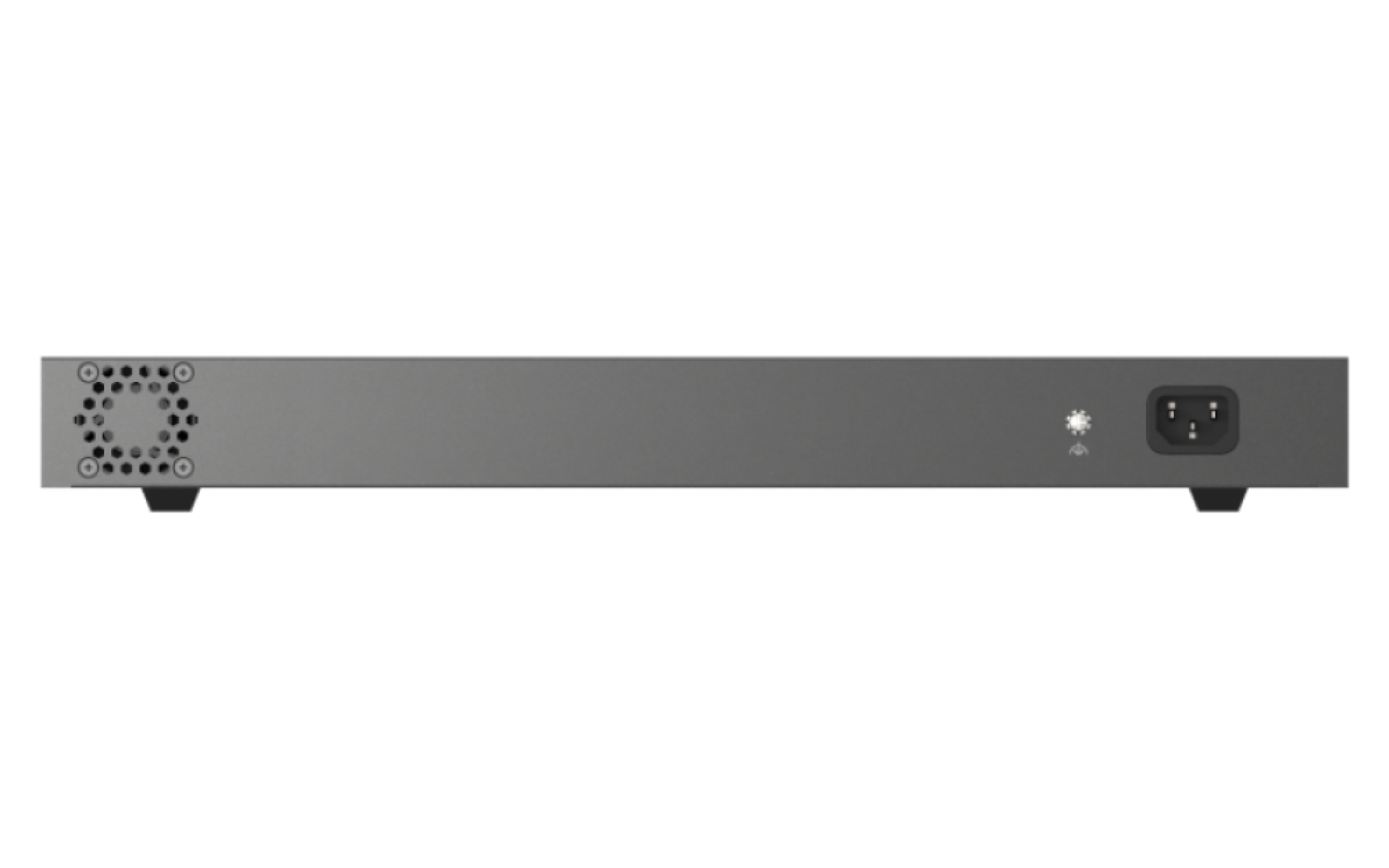

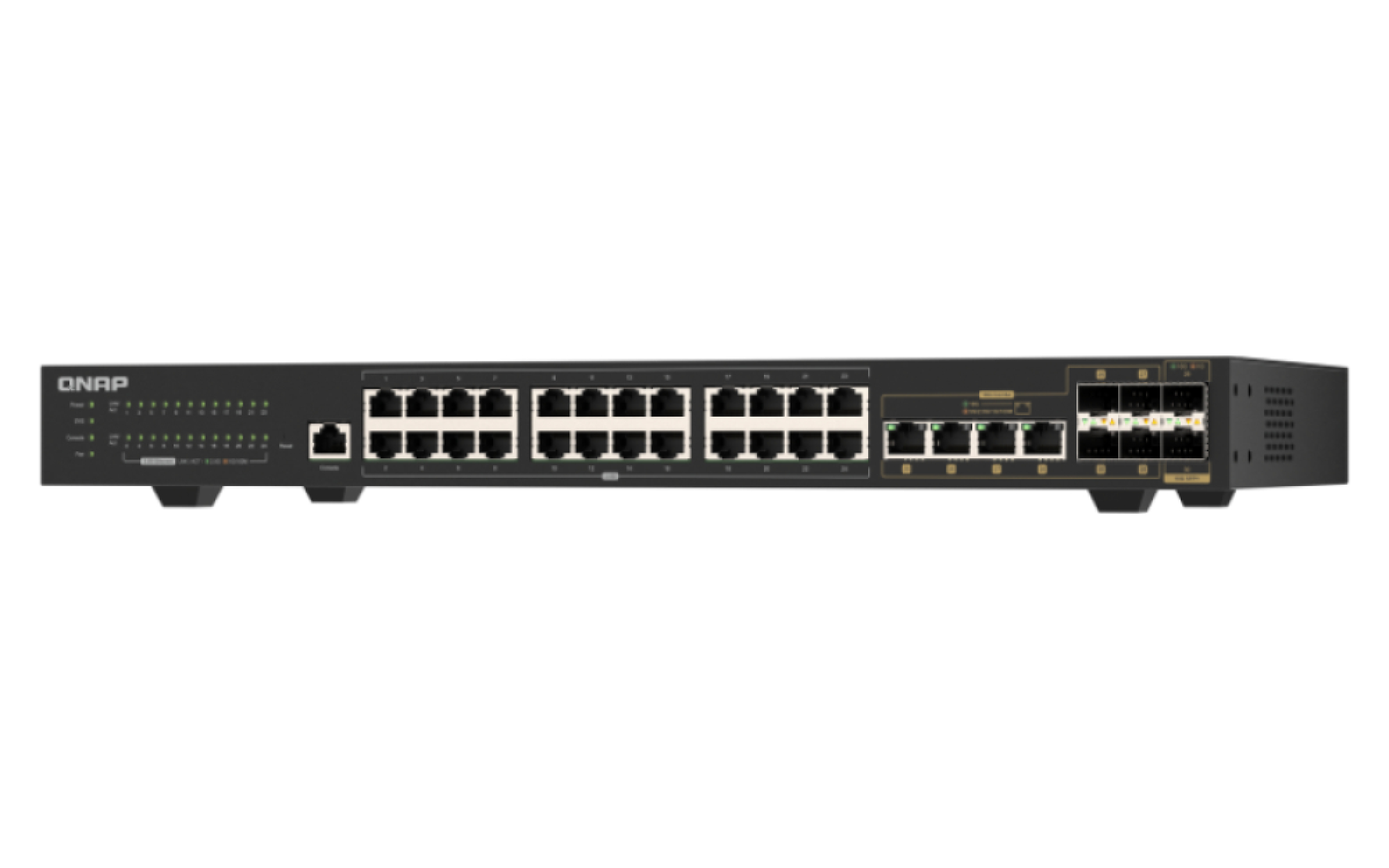

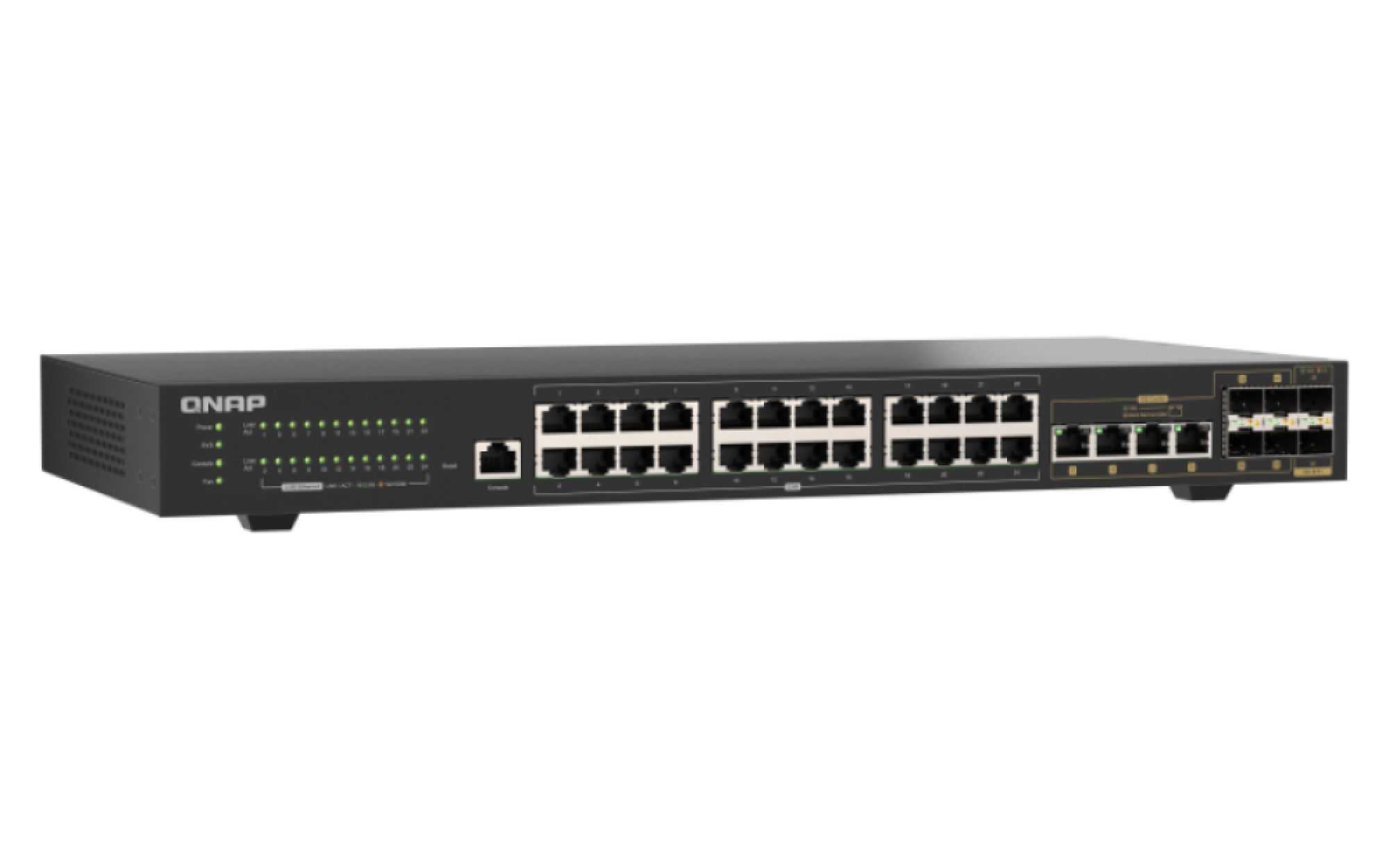

QSW-M2130-4C2S24T network switch Managed L2
2.5G Ethernet (100/1000/2500) 1U Black
Model QSW-M2130-4C2S24TEAN 885022033867
40 specifications
- Noise28 dB
- Type1U
- Weight3.06 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Noise
- 28 dB
- Type
- 1U
- Weight
- 3.06 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M2130-4C2S24T
- Part number
- QSW-M2130-4C2S24T
- EAN / UPC
- 885022033867, 4711103091555
- Also known as
- QNAP QSW-M2130-4C2S24T network switch Managed L2 2.5G Ethernet (100/1000/2500) 1U Black
Specifications
40 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1p, IEEE 802.3az |
| 10G support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Throughput | 120 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 28 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 70 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 205 mm |
| Height | 44 mm |
| Weight | 3.06 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 523 mm |
| Package depth | 328 mm |
| Package height | 93 mm |
| Package weight | 3.92 kg |
