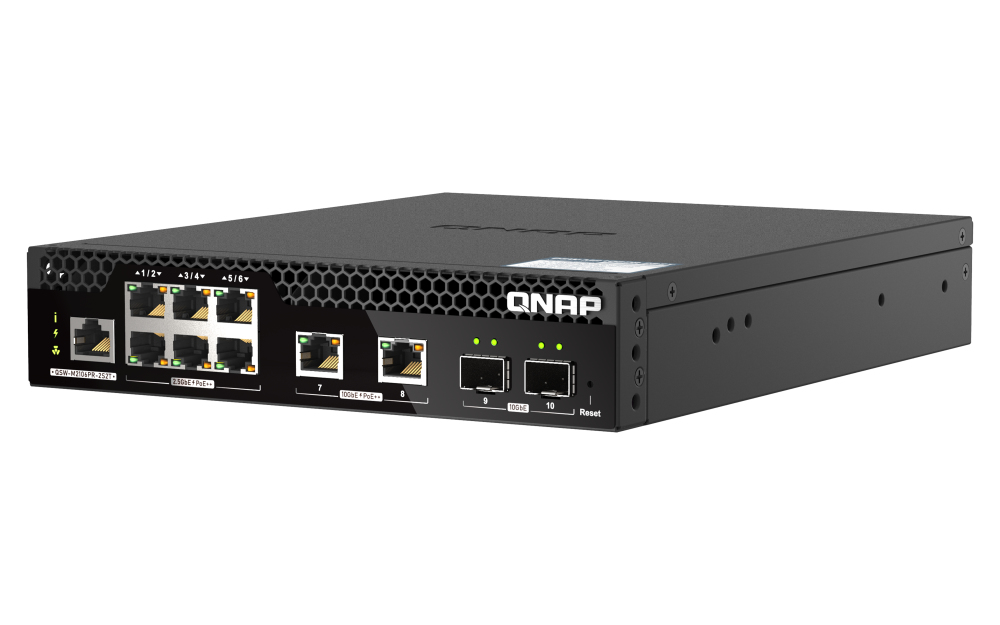

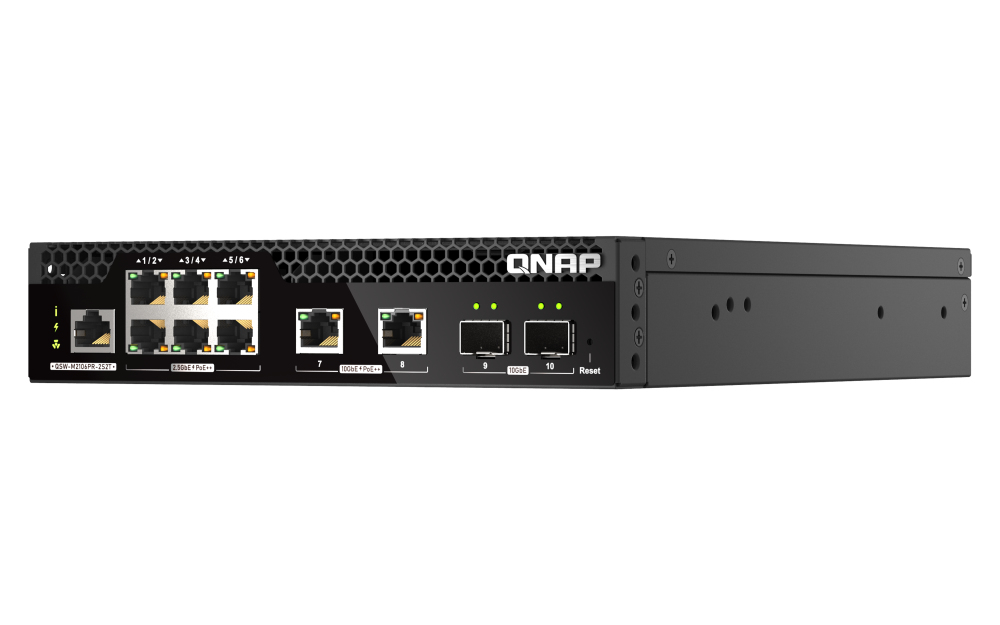

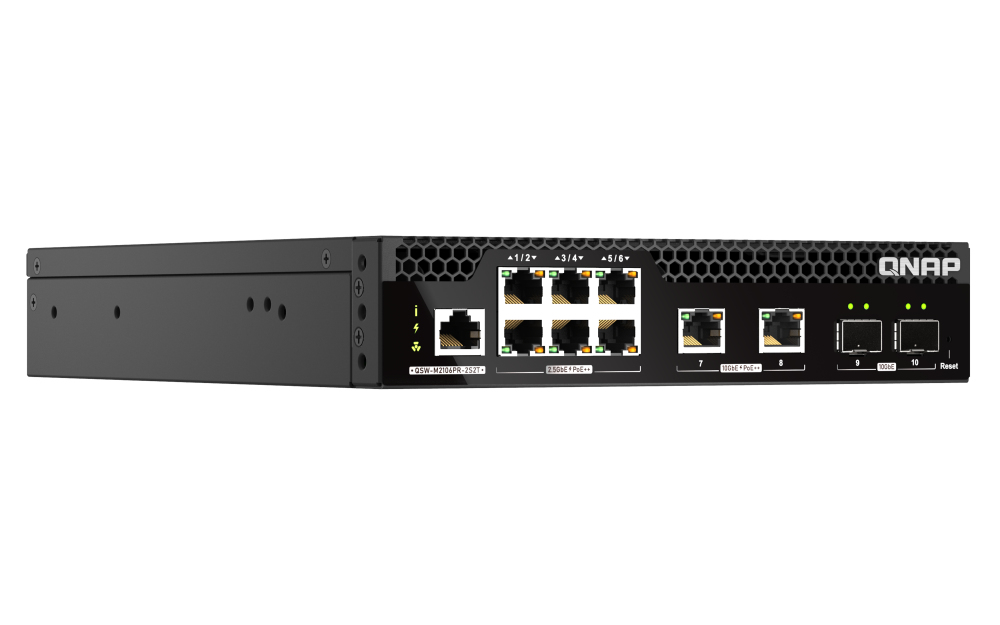

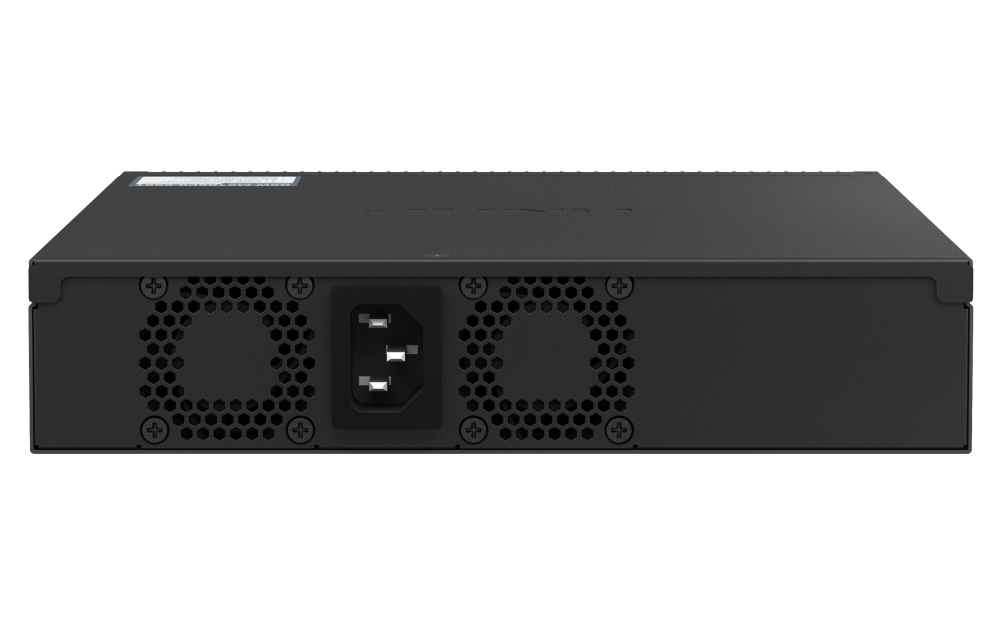

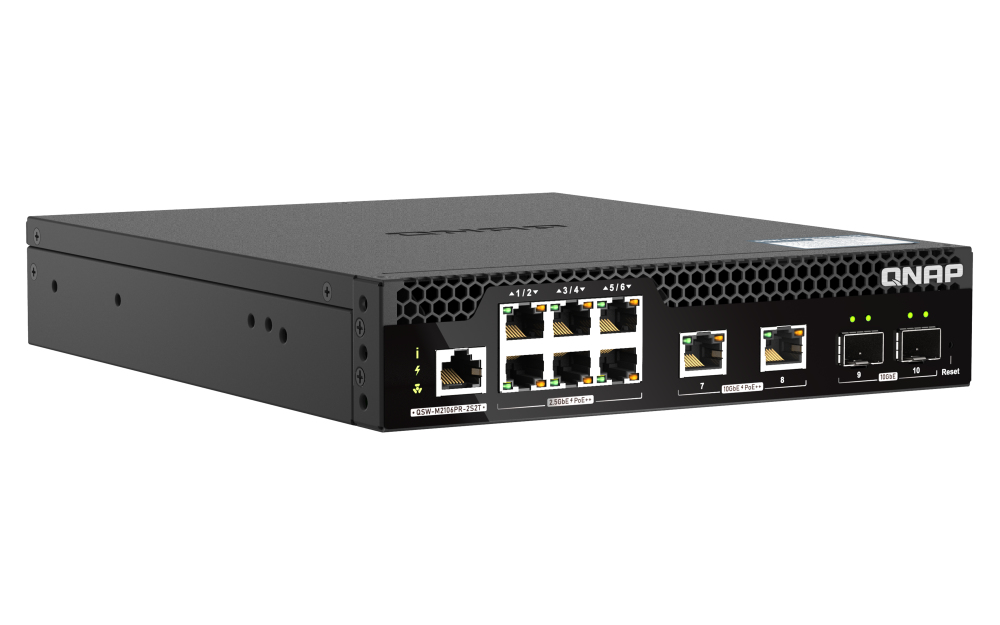

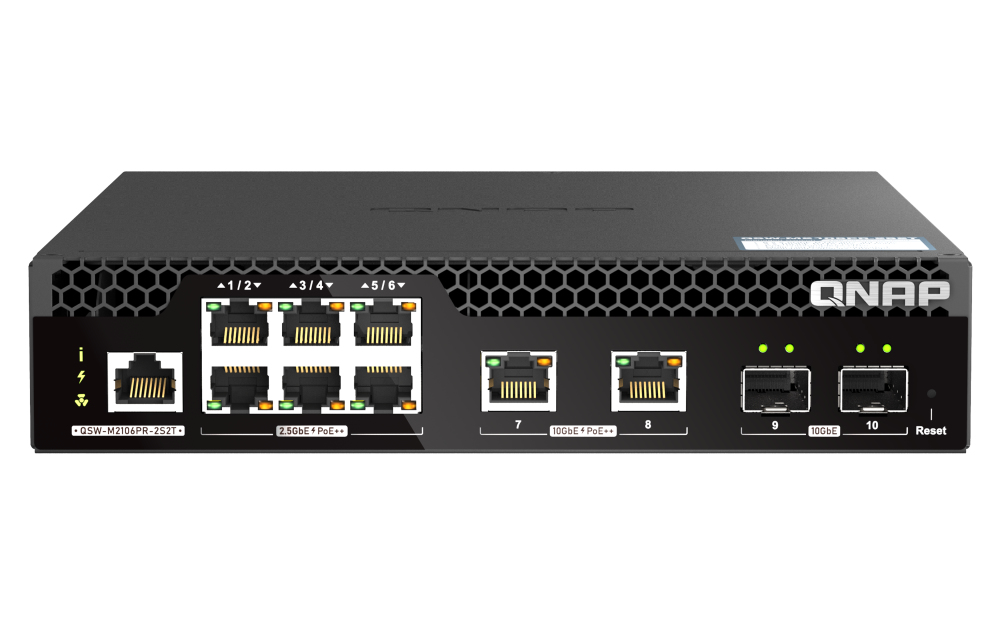

QSW-M2106PR-2S2T network switch Managed L2
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Model QSW-M2106PR-2S2TEAN 885022025152
43 specifications
- Type1U
- Weight1.77 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity2
- MAC address table16000 entries
Overview
- Type
- 1U
- Weight
- 1.77 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 2
- MAC address table
- 16000 entries
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M2106PR-2S2T
- Part number
- QSW-M2106PR-2S2T
- EAN / UPC
- 885022025152, 4711103082805, 5054444666532
- Also known as
- QNAP QSW-M2106PR-2S2T network switch Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity | 6 |
| Installed SFP+ modules quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 110 Gbit/s |
| Throughput | 55 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Fan, Link, PoE, Speed, Status |
| Number of fans | 2 fan(s) |
| Electromagnetic compatibility | CLASS A |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 350 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 310 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 207 mm |
| Depth | 248.8 mm |
| Height | 43.3 mm |
| Weight | 1.77 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 337 mm |
| Package depth | 342 mm |
| Package height | 104 mm |
| Package weight | 2.54 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, BSMI |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Products per master (outer) case | 7 pc(s) |
