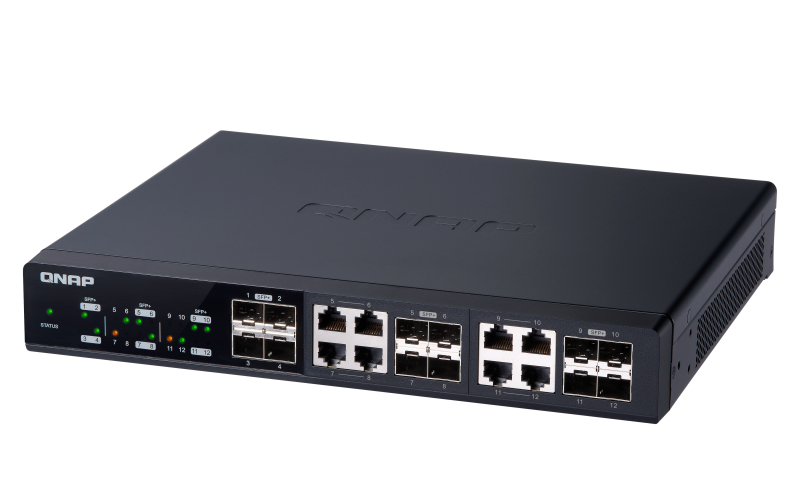

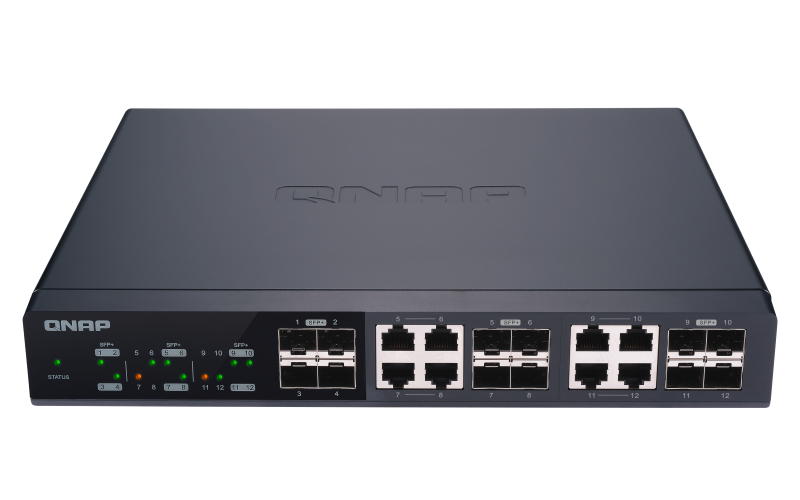

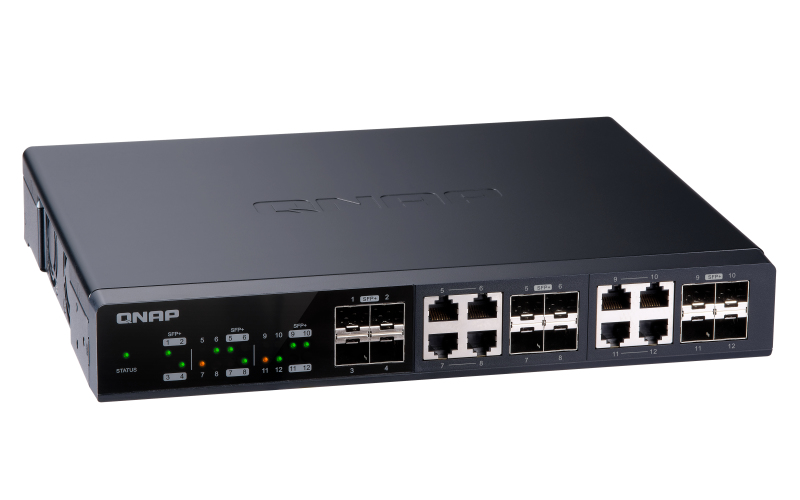

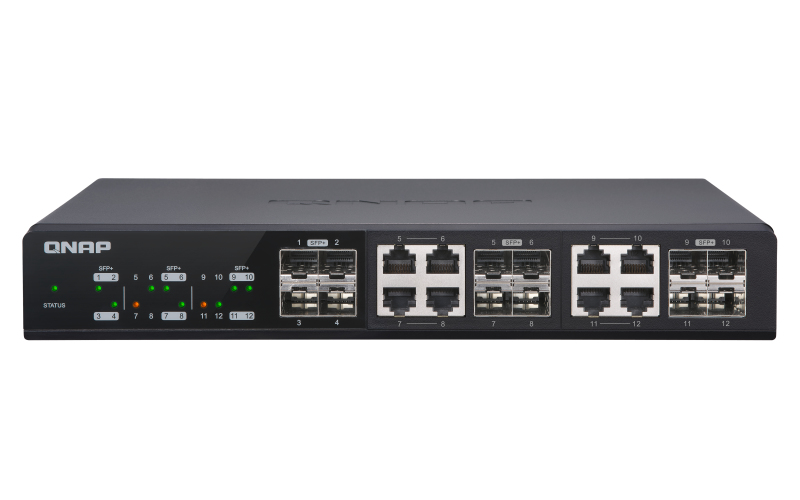

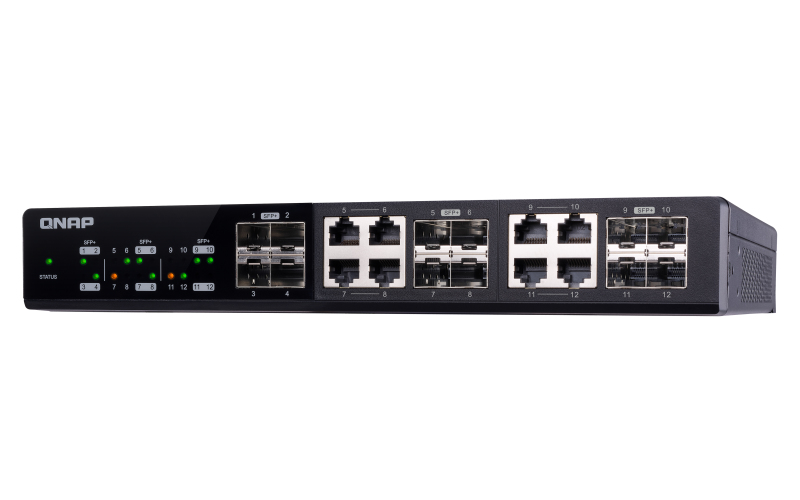

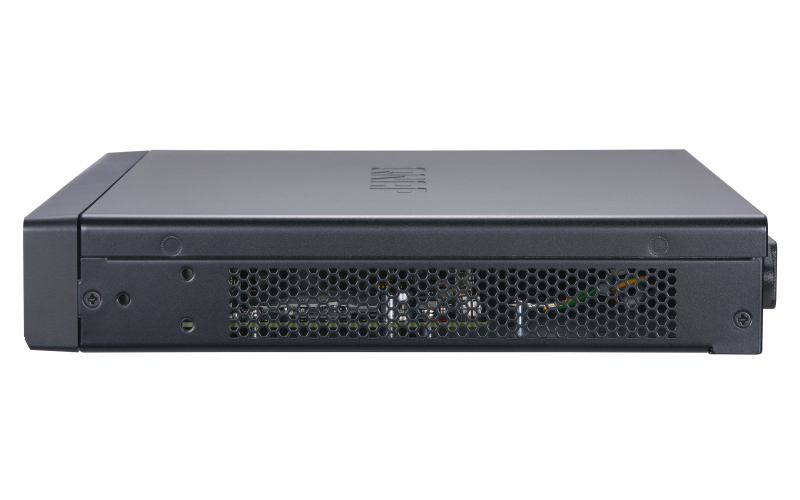

QSW-M1208-8C network switch Managed L2 Black
Model QSW-M1208-8CEAN 4713213517833
51 specifications
- Weight2.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
- 10G supportYes
- MAC address table32000 entries
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- 10G support
- Yes
- MAC address table
- 32000 entries
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-M1208-8C
- Part number
- QSW-M1208-8C
- EAN / UPC
- 4713213517833
- Also known as
- QNAP QSW-M1208-8C network switch Managed L2 Black
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |

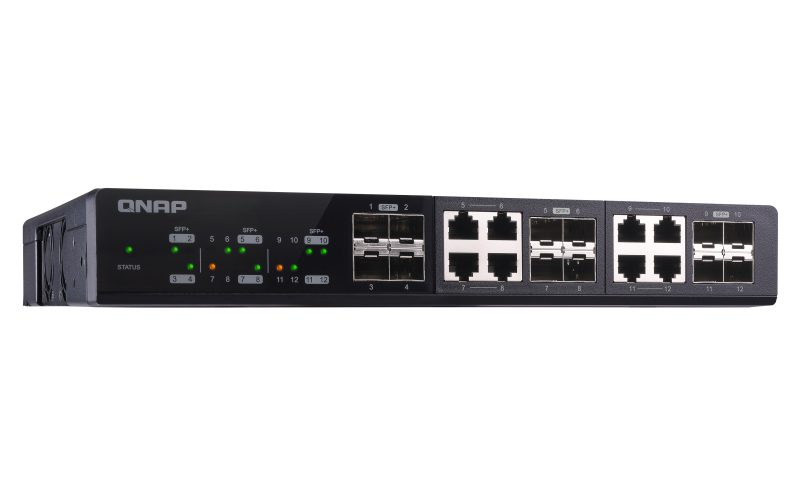

Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 8 |
| SFP+ module slots quantity | 4 |

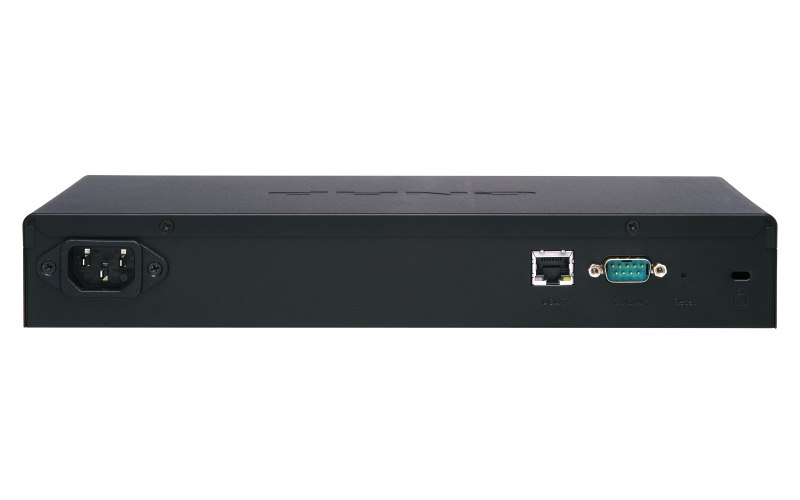

| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Throughput | 120 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, Speed, Status |

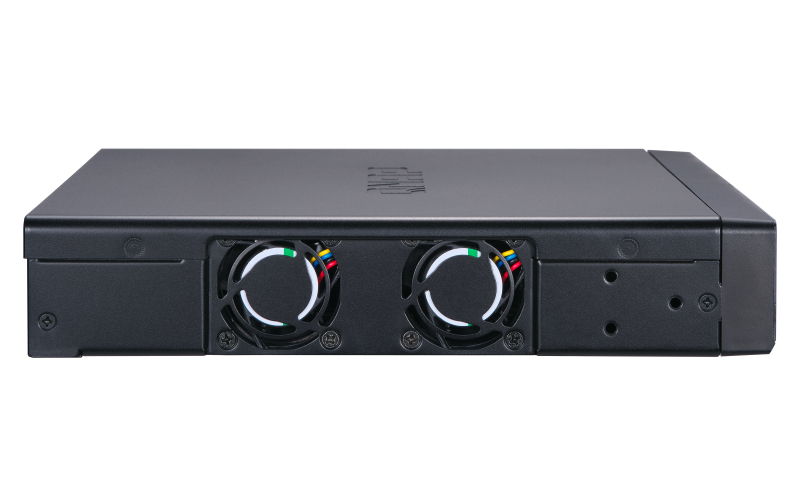

| Number of fans | 4 fan(s) |
| Electromagnetic compatibility | CLASS A |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 70 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 285 mm |
| Depth | 236.6 mm |
| Height | 46.6 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI, BSMI, RCM, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
