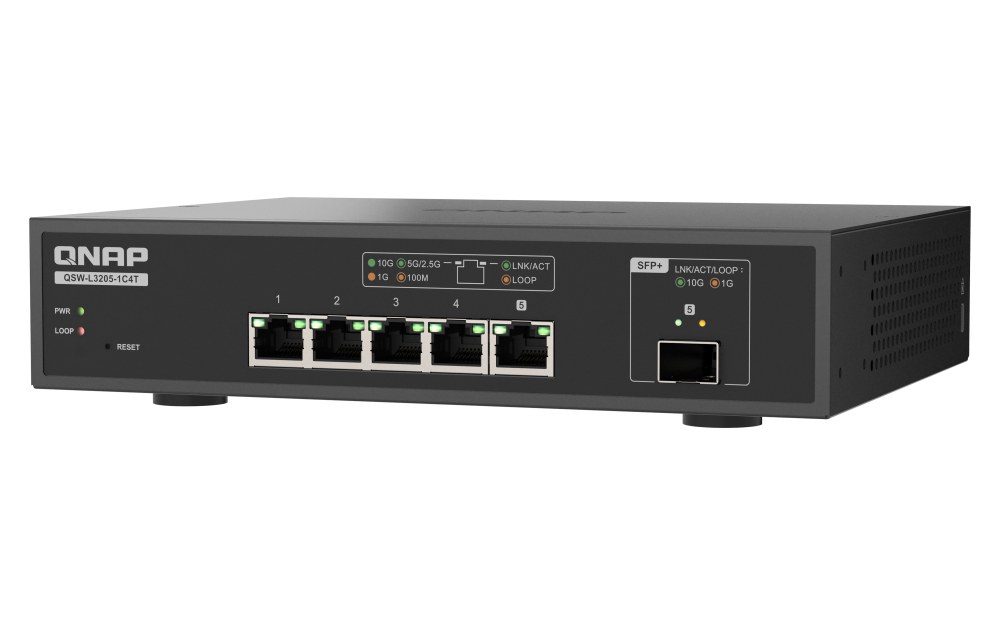

QSW-L3205-1C4T 4
Model QSW-L3205-1C4T 4Part no. QSW-L3205-1C4TEAN 885022028603
52 specifications
- TypeDesktop
- Weight1.17 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportYes
Overview
- Type
- Desktop
- Weight
- 1.17 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- Yes
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-L3205-1C4T 4
- Part number
- QSW-L3205-1C4T
- EAN / UPC
- 885022028603, 4711103086216
- Also known as
- QNAP QSW-L3205-1C4T 4 Managed 10G Ethernet (100/1000/10000) Desktop Black
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Combo SFP ports quantity | 1 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 100 Gbit/s |
| Throughput | 50 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 36 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 1.17 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 328 mm |
| Package depth | 216 mm |
| Package height | 61 mm |
| Package weight | 2.71 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Products per master (outer) case | 8 pc(s) |
