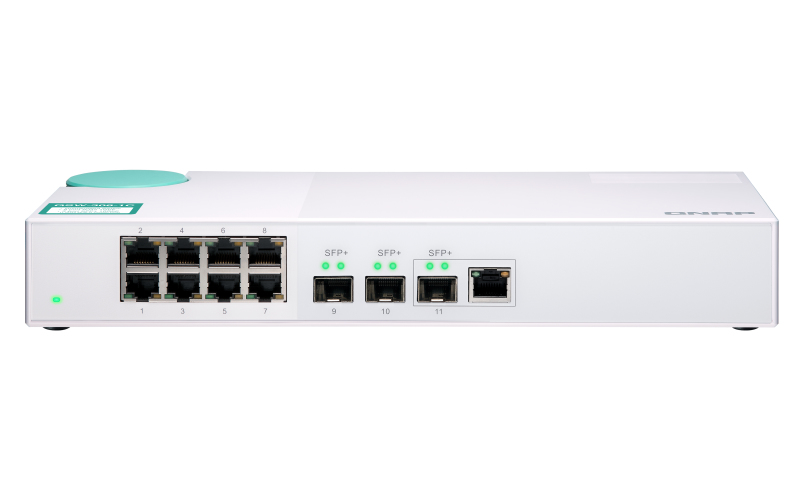

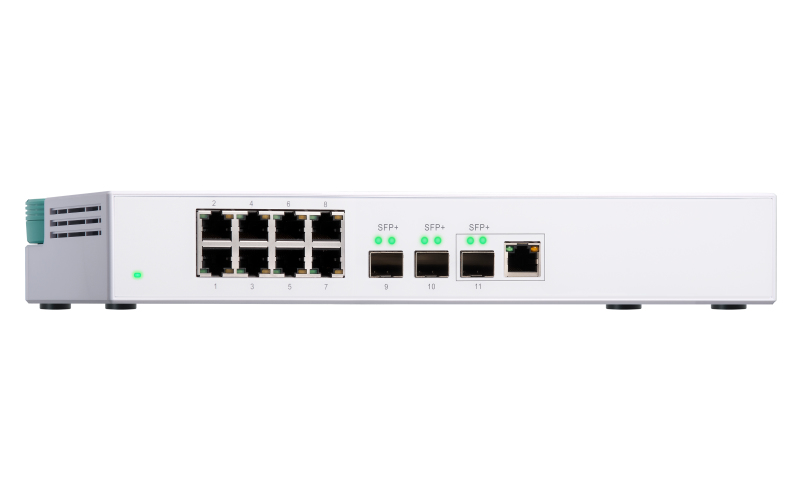

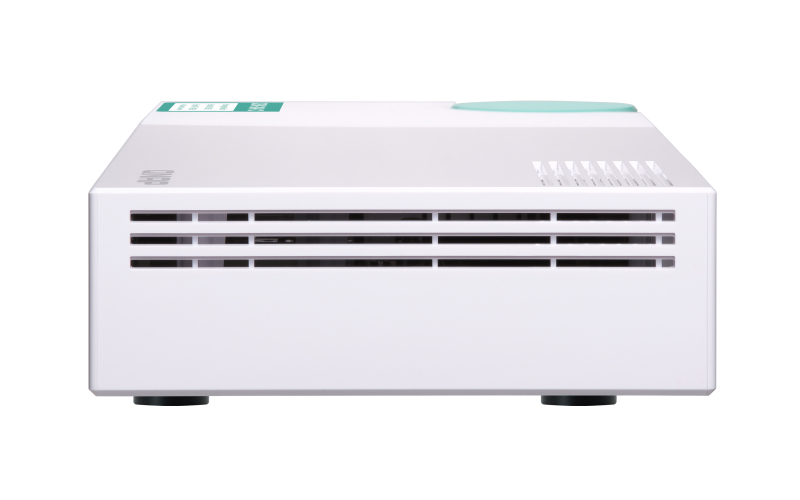

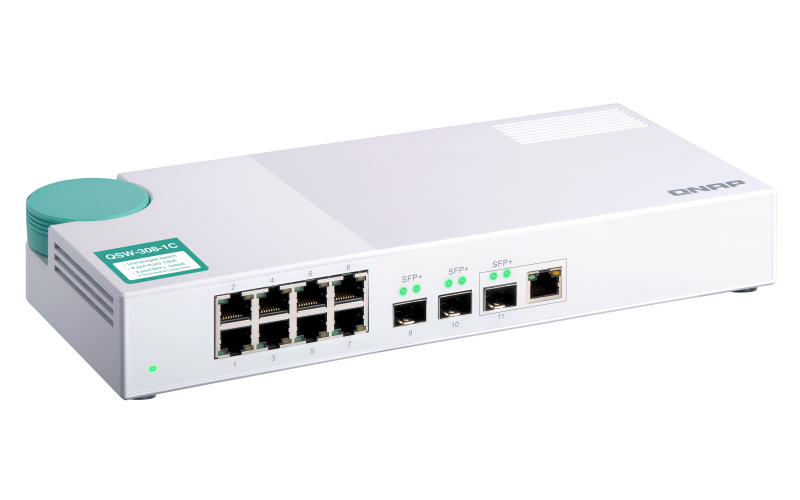

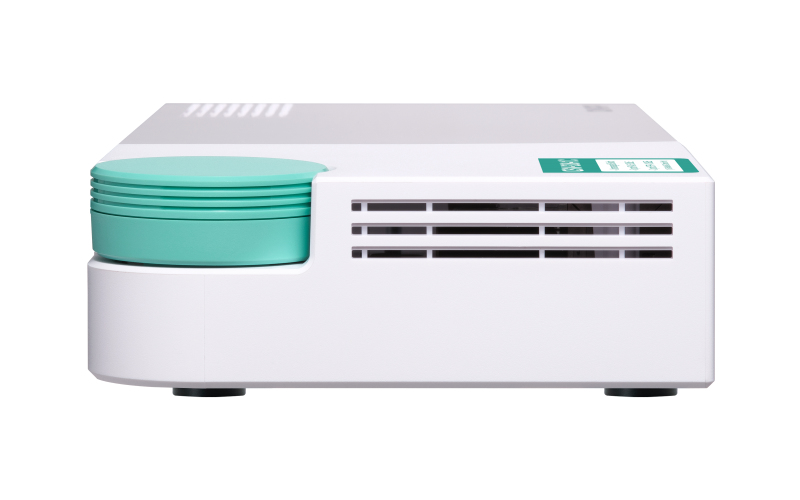

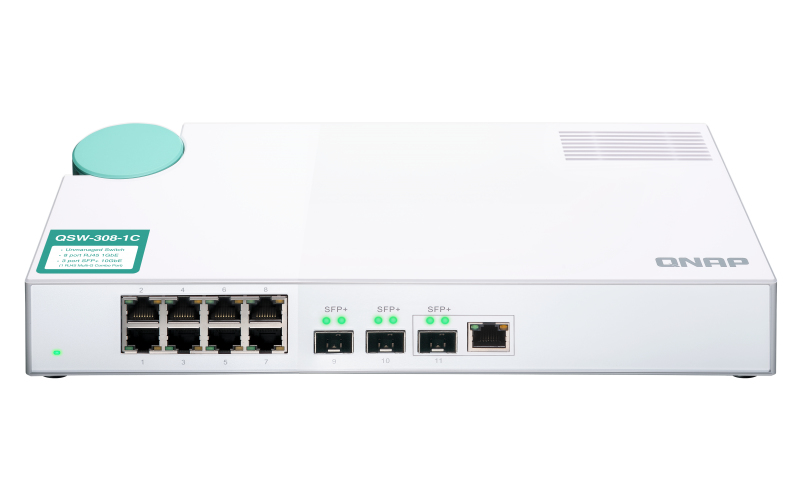

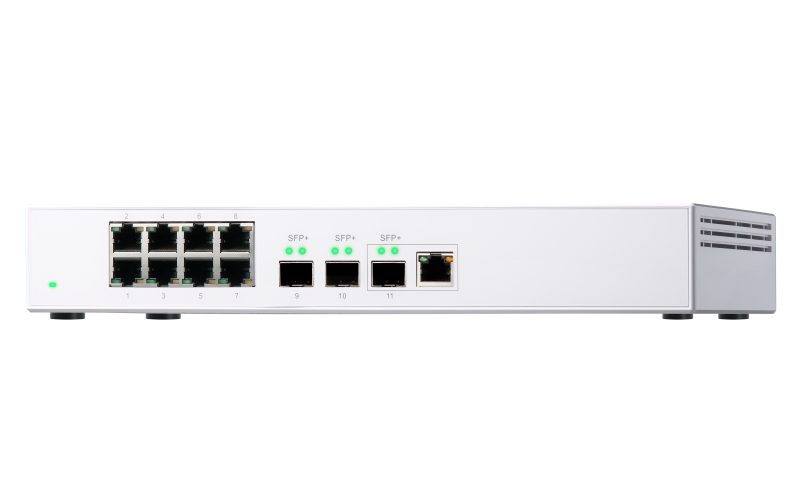

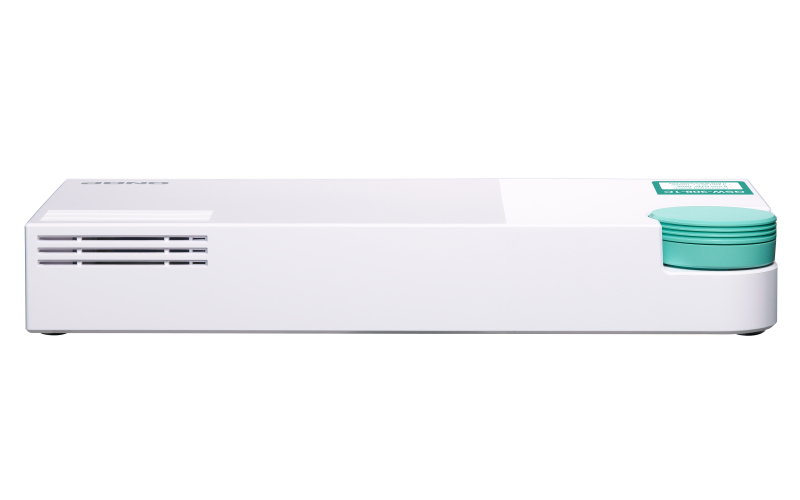

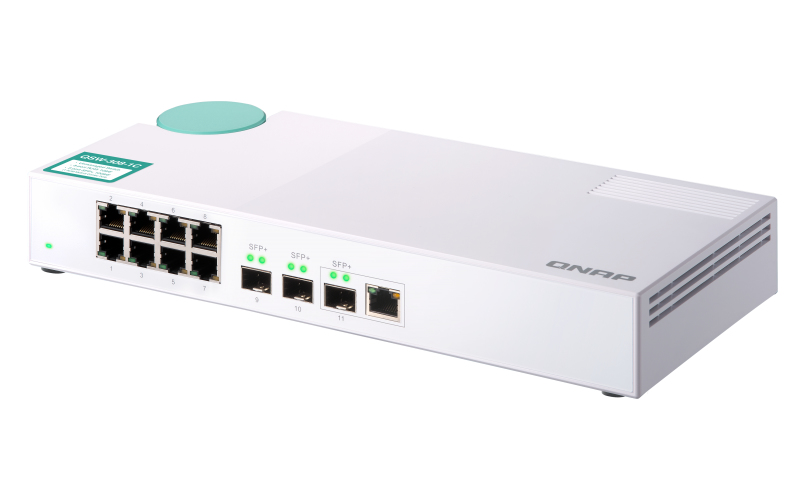

QSW-308-1C network switch Unmanaged Gigabit Ethernet (10/100/1000) White
Model QSW-308-1CEAN 885022017973
46 specifications
- Weight770 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table16000 entries
Overview
- Weight
- 770 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-308-1C
- Part number
- QSW-308-1C
- EAN / UPC
- 885022017973, 4713213516003
- Also known as
- QNAP QSW-308-1C network switch Unmanaged Gigabit Ethernet (10/100/1000) White
Specifications
46 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 1 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e, Cat6a, Cat6e, Cat7 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 76 Gbit/s |
| Throughput | 38 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| LED indicators | Activity, Link, Power, Speed, Status |
| Electromagnetic compatibility | CLASS B, UL62368 |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 127 mm |
| Height | 42.5 mm |
| Weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 315 mm |
| Package depth | 219 mm |
| Package height | 60 mm |
| Package weight | 1.19 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, BSMI RCM, CCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 8 pc(s) |
