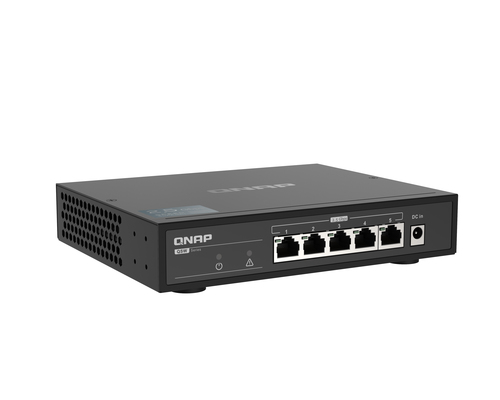

QSW-1105-5T network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model QSW-1105-5TEAN 885022019601
40 specifications
- Weight577 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 577 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- QNAP
- Category
- Network Switch
- Model
- QSW-1105-5T
- Part number
- QSW-1105-5T
- EAN / UPC
- 885022019601, 4713213517581
- Also known as
- QNAP QSW-1105-5T network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
40 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 2500 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Throughput | 12.5 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed, Status |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | Class B |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 12 V |
| Power consumption (max) | 12 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 145 mm |
| Height | 34 mm |
| Weight | 577 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 197 mm |
| Package depth | 150 mm |
| Package height | 68 mm |
| Package weight | 790 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 pc(s) |
